LSIS SV-iS7 series User Manual

Chapter 5 How to Use Keypad
5-2
2) Key Functions
Section Buttons Key Name Function Description
KEY
Mode Key - Change MODE
Program Key
- Write, change and save data in
parameter codes.
Up ke
y
- Used when writing data or move
codes.
Down
K
ey
Left/Right Key
- Movement among groups.
- Movement of cursor in writing.
Multi Function
Key
- Register Jog or User codes.
Cancel Key
- In writing, it is possible to use
saved data previously if press this
button before pressing Program
Key.
- Move to first code when code
moving is required in a group.
- Move to Monitor mode when
Mode moving.
Forward Key - Motor rotates Forward direction.
Reverse Key - Motor rotates Reverse direction.
Stop/Reset Key
- Stop Under operating.
- Trip release when a trip occurs.

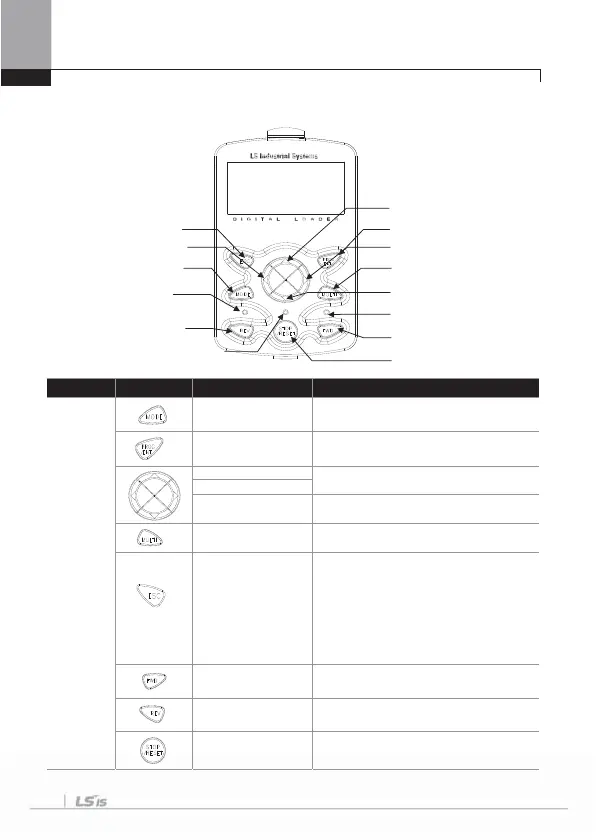

1. Cancel(ESC)
13. PROGRAM set
5. Reverse operation
3. MODE selection 11. Multi-Function
8. Forward operation
14. Move to UP
10. Move to down
12. Move to Right
2. Move to Left
4.Reverse operation
6. Stop Indication LED
7. STOP/RESET
9. Forward operation LED
