LSIS SV-iS7 series User Manual

Chapter 5 How to Use Keypad
5-11
5.1.5 Code (Function Item) shift
1) Code shift (function Items) in modes and groups
Using Up and Down keys: The following figures give an example of shifting the
code by using Up and Down keys in DRV and BAS of Parameter Mode. Code
shift in other modes are the same.

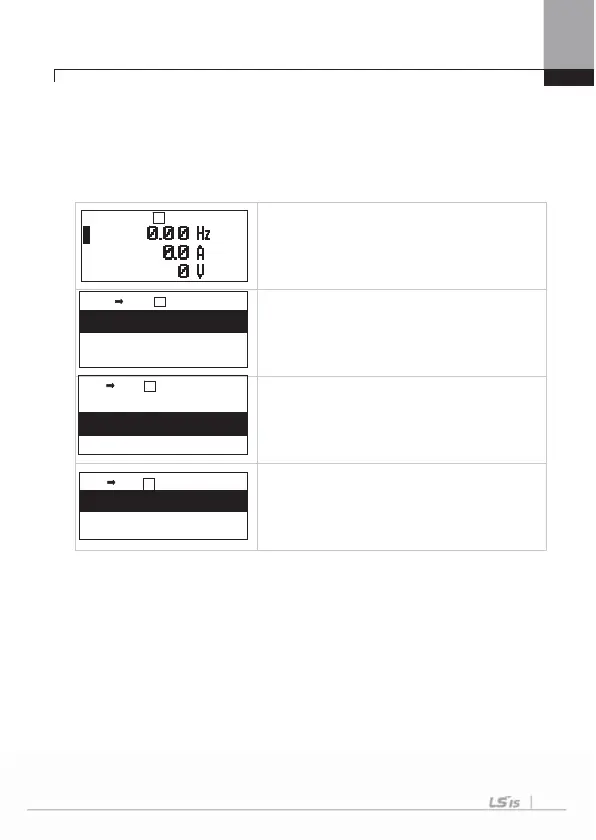

- Power on, the display emerges as on the
left. The present mode is Monitor Mode
(MON).
- Press Mode key once.
- The display shows DRV of Parameter Mode.
If DRV is not displayed, press Mode key
until DRV emerges or press ESC once.
- If you press Down key, you will shift to code
No. 0 in DRV of Parameter Mode as shown
on the left.
- Press Right key once.
- You shift to BAS of Parameter Mode.
- You can shift the code by using Up or Down
key.
PAR
G
BAS N STP 0.00Hz
00 Jump Code
20 CODE
01 Aux Ref Src
None
04 Cmd 2nd Src
Fx/Rx-1
PAR
G
DRV N STP 0.00Hz
00 Jump Code
9 CODE
01 Cmd Frequency
0.00 Hz
02 Acc Time
20.0 sec
01
C
m
d
F
requency
0.00 Hz
PAR
G
DRV N STP 0.00Hz
00 Jump Code
9 CODE
01 Cmd Frequency
0.00 Hz
02 Acc Time
20.0 sec
00 Jump Code
1 CODE
MON T/K N STP 0.00Hz
