Chapter 6. Panel Editor
6-24
(3) N:1 Configuration
Specifies the communication setting when the configuration should be set as N:1 where several XGT Panels are set
to be a multi-master so to monitor one slave.
(A) Communication Mode, HMI Station and Timeout should be set identical to the 1:1 configuration.
(B) For example, if each Station No. of 3 masters is 0, 1 and 2 respectively, and the Station No. of one slave is 3,
setting for each master will be as follows.
(C) Communication Mode, HMI Station and Timeout should be set identical to the 1:1 configuration.

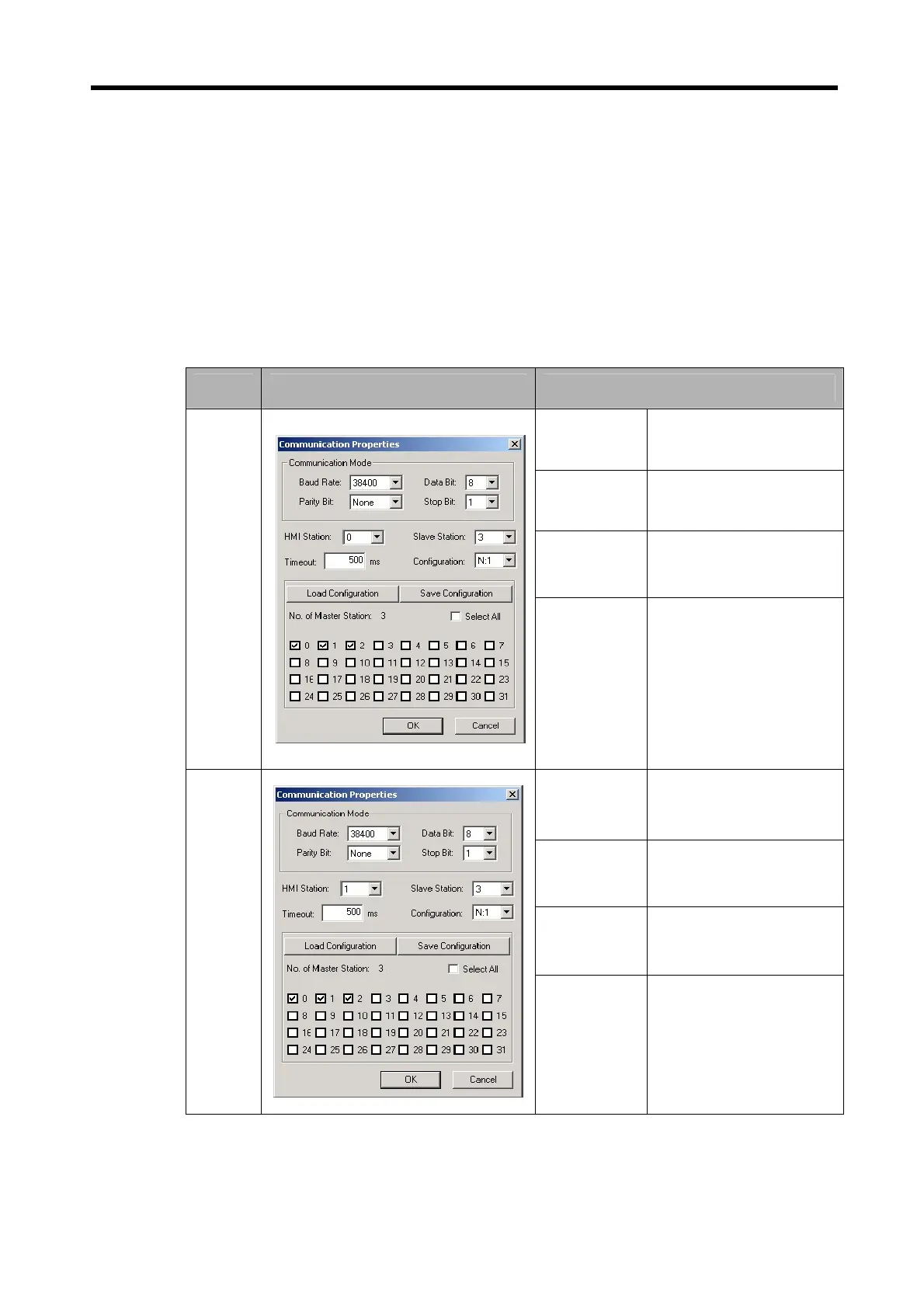

Station Setting Screen Setting Contents
HMI Station To be set 0
Slave Station To be set 3
Configuration To be set N:1
Station 0
Master Station
Let all the master station
numbers be checked which
configure the communication
system. (0,1,2)
HMI Station To be set as 1
Slave Station To be set as 3
Configuration To be set as N:1
Station 1
Master Station
Let all the master station
numbers be checked which
configure the communication
system. (0,1,2)
