A SONET Overview
Issue 3 June 2000
A-17

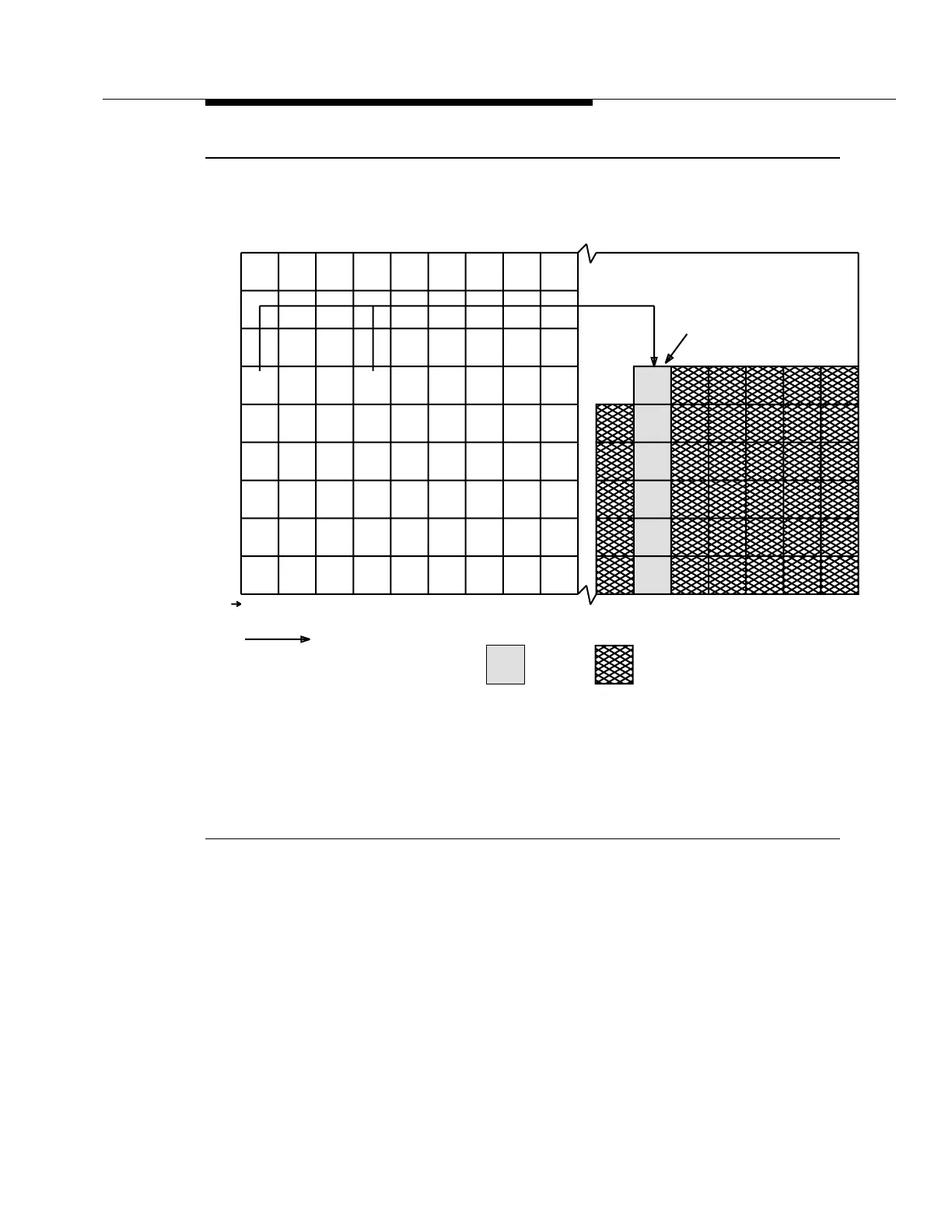

Figure A-10. STS-3c Concatenated Payload
J1
B3
C2
G1
F2
H4
12 312 312 3 12 312 33
H1 C C H2 C C H3 H3 H3
PayLoad Pointer
Transport Overhead
3 x 87 Columns STS-3c Payload
STS-3c POH
STS-1 #
Time
Path OverHead Byte PayLoad Byte
Concatenation Byte
Pointer Byte
Stuff Byte
C
H1,H2
H3
125 µs
