363-206-305
Operations Interfaces
Issue 3 June 2000
6-9

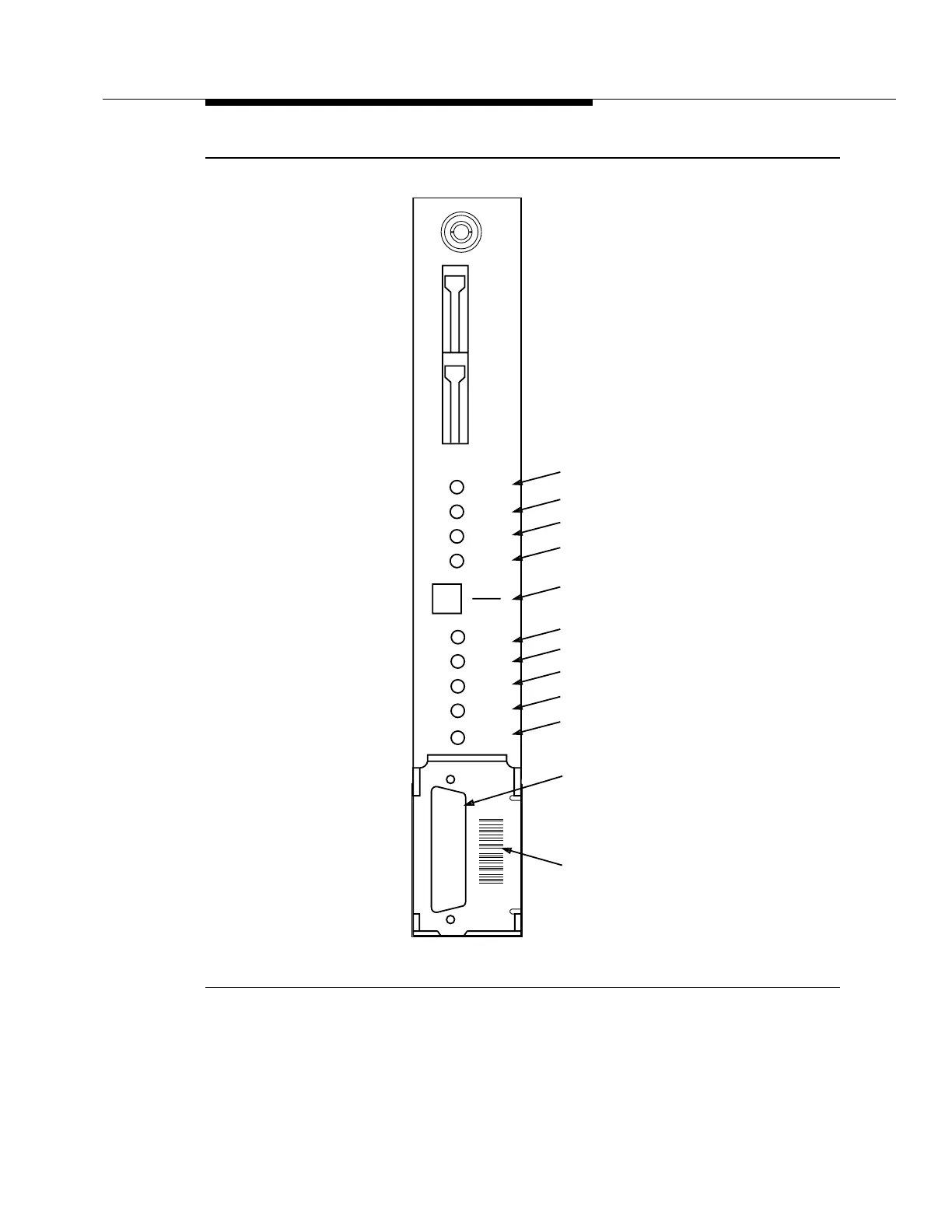

Figure 6-4. FiberReach Multiplexer User Panel
Critical Alarm
Major Alarm
Minor Alarm
Power Minor Alarm
ACO/LED Test
Power A
Power B
Abnormal
Near-End Activity
Far-End Activity
Craft Interface
Terminal
Connector
CR
PMN
MN
MJ
ABN
A
B
NE
ACTY
FE
ACTY
PWR
ON
ACO
TEST
FA
3A
60
VDC
FB
3A
60
VDC
C
I
T
Bar Code
Label
ECC2
