Shelf Descriptions and Configurations
Issue 3 June 2000
3-9
DDM-2000 FiberReach Multiplexer Carrier
Assembly
3
For rack-mounted applications, the DDM-2000 FiberReach Multiplexer is available
in a carrier assembly, as shown in Figure 3-10. This carrier assembly provides
space for up to two wideband shelves, or one wideband and one narrowband
shelf, or two narrowband shelves. Two electrostatic discharge (ESD) jacks are
mounted on the carrier frame.
Table 3-11 shows FiberReach carrier assembly group configurations.

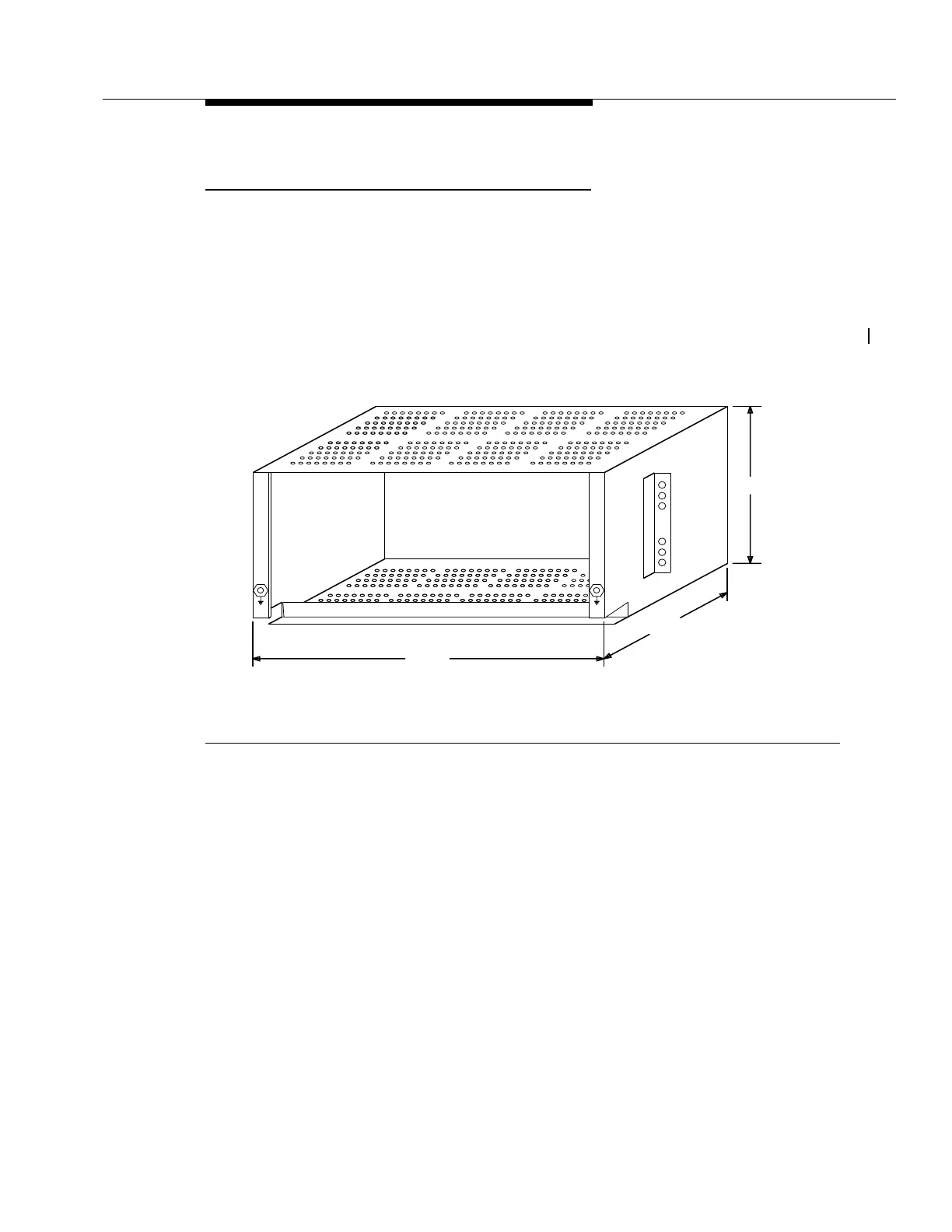

Figure 3-10. DDM-2000 FiberReach Multiplexer Carrier Assembly
ESD ESD
21.250"
12.958"
9.779"
tpa 843675/01
