363-206-305

Technical Specifications

Issue 3 June 2000

10-9

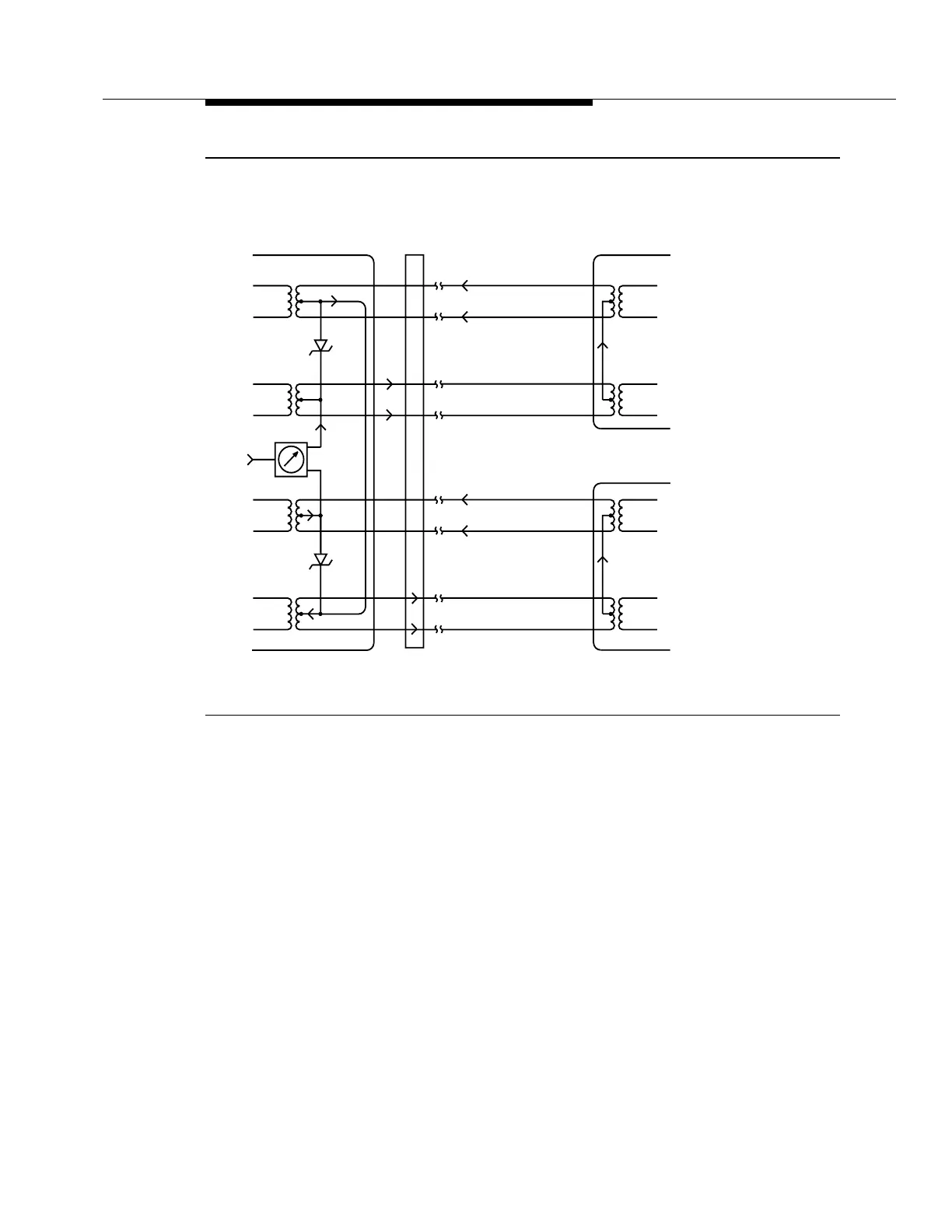

Figure 10-1. T1EXT Span Powering

DDM-2000

T1 EXT

Looping Type

Repeater or CSU

14V

-48V

60 MA

14V

Looping Type

Repeater or CSU

Notes:

1. The arrow indicates direction

of simplex current flow when

both loops are equipped with

looping type repeater or CSU

2. Each loop is powered with

14V, 60 MA source

Lightning

Protection

Loop 1

Loop 2
