363-206-305
Maintenance Description
9-18
Issue 3 June 2000
Single-Homed Interworking Application
9
Figure 9-7 shows a single-homed FiberReach configuration. A single DDM-2000
OC-3 shelf provides the point of interconnection between the two rings. On the
OC-3 shelf, traffic from one ring is cross-connected through a 0x1 interface to one
direction on the other ring. The OC-3 shelf requires two OC-1 OLIUs in a function
unit to interface both sides of the FiberReach ring. No line or path protection
switching is performed for the 0x1 interface. Path protection switching is
performed at the exit points as in the simple ring application previously discussed.

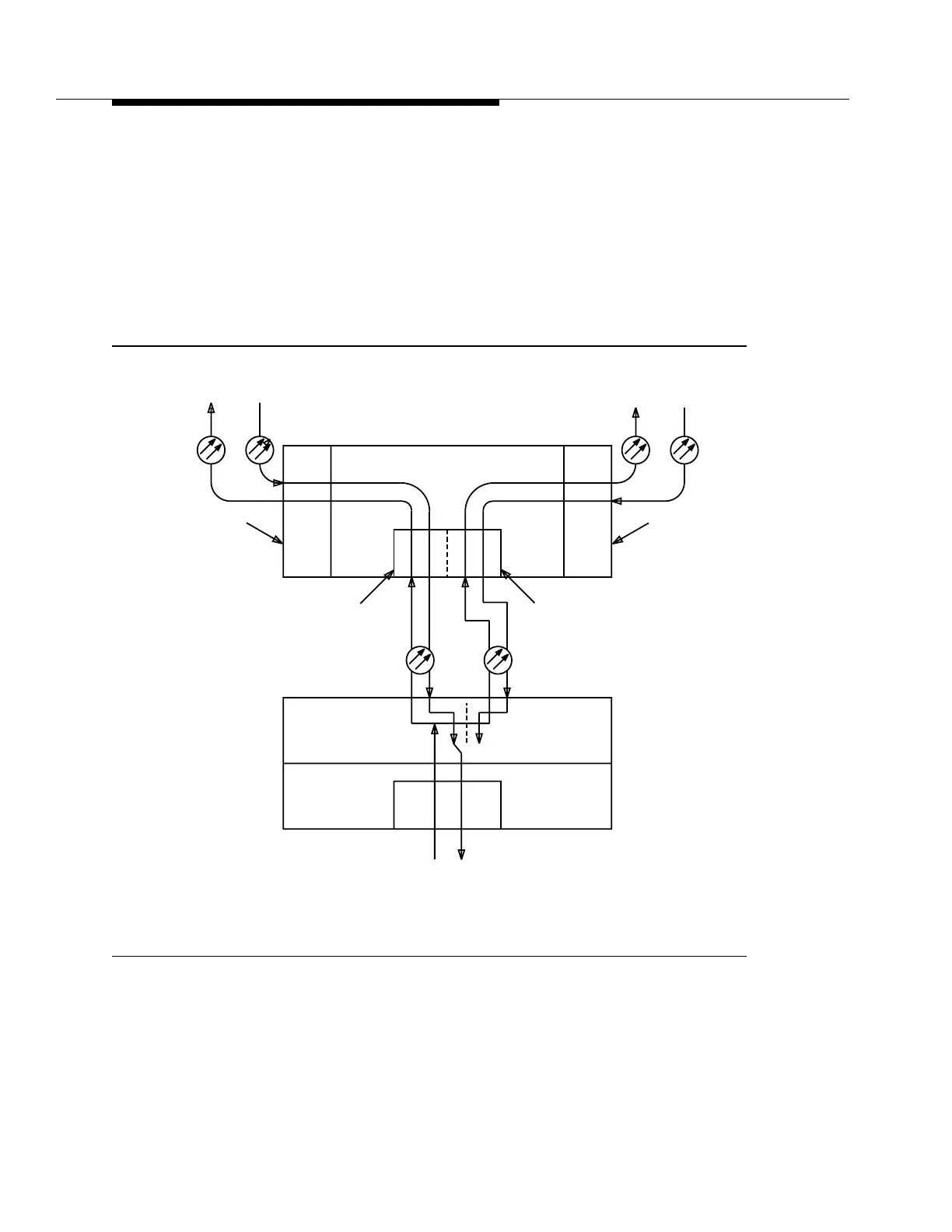

Figure 9-7. Single-Homed Ring Interworking Application
O
L
I
U
O
L
I
U
Main-1
Main-2
FN ( )-1 FN ( )-2
27G-U
OLIUs
DS1
DDM-2000
Fiber Reach
Shelf
OC-1
OC-1
DDM-2000
OC-3 Shelf
tpa 852352/01
26G2-U OLIU
26G2-U OLIU
Ring
2
Ring
1
Ring
1
Ring
2
Main -1
Main -2
