363-206-305
Shelf Descriptions and Configurations
3-8
Issue 3 June 2000

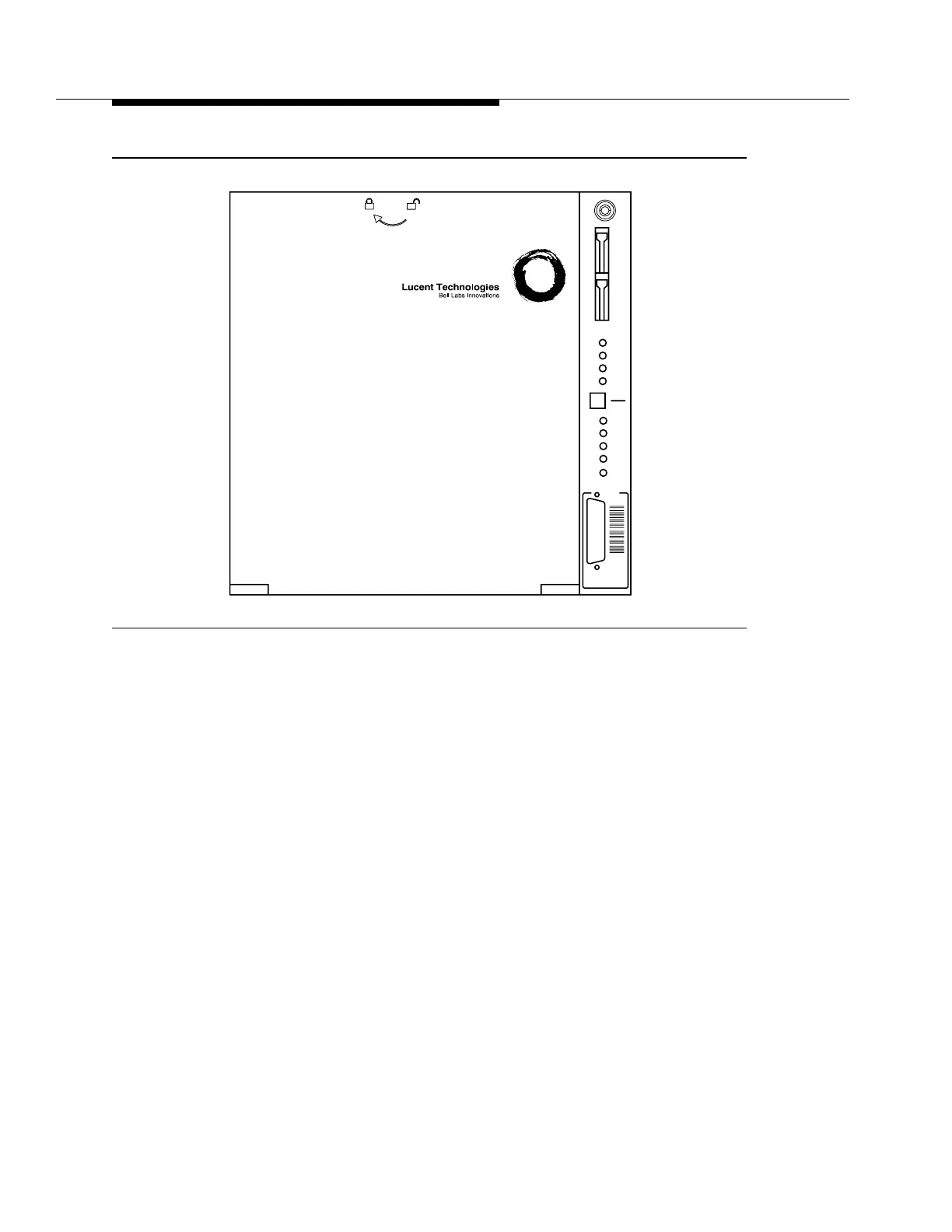

Figure 3-9. DDM-2000 FiberReach Multiplexer Wideband Shelf Front Panel
CR
PMN
MN
MJ
ABN
A
B
NE
ACTY
FE
ACTY
PWR
ON
ACO
TEST
FA
3A
60
VDC
FB
3A
60
VDC
DDM-2000 FiberReach
Wideband Shelf
ECC2
