Lucent Technologies FiberReach DDM-2000 User Manual

363-206-305
Shelf Descriptions and Configurations
Issue 3 June 2000
3-13
■
WBS and
SLC LineReach
Access System in Wall DT (with dual DSX
cross-connect) (ED8C843-31, G53, Comcode 601925969)
■
WBS and
SLC LineReach
Access System in Wall DT (no DSX cross-
connect) (ED8C843-31, G53, Comcode 601925969)

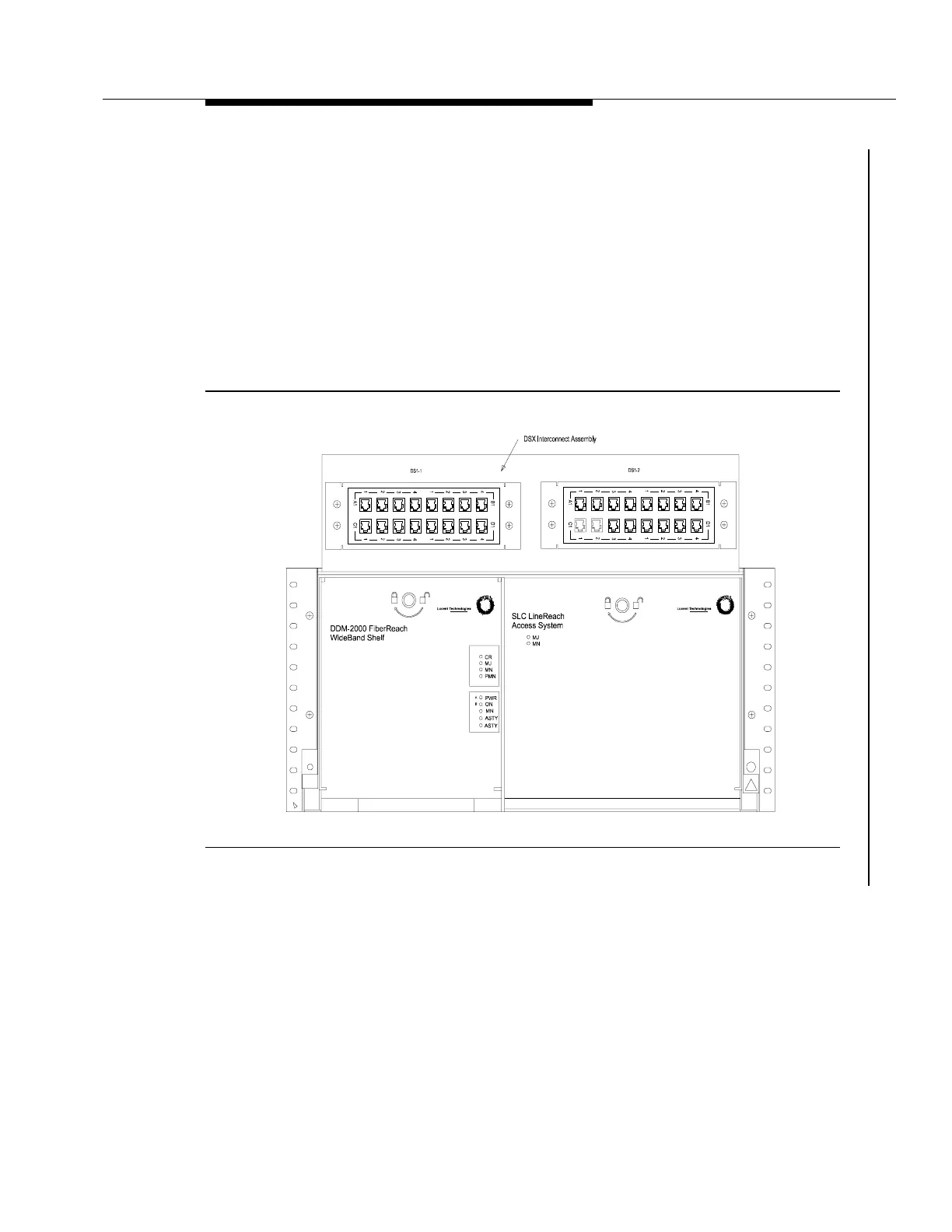

Figure 3-14 shows the configuration for a Wall Mount DT containing a
SLC
LineReach
Access System and DDM-2000 FiberReach wideband shelf. The Wall
Mount DT also comes with a dual DSX cross-connect. Each DSX panel supports
up to 16 DS1 circuit packs, so two DSX panels are needed to support 28 DS1s.
One DSX panel (DS1-1) receives 16 DS1s from the WBS while the other DSX
panel (DS1-2) receives 12 DS1s.
Figure 3-14. Wall Mount Distant Terminal with SLC LineReach Shelf and DDM-2000
FiberReach Wideband Shelf
