Figure 3-13 shows a Wall Distant Terminal equipped with one wideband and one
narrowband shelf, two DSX panels, and an
LGX
panel. The enclosure is
approximately 23 inches wide by 11 inches high by 13.4 inches deep.

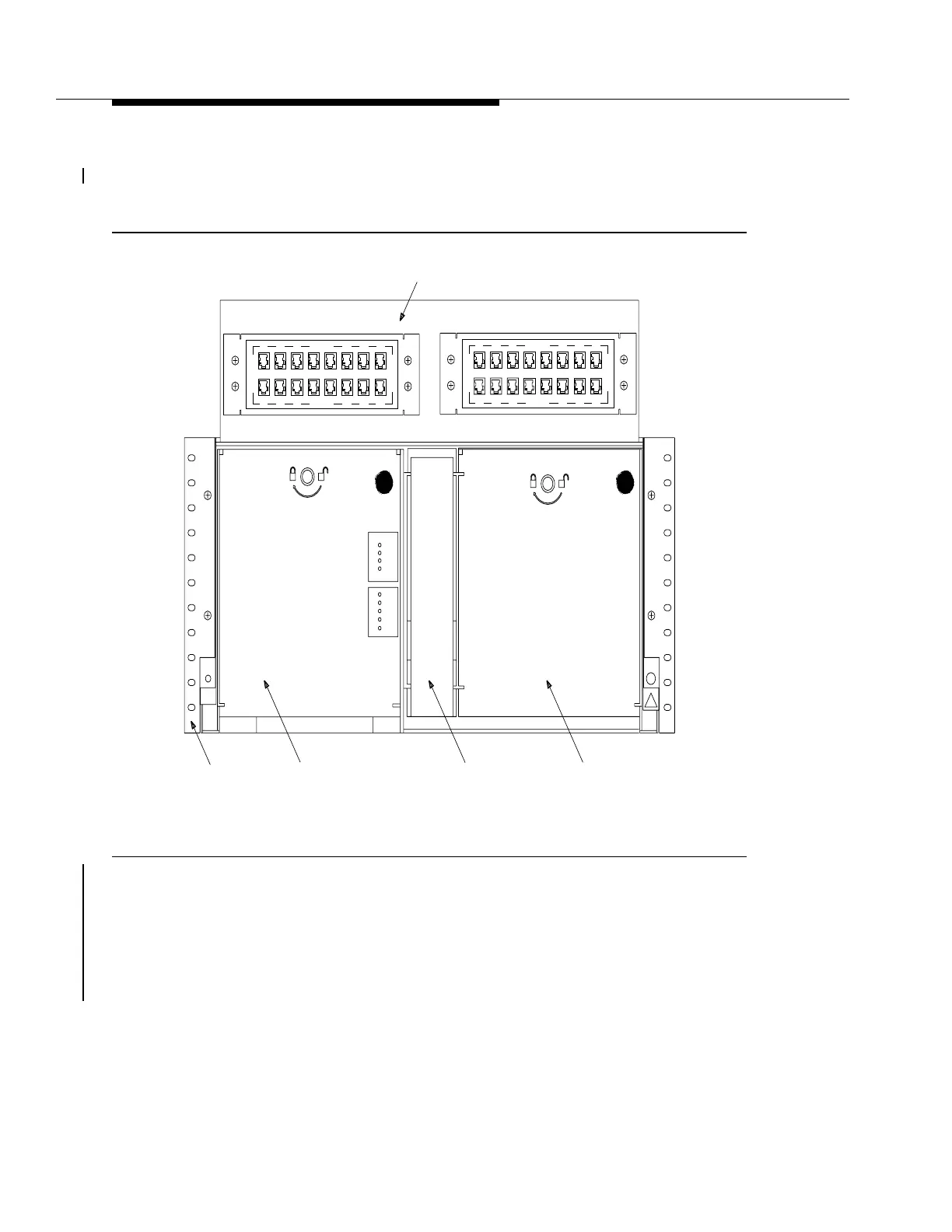

Figure 3-13. DDM-2000 FiberReach Wall Mount Distant Terminal
The Wall Mount Distant Terminal can also accommodate a single
LineReach
shelf
and one DDM-2000 FiberReach wideband shelf. The
SLC LineReach
Access
System comes in three preassembled configurations for the Wall Mount DT:
â–
SLC LineReach
Access System in Wall DT (no DSX cross-connect)
(ED8C843-31 G50, Comcode 601923634)
1
2
3
4
4
3
2
1
A1
B1
C1
D1
1
2
3
4
1
2
3
4
1
2
3
4
4
3
2
1
A1
B1
C1
D1
1
2
3
4
1
2
3
4
DS1-1
DS1-2
DDM-2000 FiberReach
Wall Distant Terminal
PWR
ON
MIN
ASTY
ASTY
A
B
DDM-2000 FiberReach
Wall Distant Terminal
Lucent Technologies
Bell Labs Innovations
Lucent Technologies
Bell Labs Innovations
tpa 851643/01
FiberReach Wideband
Shelf Assembly
Mounting
Brackets
LGX Panel
FiberReach Narrowband
Shelf Assembly
DSX Interconnect Assembly
