Lucent Technologies FiberReach DDM-2000 - Intelligent Vehicle Highway System (IVHS) Application

363-206-305
Applications
Issue 3 June 2000
2-63

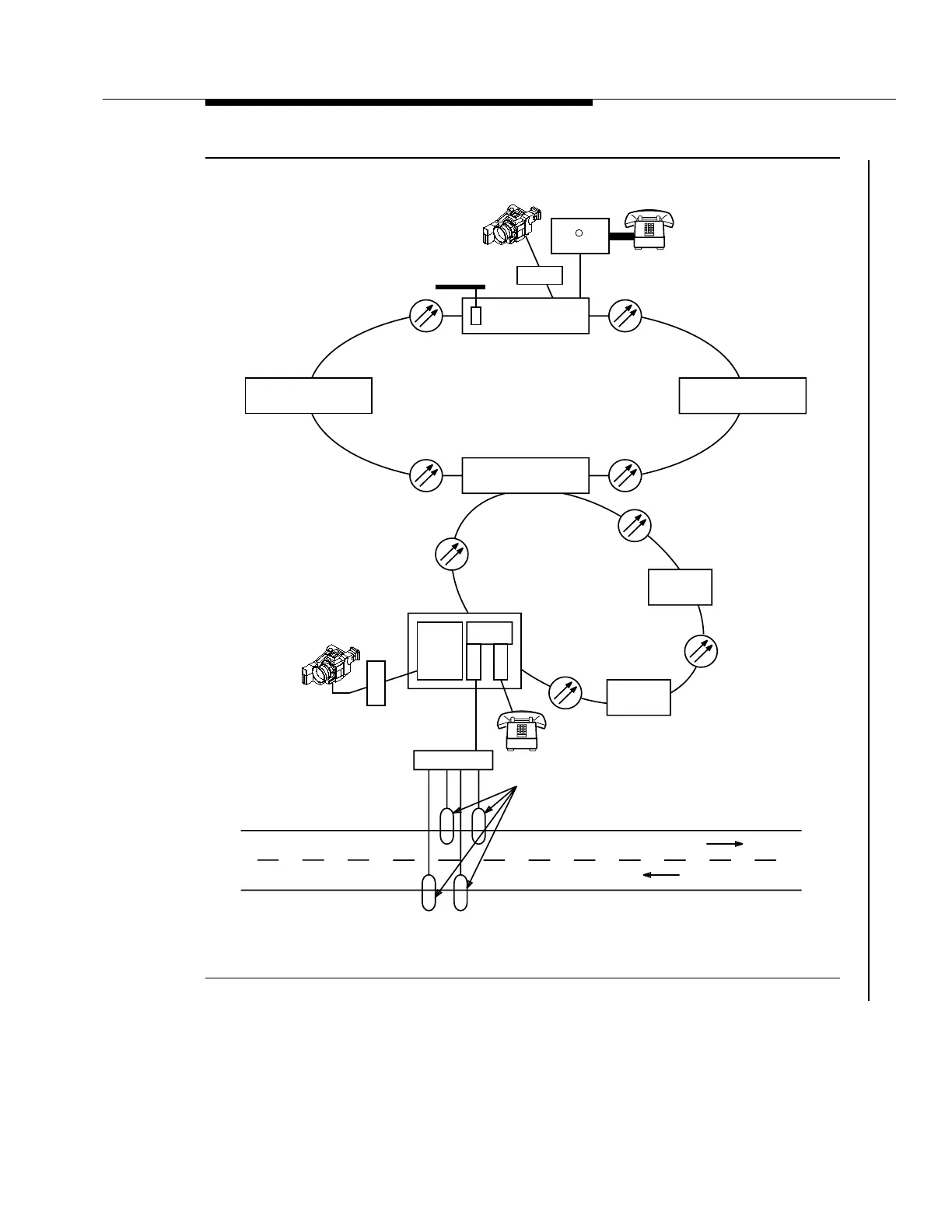

Figure 2-47. Intelligent Vehicle Highway System (IVHS) Application
Local Controller
DDM-2000 OC-3
DDM-2000 OC-3
DDM-2000
OC-3
CODEC
Video
LAN
DDM-2000 OC-3
Roadside Hub
Roadside Hub Roadside Hub
Traffic Operations Center
OC-3 Ring
NBS
WBS
CU
Data
Highway
DDM-2000
FiberReach
DDM-2000
FiberReach
Access
Cabinet
Access
Cabinet
Access
Cabinet
Sensors
CODEC
OC-1 Ring
DDM2000 FiberReach
Video
R
SLC
2000
tpa 843632/01
