Lucent Technologies FiberReach DDM-2000 - Path Switched Ring Using DDM-2000; Multiplexers with OC-12 Optics

363-206-305
Applications
2-8
Issue 3 June 2000

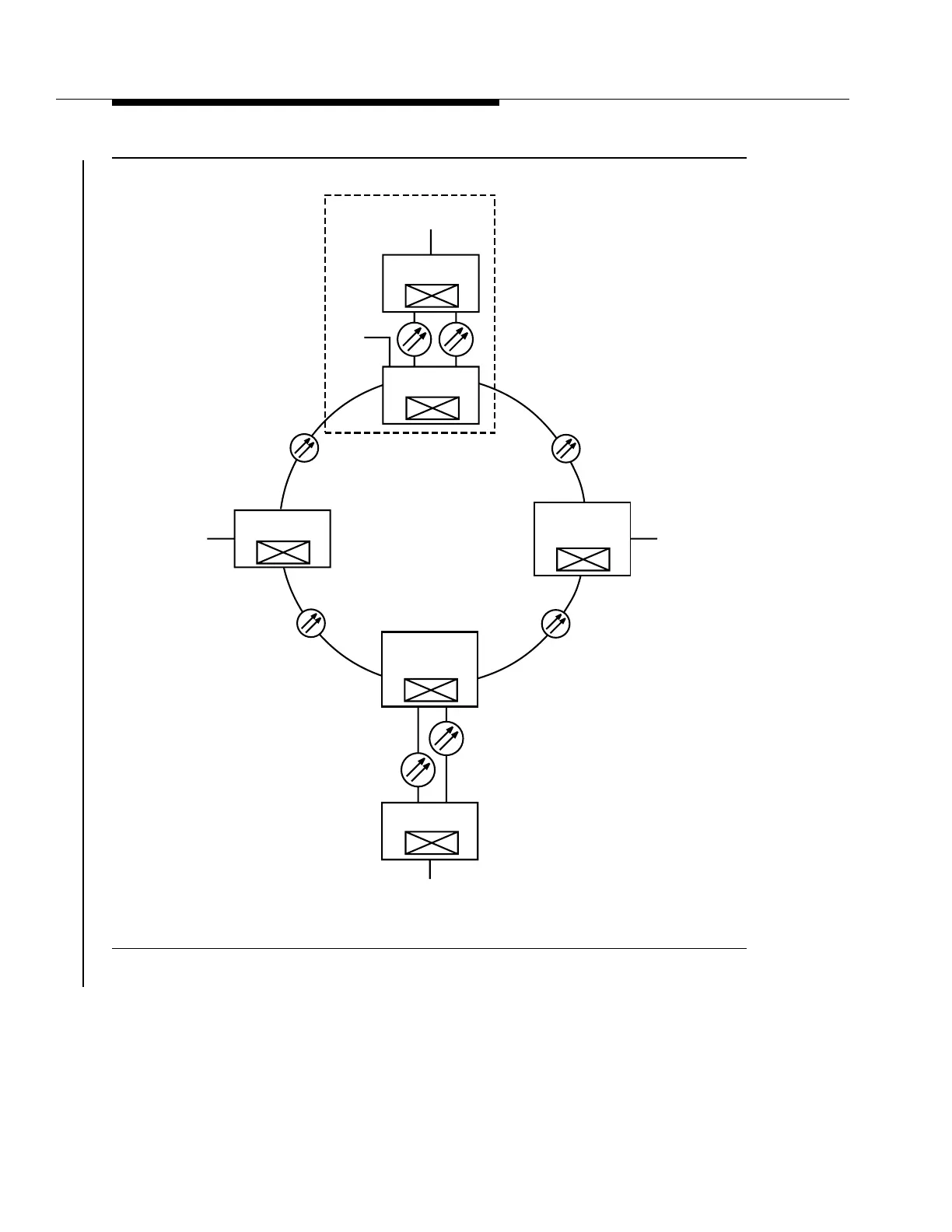

Figure 2-3. OC-12 Path Switched Ring Using DDM-2000 OC-12, OC-3, and FiberReach
Multiplexers With OC-12 Optics
CO
OC-12
OC-12
OC-12
OC-12
tpa852606-01
DS1
T1
OC-1
DS3
OC-3c
DS3
EC-1
OC-3c
DDM-2000
OC-3
DDM-2000
OC-12
DDM-2000
OC-12
DDM-2000
FiberReach
DDM-2000
OC-3 with
OC-12 optics
DS1
T1
DDM-2000
FiberReach
OC-12
