Lucent Technologies FiberReach DDM-2000 - Optical System Interfaces (Points S and R)

363-206-305
Technical Specifications
Issue 3 June 2000
10-23

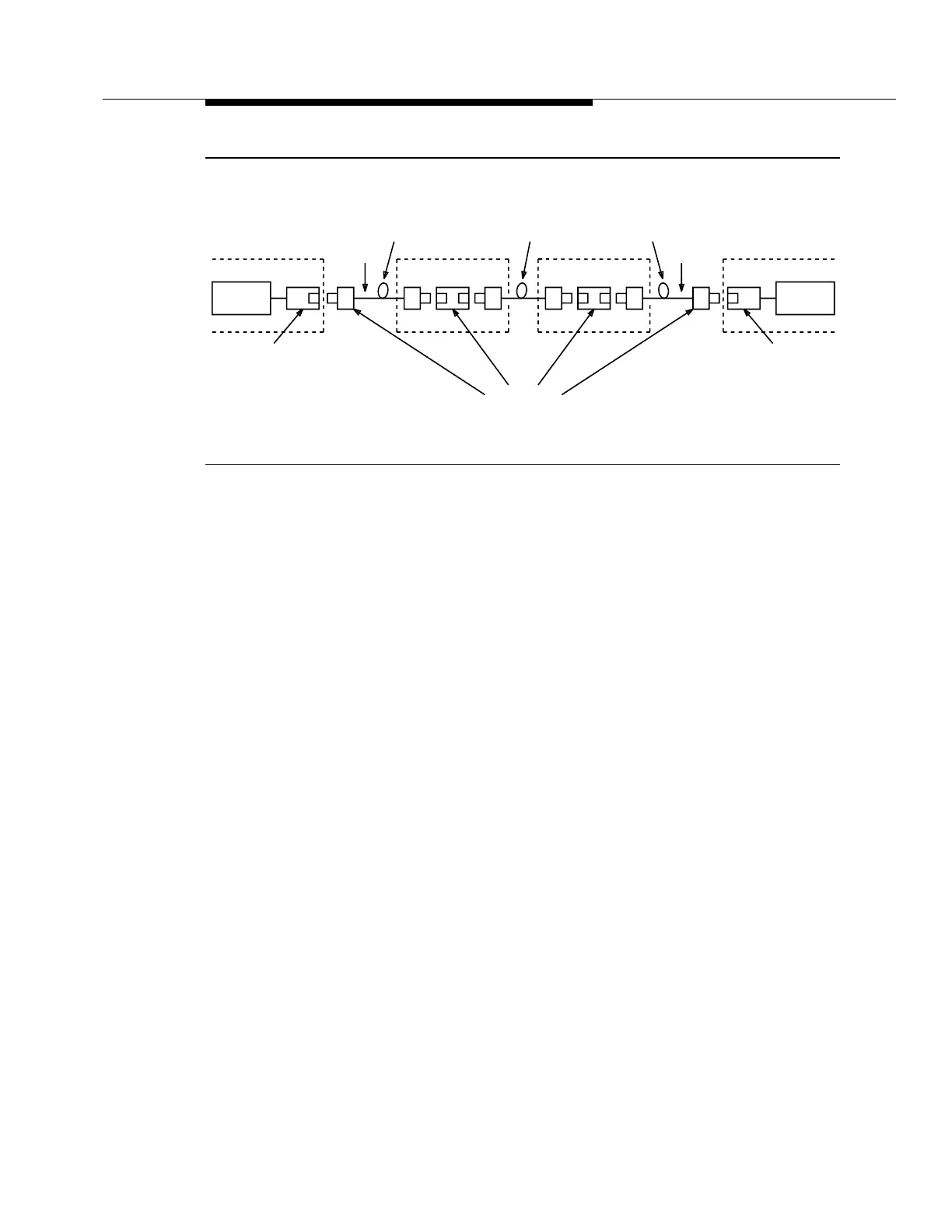

Figure 10-2. Optical System Interfaces (Points S and R)
OLIU
Point S
Transmitter
(Tx)
Transmitter/Connector
Assembly
Station Cable
Fiber
Crossconnect
Fiber
Crossconnect
Outside Plant Cable
Connections
OLIU
(Rx)
Assembly
Station Cable
Receiver
Receiver/Connector
Point R
