Lucent Technologies FiberReach DDM-2000 - Page 1148

NTP-009
: System Turnup 363-206-305
Page 12 of 14 Issue 3, June 2000
DDM-2000 F
IBER
R
EACH
W
IDEBAND
S
HELF

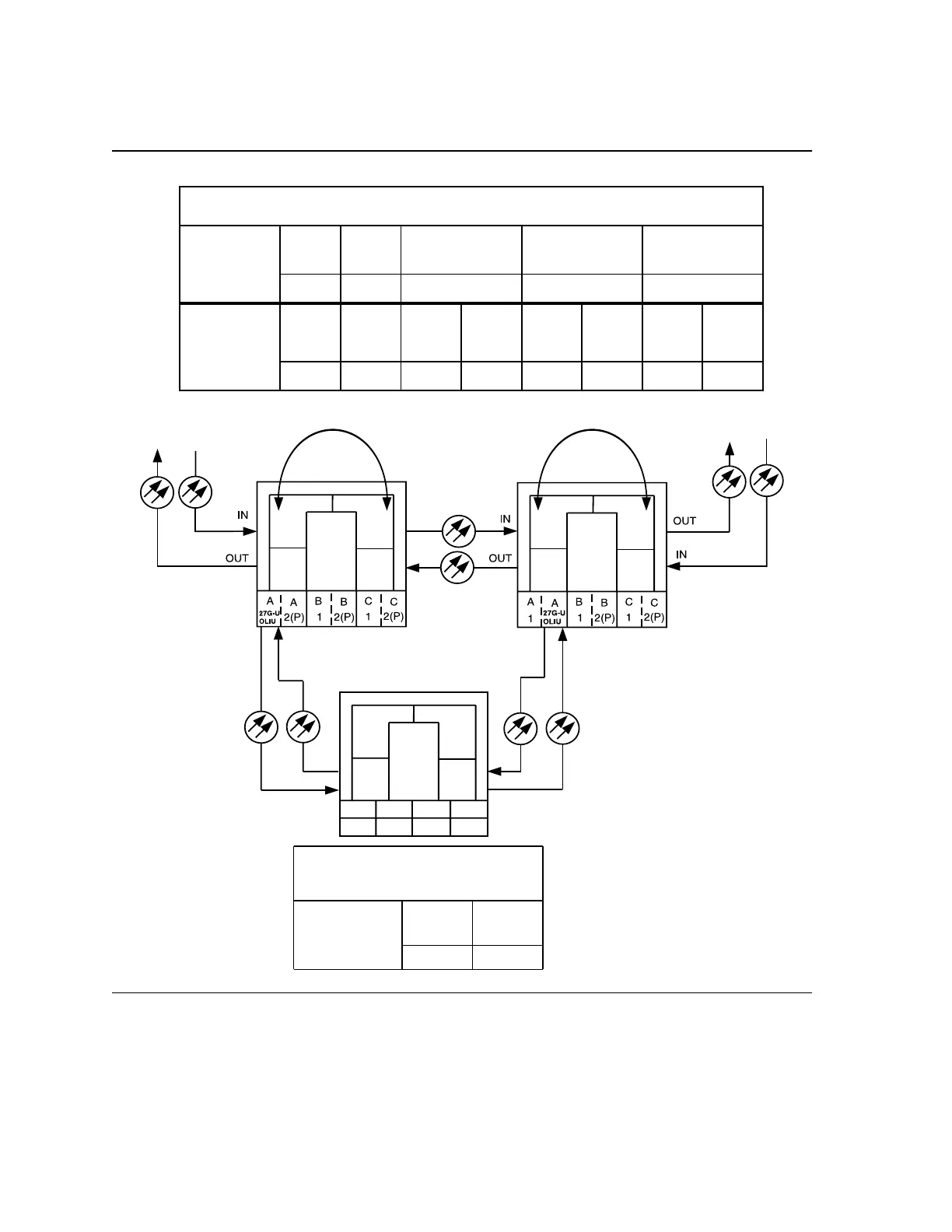

Figure 6 – Example of User Side/Network Side Value Settings (OC-12 Ring)
OC-12
OC-12
OC-12
DDM-2000 OC-12
DCC Network Side (NS)/User Side (US) Defaults (set-fecom:nsus=ns/us)
24/29-Type
OLIUs
MAIN-1 MAIN-2 FN-A FN-B FN-C
US NS
MAIN-1 MAIN-2
FN-A-1 FN-A-2 FN-B-1 FN-B-2 FN-C-1 FN-C-2
dcc-m1 dcc-m2
NS NS NS
27-Type OLIUs
US NS
dcc-m1-1 dcc-m2-1
dcc-m1-2 dcc-m2-2
dcc-a1-1 dcc-a2-1
dcc-a1-2 dcc-a2-2
dcc-b1-1 dcc-b2-1
dcc-b1-2 dcc-b2-2
dcc-c1-1 dcc-c2-1
dcc-c1-2 dcc-c2-2
NS US NS US NS US
dcc-a dcc-b dcc-c
MAIN 1
MAIN 2
MAIN 1
MAIN 2
OC-12 Path Switched Ring with
OC-3 Shelves with OC-12 Optics
Node 5
DDM-2000
OC-12
Node 4
DDM-2000
OC-12
Faceplate Connector
PassesThrough
Undropped STSs
OC-1 OC-1
MAIN 1
MAIN 2
LS-A-1
LS-A-2
LS-B-1
LS-B-2
LS-C-1
LS-C-2
LS-D-1
LS-D-2
DDM-2000 FiberReach
Node 7
MAIN-1 MAIN-2
US
US
USUS
NS
NS
NSNS
(NS) (US)
dcc-m1 dcc-m2
DDM-2000 FiberReach OC-1 DCC
Network Side (NS)/User Side (US)
Defaults (set-fecom:nsus=ns/us)
26-Type OLIUs
