363-206-305
Applications
Issue 3 June 2000
2-33
FiberReach shelves. Application for business customers, the private network, cell
sites, PBXs, customer premises equipment (CPE), and other applications are
supported.
The BBF8 circuit pack fits into the low-speed slots and provides two, four-wire
HDSL interfaces. Each interface provides a full DS1 rate payload capacity
mapped to a SONET VT1.5 and then VT cross-connected into an STS-1. Once in
SONET, DS1 rate payload is treated as a normal DS1.

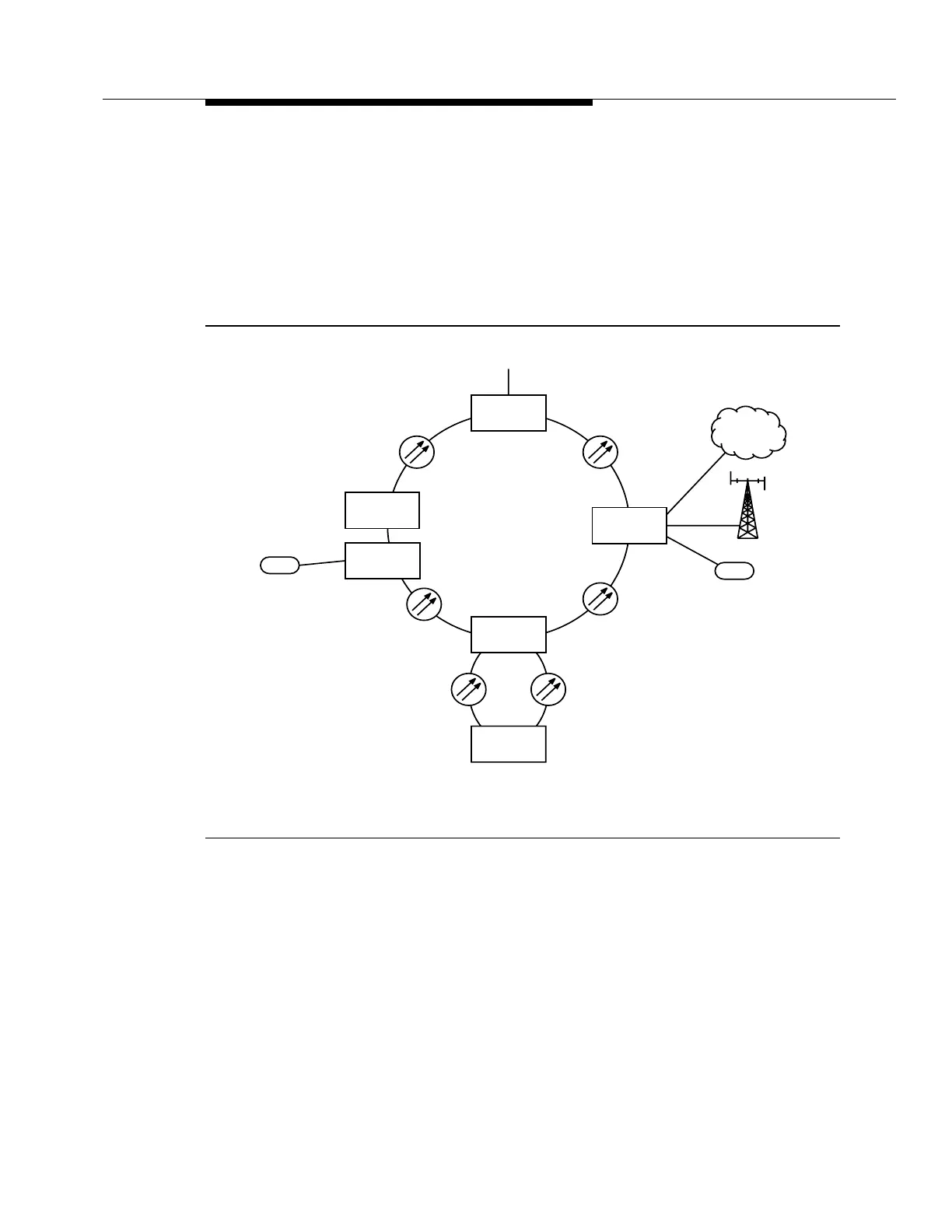

Figure 2-23. HDSL Application
DDM-2000
OC-3
DDM-2000
OC-3
tpa 852380/01
OC-3/12
Path Switched Ring
DDM-2000
OC-3
DDM-2000
OC-3
Network
Interface
CPE
DDM-2000
FiberReach
HDSL
HDSL
HDSL
Cell
Site
OC-1
DDM-2000
FiberReach
HDSL
CPE
DS1
Central Office
To Next Page
