BBG19 DS3 Hardware Settings
7
The location of the BBG19 DS3 circuit pack LBO jumpers is shown in Figure 7-21.
The BBG19 DS3 LBO settings are shown in the table.
BBG19 DS3 LBO Settings

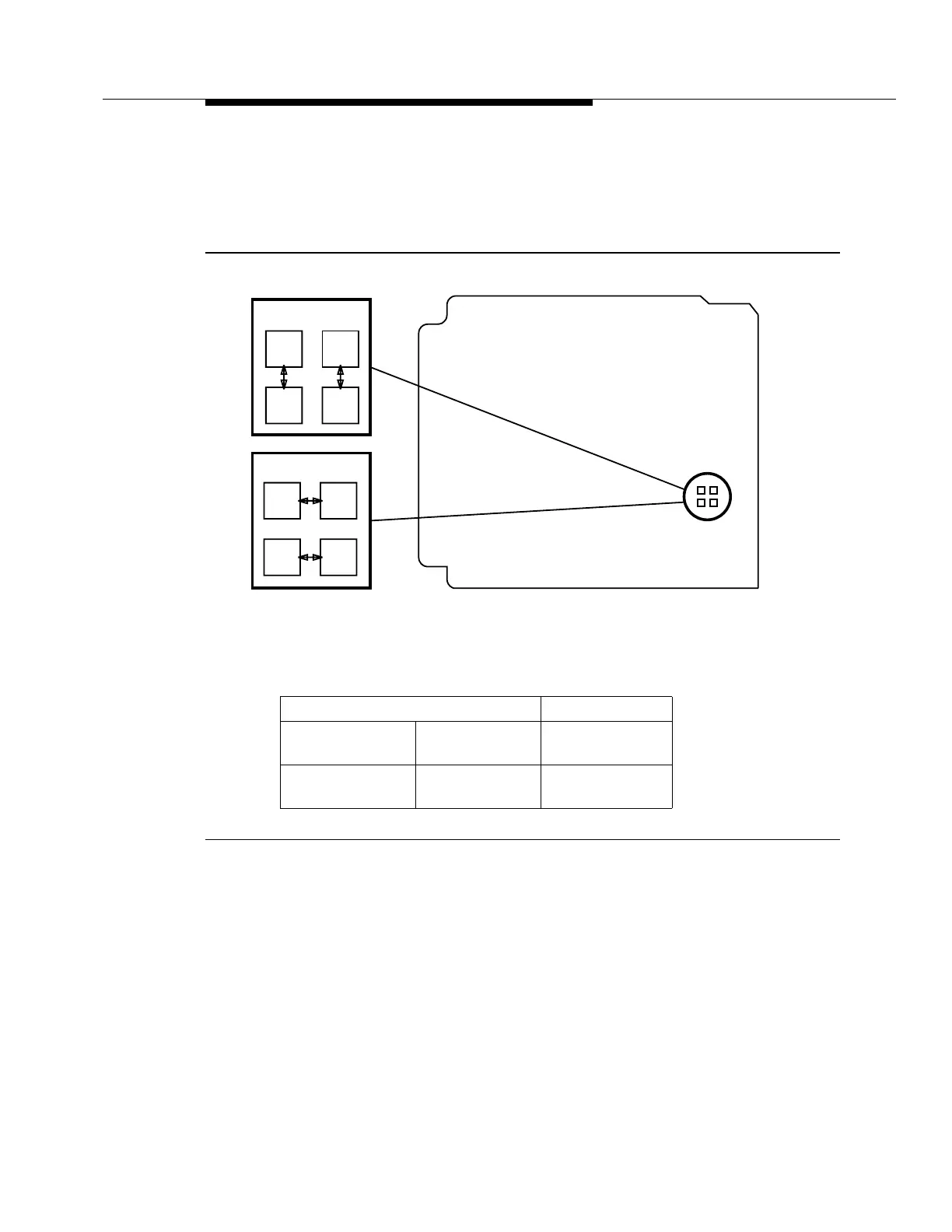

Figure 7-21. BBG19 DS3 Line Build-Out (LBO) Jumpers
Cable Length (Ft) LBO Setting
735A
Cable
734D
Cable
0 to 125
>125 to 250
0 to 225
>225 to 450
LBO IN
LBO OUT
LBO IN
Edge
Connector
LBO OUT
Component Side
tpa 852244/01
