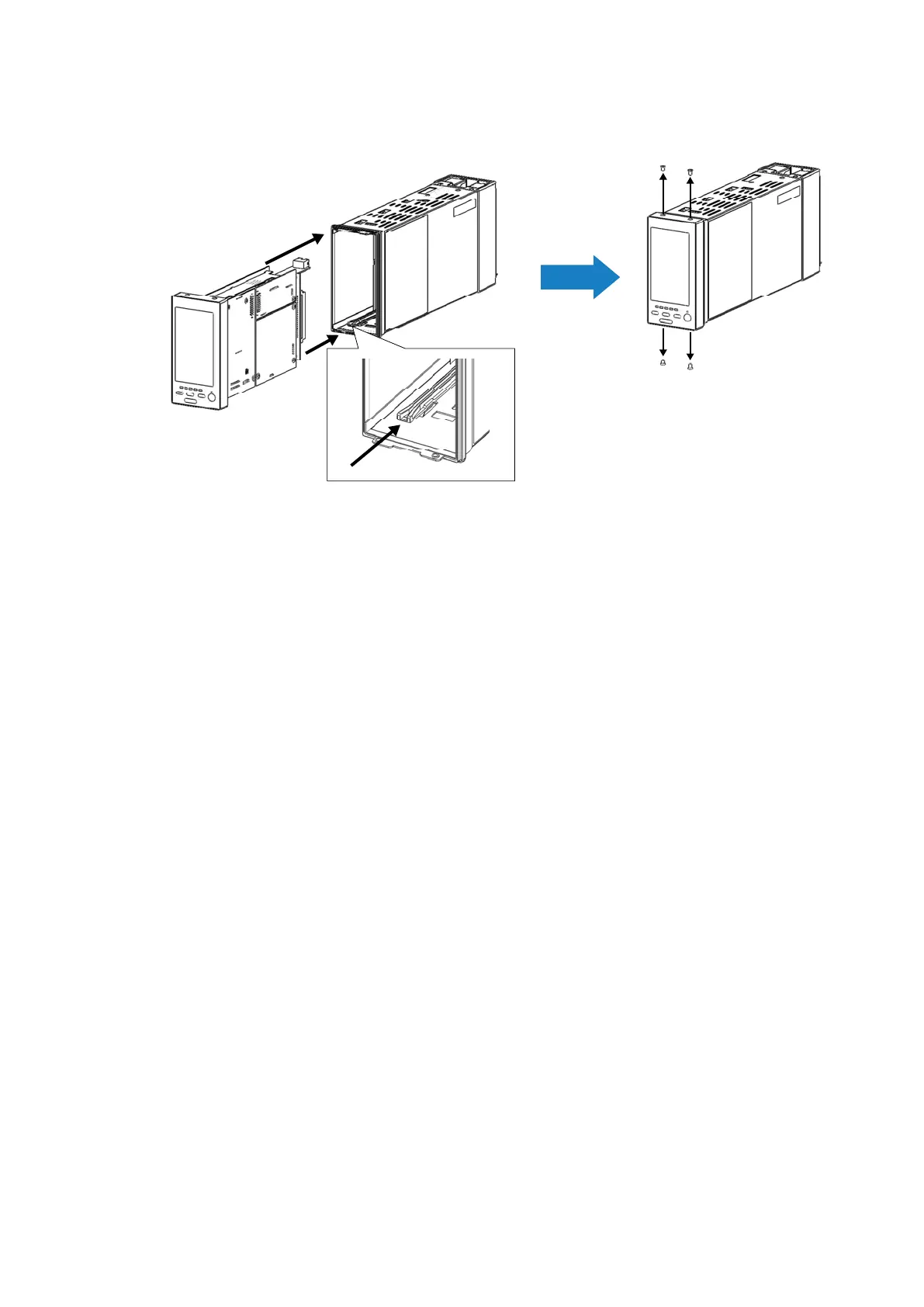

(3) Insert a new control module along the grooves at the top and bottom inside the controller housing and tighten four screws
at the front part.
The control module starts up as soon as it is connected.
(4) Conrm on the backup view the following: (Refer to: 11.2.3. BACKUP RECOVERY MODE (AUTO/MANUAL TRACKING))
Auto tracking mode: The Mv 2 Output (bottom-row display) tracks exactly the Backup Output (Mv 2) (top-row display).
Manual tracking mode: The MV 2 Output can be controlled with the MV control buttons at the right side on the screen.
(5) Return to the normal status. The LEDs turn off. (Refer to: 11.3.3. RETURNING TO NORMAL STATUS)
(6) Switch to automatic control mode or normal operating mode.
