SC100/200 Series Users Manual EM-6337-B Rev.15

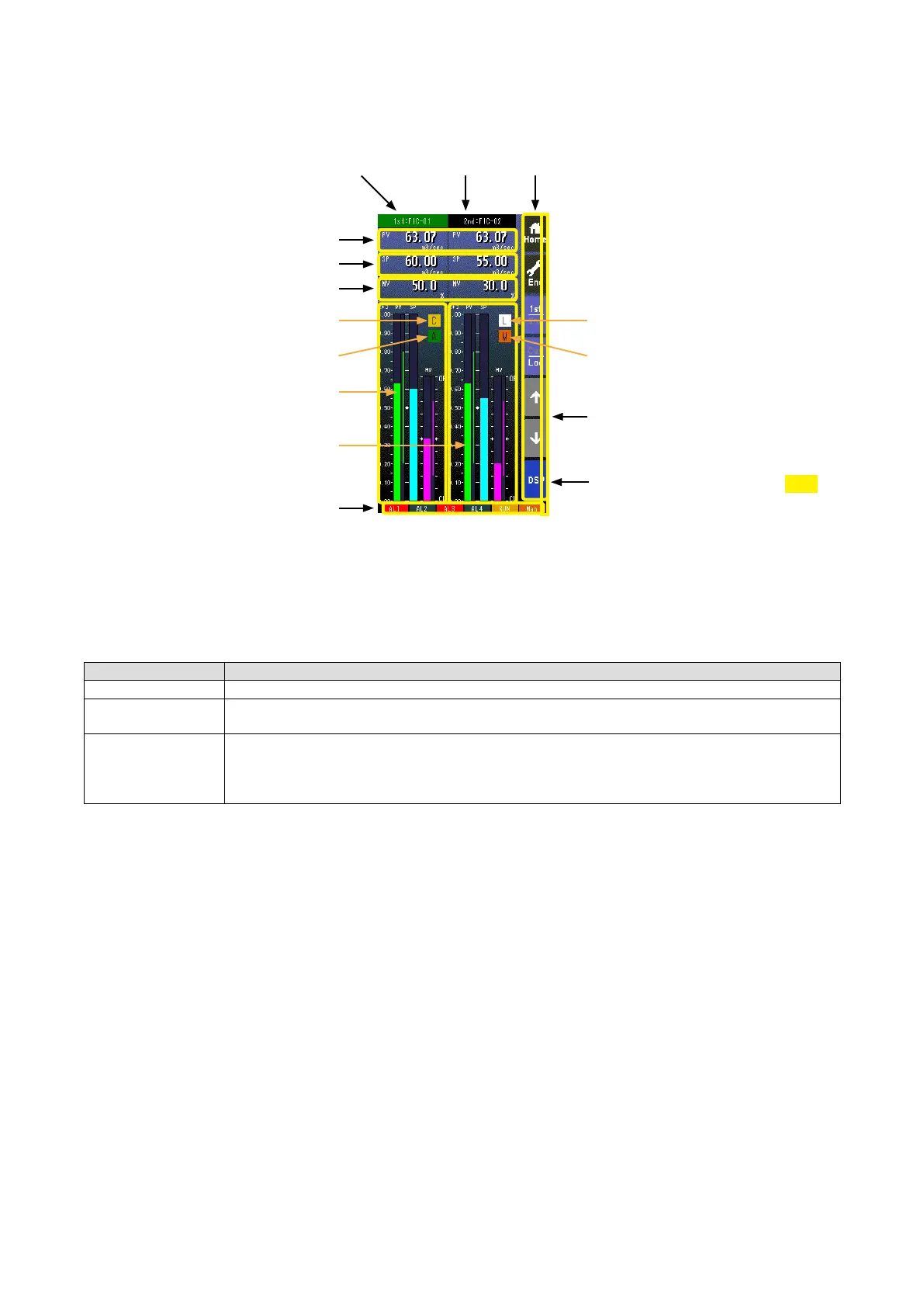

6.2.3. DUAL LOOP BARGRAPH VIEW
6.2.3.1. SCREEN COMPONENTS
Alarm Indicator
Red bar blinks during error.
Tag No.
Secondary Loop
Primary Loop Bargraphs
(See previous page for
component identication.)
Secondary Loop Bargraphs
(See previous page for
component identication.)
* Indicators
Operation Buttons
PV Digital Display
Tag No.
Primary Loop
SP Digital Display
MV Digital Display
Cascade/Local Indicator
Primary Loop
Auto/Manual Indicator
Primary Loop
Cascade/Local Indicator
Secondary Loop
Auto/Manual Indicator
Secondary Loop
PRG mode indicator
Yellow bar blinks during program mode
• Pressing on [1st/2nd] button switches between the primary and secondary loops.
• The secondary loop bargraph eld is blank with only the background color when the secondary loop is not assigned.
• The background color of the tag eld for the selected loop turns to the color specied in ‘Selected loop color’ setting.
* Indicators
INDICATOR EXPLANATIONS
AL1 to AL4 Background color turns red during alarm.
RUN / STOP RUN: Green in normal conditions; Amber in an abnormality.
STOP: Grey when the Controller operation is stopped; Red when the memory is failed.
Auto / Man Auto: Green Auto indicator turns on.
Man: Orange Man indicator turns on.
The lamp indicates the status of the loop specied in ‘Loop display (MV/OP)’ setting.
(Refer to: 6.3.1.12. LOOP DISPLAY (MV/OP))
