SC100/200 Series Users Manual EM-6337-B Rev.15
10.2.2. STEREO JACK TYPE
1) Install the SCCFG program and driver for PC Congurator cable (model: COP-US) to the PC and connect the COP-US
to its USB port.
2) Set the COM port number assigned to the USB for use with the SCCFG.
3) Connect the COP-US to the connector adaptor and after this, to the Controller’s jack port.
4) Go to Engineering View and choose Conguration > 01 : Cong mode > 03 : SCCFG. The front monitoring LED starts
blinking rapidly to indicate the ready state. Refer to Section 6.3.1.4. CONFIG MODE to operate the Controller.

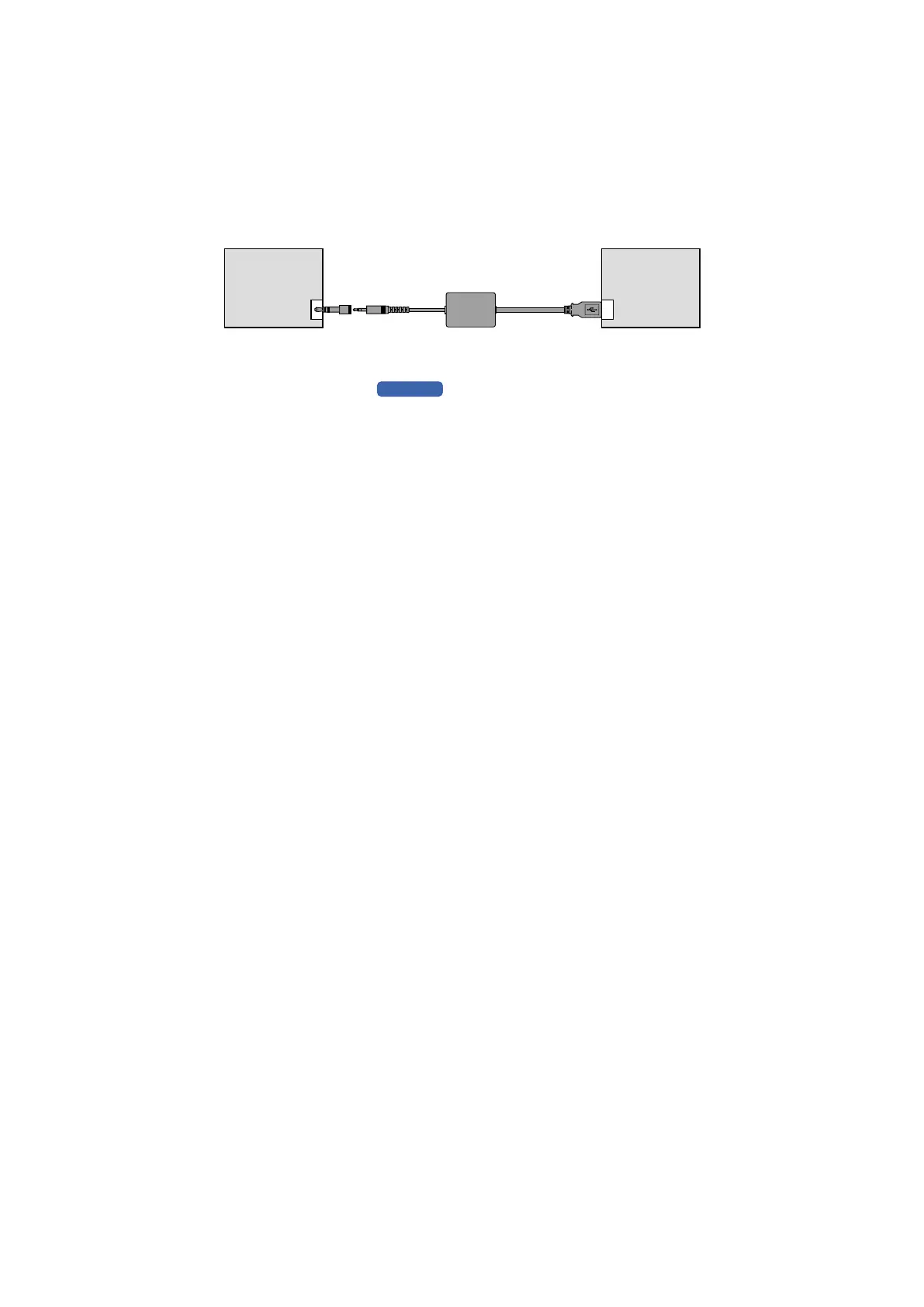

PC
SCCFG
Controller
COP-US
USB portStereo jack
Connector
adapter
10.3. SAVING SHORT TREND DATA
SC200/210
Short trend data stored in the SC200/SC210 can be exported in a CSV le. Exported data range depends upon the trend
recording status:
START: Max. 400 samples backward from the most recent sample
STOP: Max. 400 samples backward from the moment of STOP command.
PAUSE: Max. 400 samples backward from the moment of PAUSE command.
Refer to the Users Manual for the SCCFG for the CSV le format.
10.4. TRANSFERRING SETTING PARAMETERS
Setting parameters (those marked with ‘Y’ in the rightmost column of ‘6.3.1.3. CONFIGURATION PARAMETERS’ table plus
all items in ‘6.3.5.4. SETTING ITEMS’ table) can be uploaded and saved in a PC le. Setting les can be downloaded to the
Controller device. They can be copied to multiple devices in turn.
Transferred parameters become valid only after the power supply to the Controller is reset.
