SC100/200 Series Users Manual EM-6337-B Rev.15

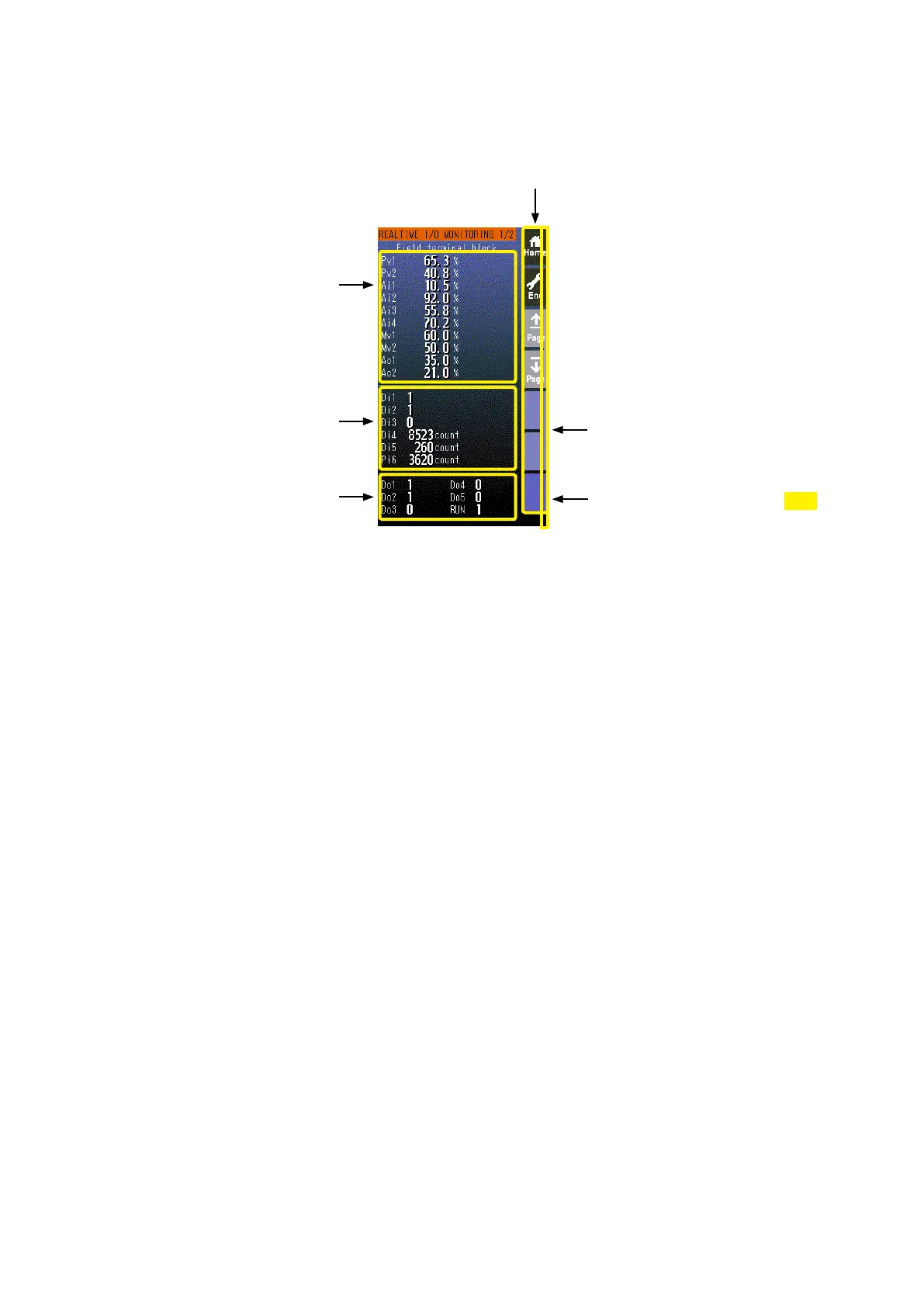

6.3.4. REALTIME I/O MONITORING VIEW
6.3.4.1. SCREEN COMPONENTS
Page 1/2: Field Terminal Block
Alarm Indicator
Red bar blinks during error.
Analog I/O Display Field
Di / Pi Display Field
Do Display Field
Operation Buttons
• Analog I/O values are represented in % of the eld terminal block range.
• DiX and PiX display items depend upon the user’s terminal assignments.
• Di / Do status is given as 1 or 0.
• Pi displays indicate accumulated counts between 0 and 9999 (unit: count).
PRG mode indicator
Yellow bar blinks during program mode
