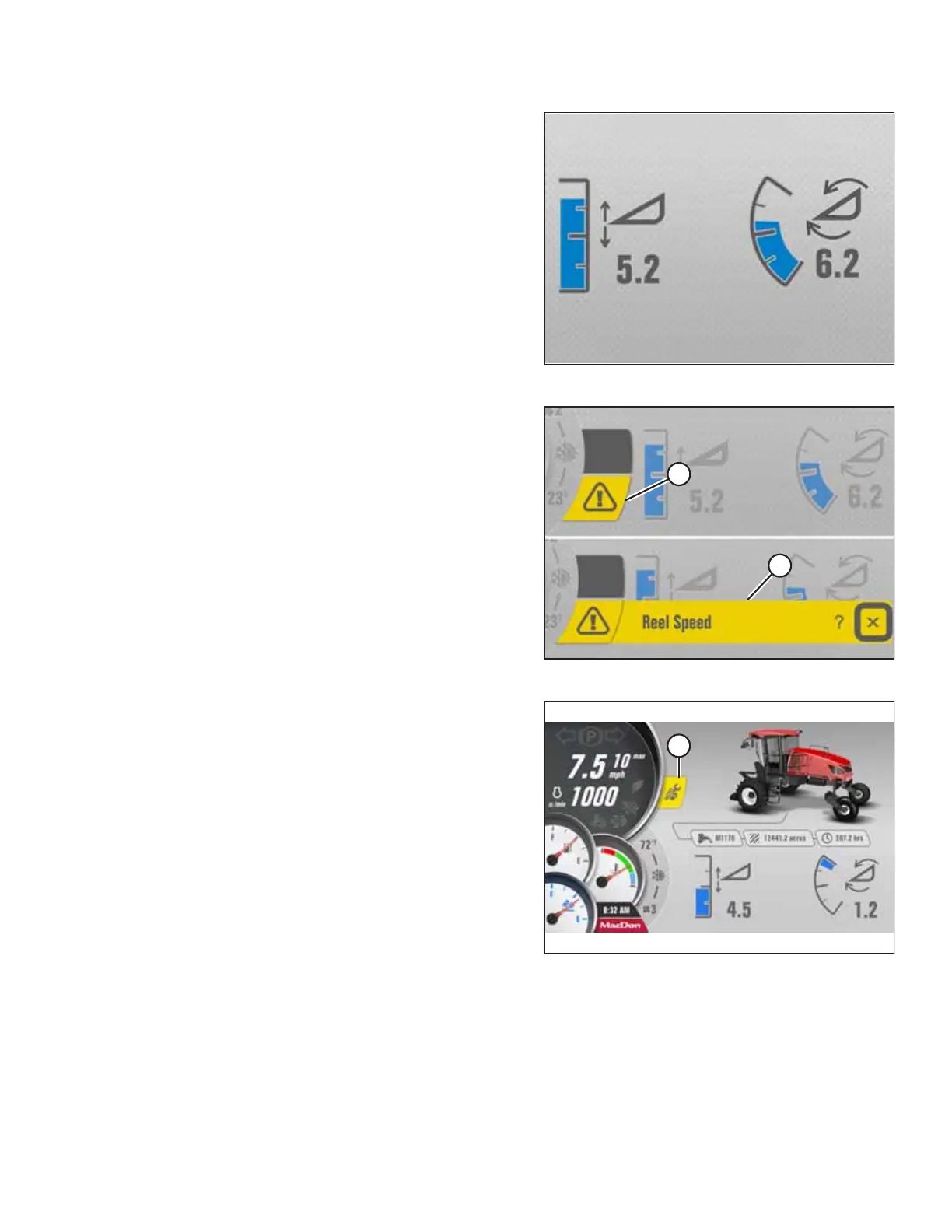

Figure 3.75: Current Header Position
Current header position:
• Displays basic header functions: height and angle
Figure 3.76: Faults/Telltales
Telltales:
• Telltales (A) indicate an engine or windrower fault
• Telltales are amber or red in color accompanied by a
symbol for the fault
• Telltales display a short description (B) of the fault
Figure 3.77: Maintenance Indicator
Required maintenance indicator:
• An amber indicator (A) is displayed 50 hours before
required maintenance is due
• The indicator only displays when header is disengaged
• The indicator flashes when maintenance is overdue by
50 hours
