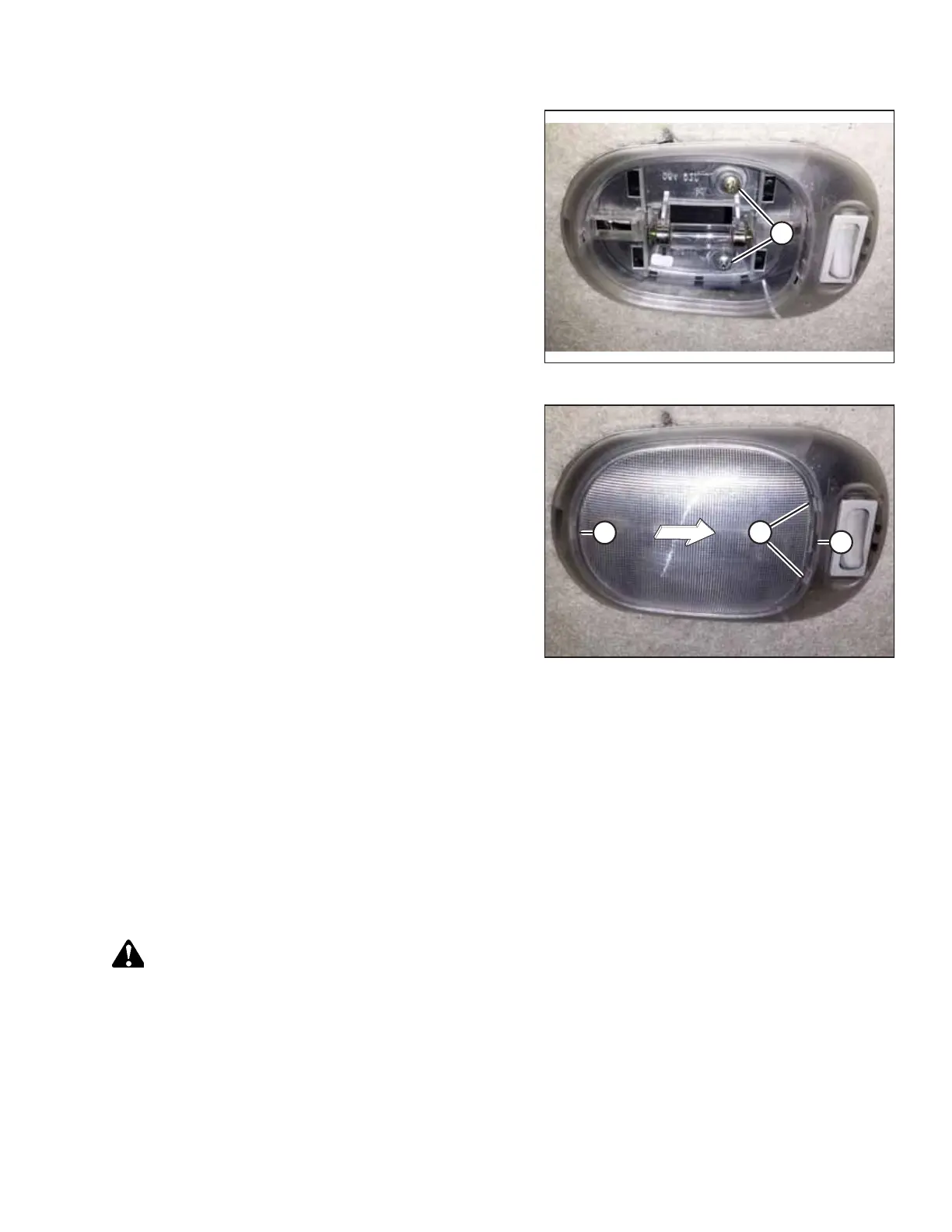

Figure 5.205: Cabin Dome Light with Cover Removed
10. Secure the dome light assembly with two screws (A).
1015609
A
C
B
Figure 5.206: Cabin Dome Light
11. Insert single retaining tab (A) into the dome light bezel.
12. Insert a slotted screwdriver (or similar prying tool) into
slot (B), and gently pry the lens cover until retaining
tabs (C) engage into the dome light bezel.
Turn Signal Indicators
The turn signal indicator lights can be found on the operator’s console. If the turn signal indicators are not working
correctly, contact your MacDon Dealer for more information.
5.15.7 Accessing Circuit Breakers and Fuses
Most circuit breakers and fuses are located inside a fuse box mounted on the left (cab-forward) side of the frame, behind
the platform and inside the battery cover.
NOTE:
The circuit breakers automatically reset. Fuses are the plastic blade type.
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
