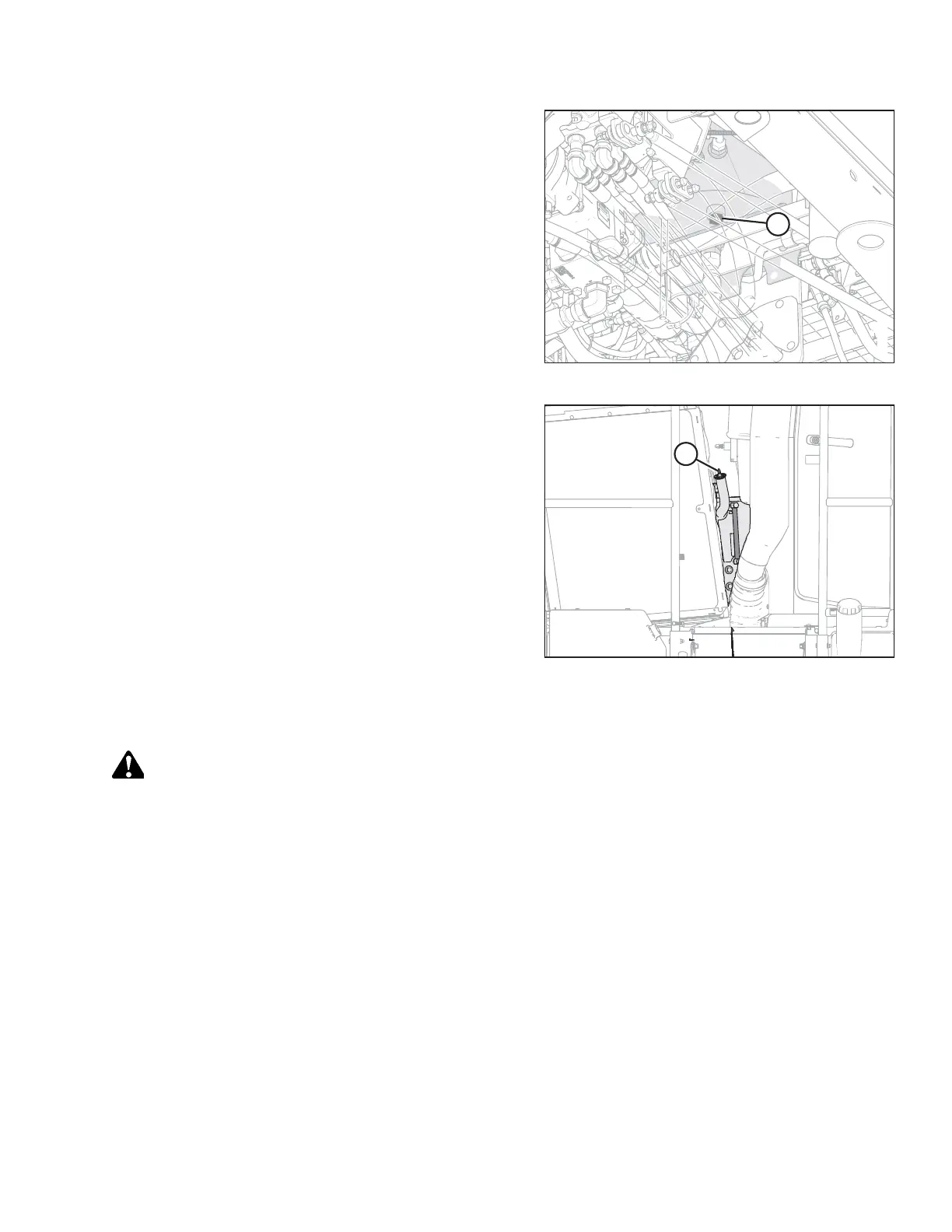

Figure 5.134: Hydraulic Oil Drain
9. Locate and remove magnetic drain plug (A) that is
underneath the hydraulic oil tank.
NOTE:
Pull the traction drive hoses out of the way to allow oil to
drop straight down into the catch pan.
10. Inspect and clean the magnetic drain plug for any debris.
11. Reinstall the drain plug. Torque the plug to 75–82 Nm
(55–60 lbf·ft).
Figure 5.135: Reservoir Plug
12. Reinstall plug (A) on the hydraulic oil tank.
13. Close the hood. For instructions, refer to 5.3.2 Closing
Hood, page 240 .
14. Dispose of used oil in a manner that complies with local
rules and regulations.
5.13.3 Filling Hydraulic Oil
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
1. Park the windrower on a level surface.
2. Shut down the engine, and remove the key from the ignition.
3. Open the hood. For instructions, refer to 5.3.1 Opening Hood, page 239.
