MacDon M1170NT5 - Ground Speed Lever Switches

215922 74 Revision A
3.16.3 Ground Speed Lever Switches
The switches on the ground speed lever (GSL) control the most common header functions.
1012746
A

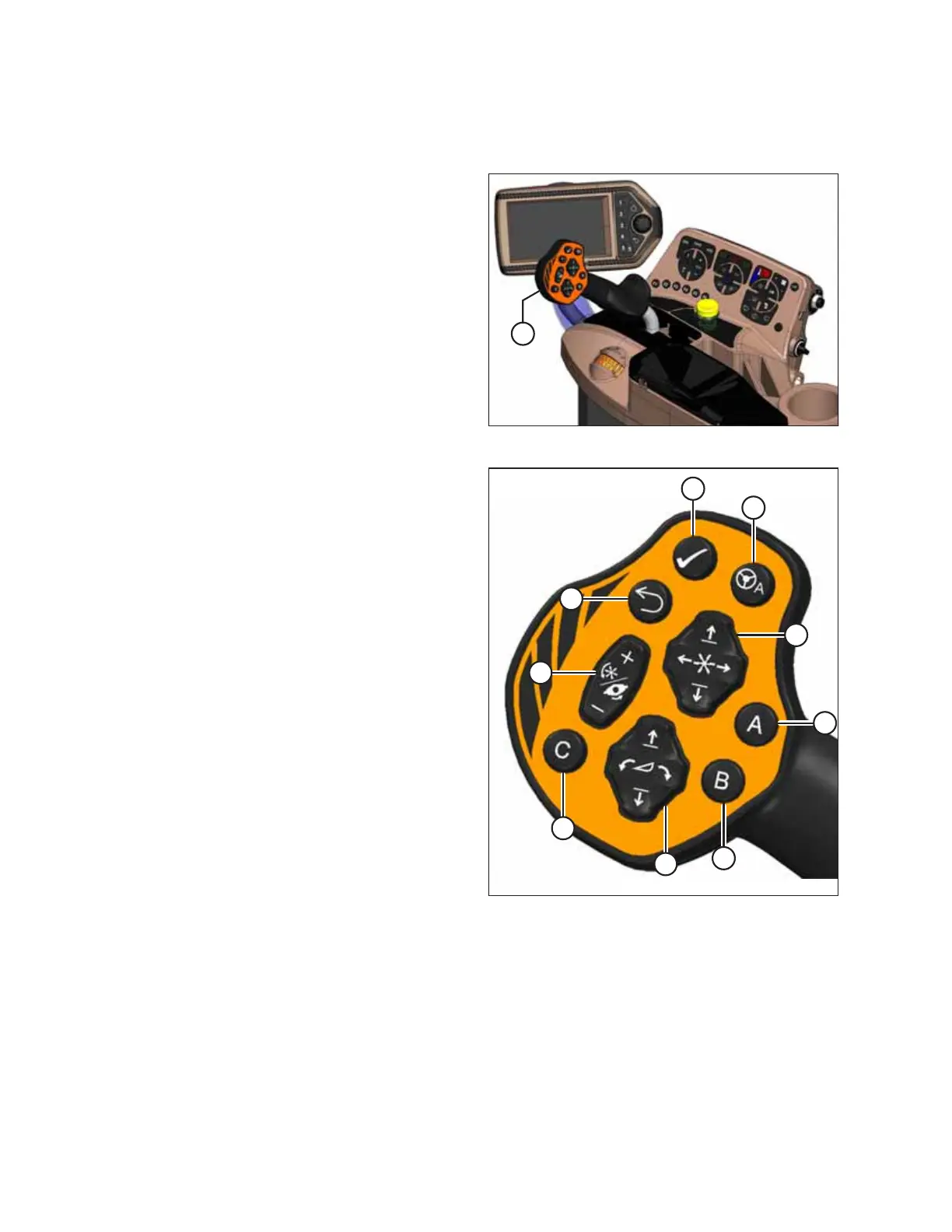

Figure 3.57: GSL
The GSL (A) is located on the console.
1020009
A
B
C
D
E
F
G
H
J
Figure 3.58: GSL Function Groups
GSL controls — front
• One-Touch-Return position switch (A)
• One-Touch-Return position switch (B)
• One-Touch-Return position switch (C)
• Reel or disc speed (D) (also operates turn signals when
the header is disengaged)
• Reel position (E)
• Autosteer engagement (F) (if equipped)
• Header position (G)
• Back switch (H) – controls Harvest Performance
Tracker (HPT) functions
• Select switch (J) – controls HPT functions
OPERATOR’S STATION
