MacDon M1170NT5 - Windrower Controls

215922 71 Revision A
3.15 Windrower Controls
The controls to operate the windrower are located on the console.
1026650
A
C
B
D
A
E
F

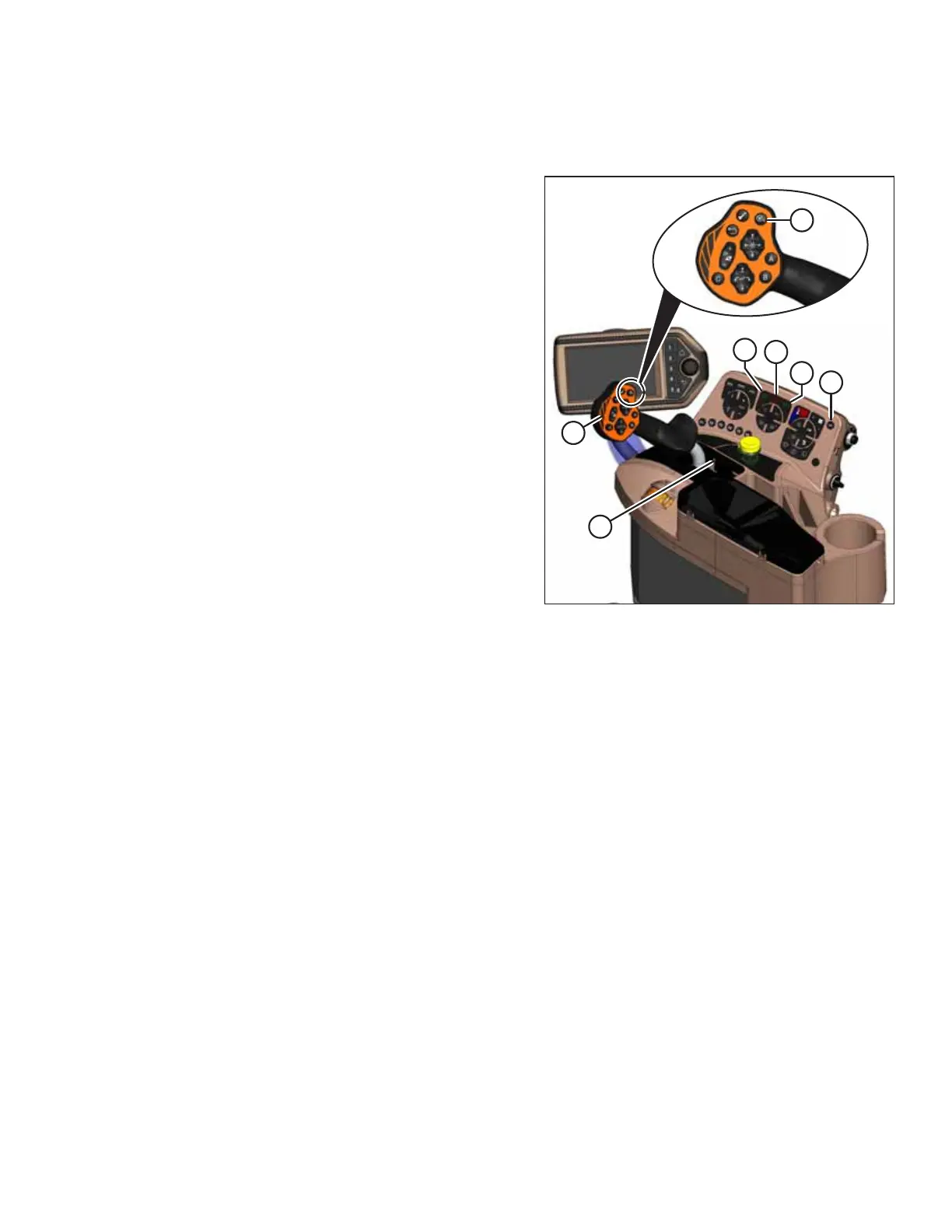

Figure 3.53: Console Controls and Autosteer
Console controls:
Turn signals (A) – Activates turn signals on windrower and
header.
• Push-ON/Push-OFF (activating the hazard switch also
cancels the turn signal)
Ground speed lever (GSL) (B) – Controls speed and direction of
movement.
• F: Forward
• N: NEUTRAL
• PARK: Engages neutral interlock, and applies park brake
when steering locked in center
• R: Reverse
Hazard warning lights (C) – Activates signals on windrower and
header.
• Push-ON / Push-OFF
PARK (D) – Engages neutral interlock, and applies park brake
when steering locked in center.
Horn (E)
Autosteer engagement button (F) – Engages/disengages the
automated steering system (if installed).
• ENGAGE: Click to engage
• DISENGAGE: Turn steering wheel to disengage
OPERATOR’S STATION
