MacDon M1170NT5 - Grease Points

215922 281 Revision A
4. Replace any loose or broken fittings immediately.
5. If a fitting will NOT take grease, remove and clean it thoroughly. Also clean the grease passageway. Replace the fitting
if necessary.
Grease Points
Add grease to these greasing points according to the maintenance schedule. Be sure to leave a small amount of grease on
top of each fitting to prevent contamination.
10149861014986
B
C
A

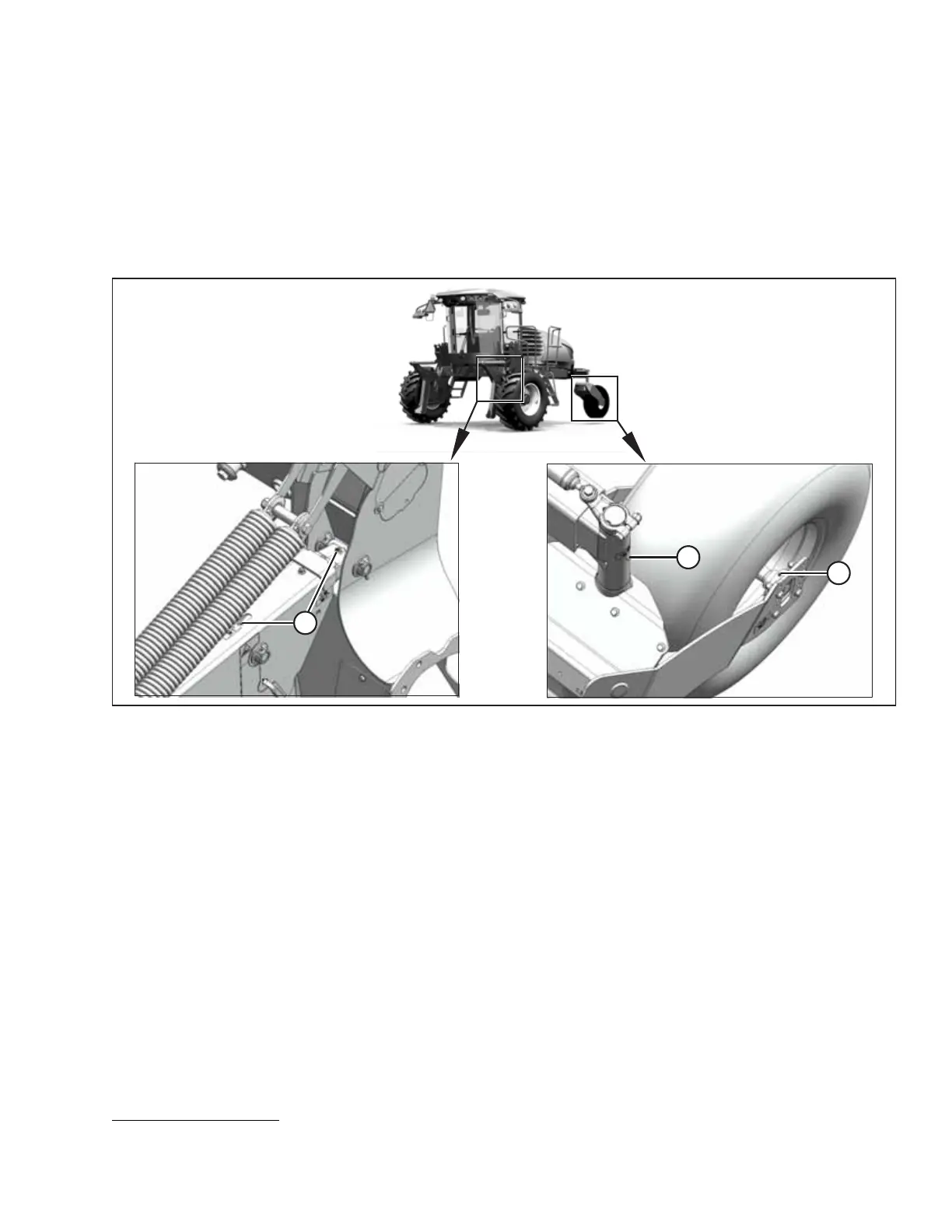

Figure 5.67: Grease Points
A - Top-Link (2 Places) (Both Sides) B - Caster Pivot (Both Sides) C - Caster Wheel Hub (Both Sides)
19
MAINTENANCE AND SERVICING
19. Do NOT overgrease. Use 1 pump of grease.
