4.7.8 Deck Shift Control
On windrowers with an attached draper header equipped with the deck shift option, the Operator can choose to deliver
crop to the left or right side of the header, in addition to being able to deliver the crop between the legs of the windrower.
Shifting Decks
Draper decks can be shifted from the windrower cab, as long as the header has deck shift.
DANGER
Ensure that all bystanders have cleared the area.
Shift decks as follows:
10127561012756
A
B

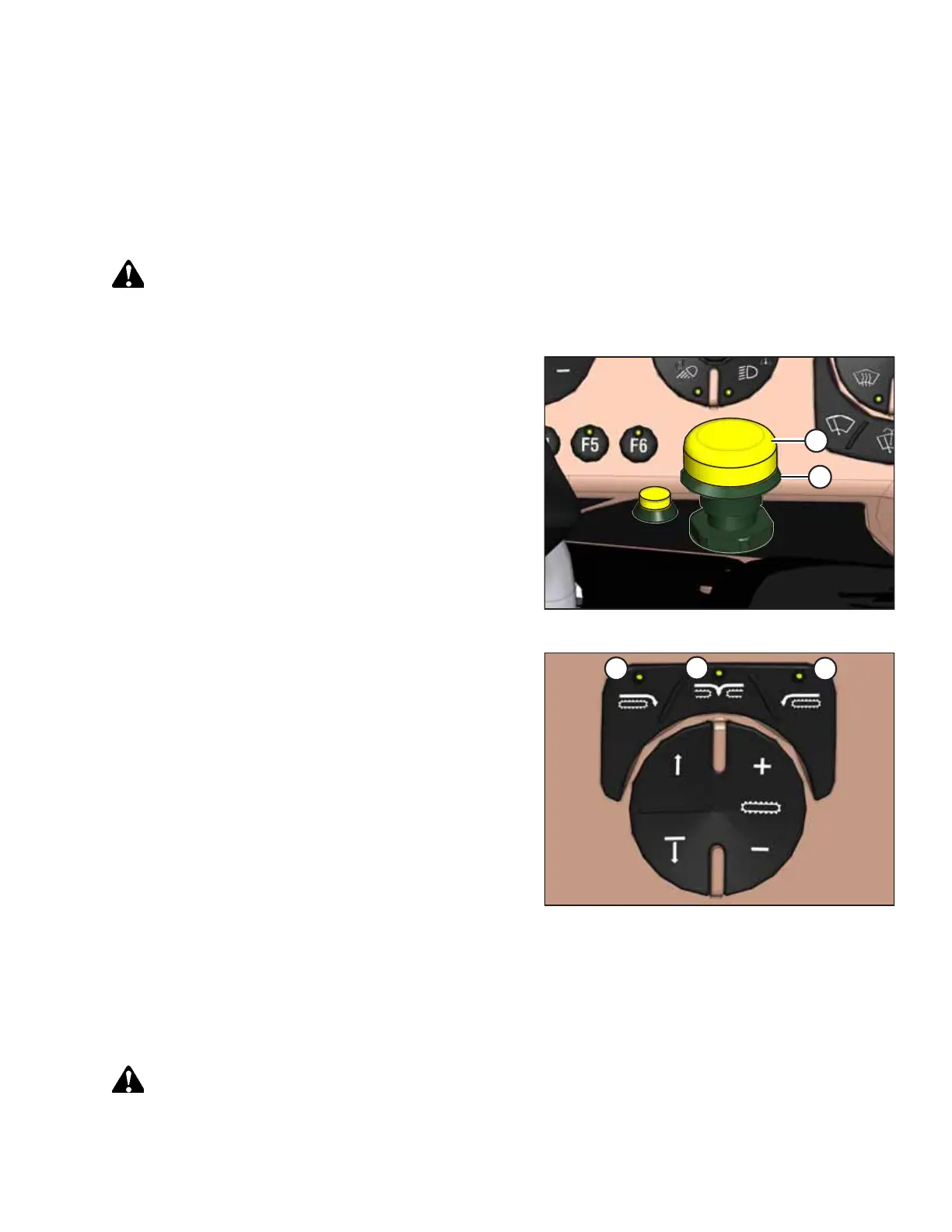

Figure 4.236: Header Engage Switch
1. Engage header by pushing and holding HEADER ENGAGE
switch (A) down, and pulling up on collar (B).
1014967
A
B
C
Figure 4.237: Header Deck Shift Switches
A - Right-Side Delivery B - Center Delivery
C - Left-Side Delivery
2. Push the HEADER DECK SHIFT switch to the desired delivery
position. Deck(s) will move and direction of drapers will
change accordingly.
Setting Float Options with Deck Shift
Header float should be set for each deck position.
DANGER
Ensure that all bystanders have cleared the area.
