4.7 Operating with D1X or D1XL Series Draper Header
For attachment instructions, refer to Attaching D1X or D1XL Series Draper Header, page 167.
4.7.1 Header Position
The header height, tilt angle, and float adjustments are used to optimize cutting characteristics for specific crops and
conditions.
For procedures for controlling header height, header tilt, and float, refer to 4.6 Operating Header, page 189.
4.7.2 Adjusting Reel Fore-Aft Position
Optimize header performance based on crop type and conditions by adjusting the reel fore-aft position. The reel fore-aft
position is adjusted with the multi-function switches on the ground speed lever (GSL).

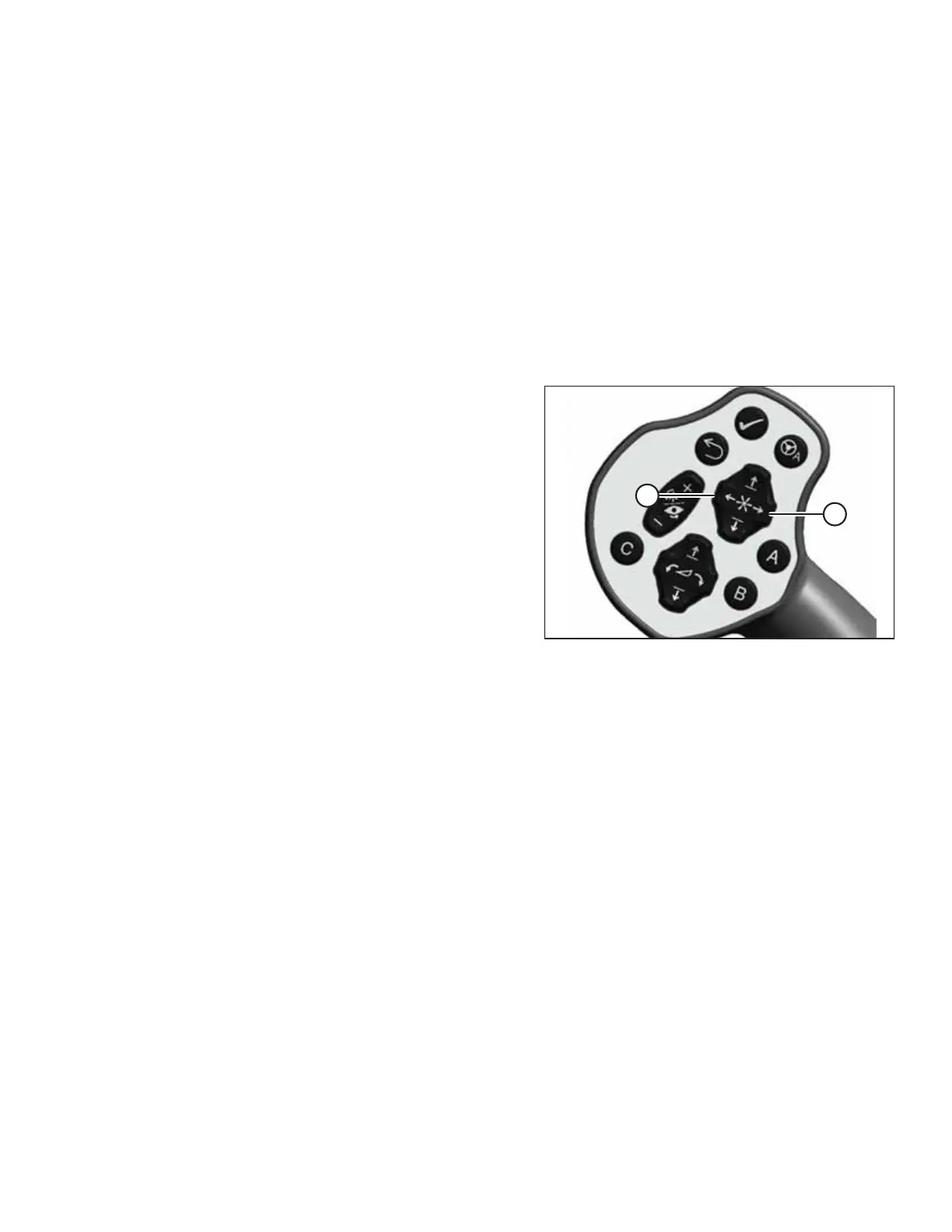

Figure 4.185: Ground Speed Lever
1. Press and hold the switch for the desired movement:
FORWARD (A) or AFT (B).
