3.3.10 Cushion Extension – Deluxe Cab Only
Use the controls on the front of the seat to adjust seat cushion extension fore-aft.
1012785
A

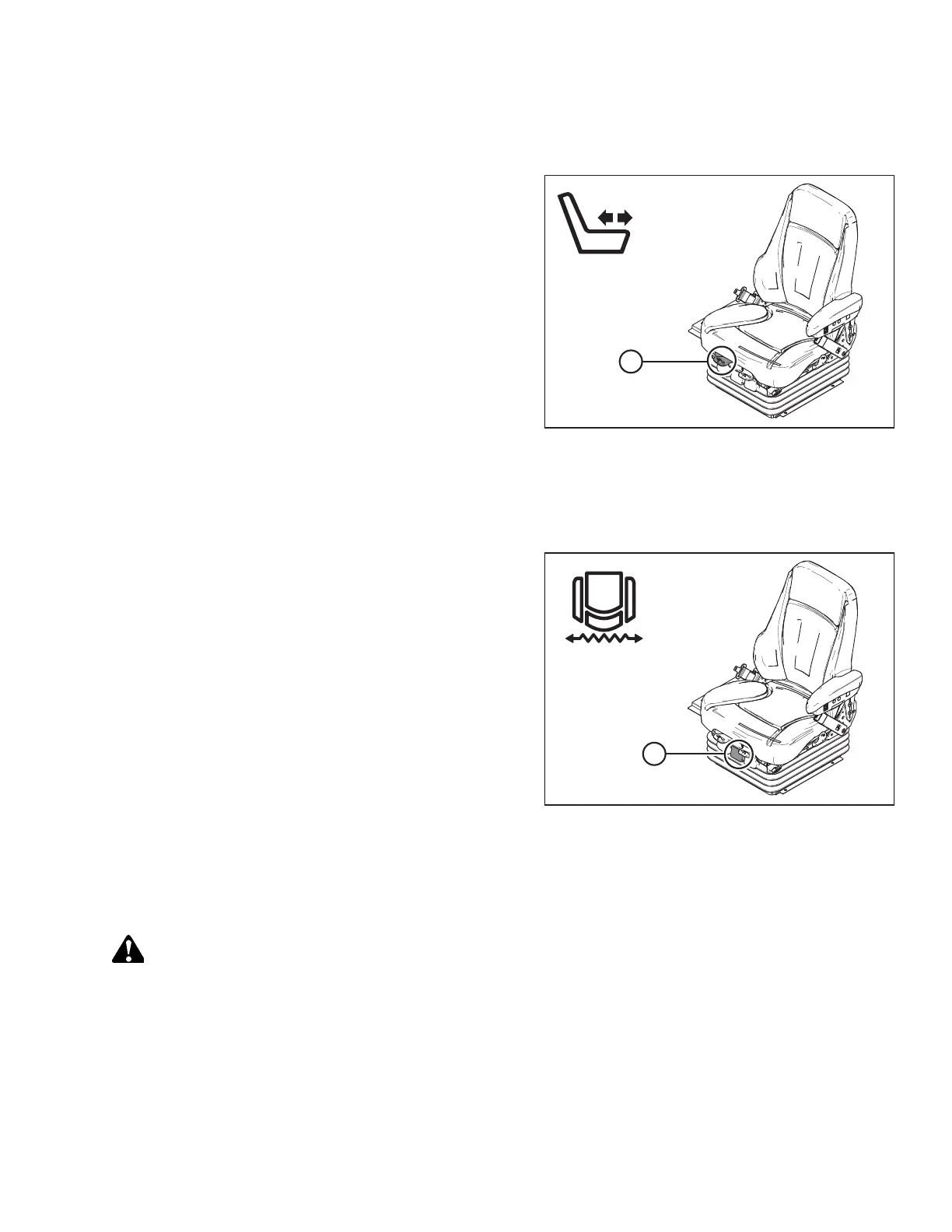

Figure 3.13: Deluxe Seat Cushion Extension Controls
1. Pull lever (A) up to release.
2. Move the cushion forward or rearward.
3. Release lever (A).
3.3.11 Lateral Isolation Lockout – Deluxe Cab Only
Use the controls on the front of the seat to adjust the lateral isolation lockout.
1012821
A
Figure 3.14: Deluxe Seat Lateral Isolation Controls
Use controls (A) to lock or unlock the deluxe seat’s lateral
isolation lockout.
3.3.12 Heating/Cooling – Deluxe Cab Only
Use the controls on the side of the seat to adjust the heating/cooling of the deluxe operator’s seat.
WARNING
• Do NOT use the seat heating or cooling system if you have a diminished ability to sense temperature, a reduced
ability to feel pain, or have sensitive skin. There is a possibility that some people may suffer heat-induced burns or
excessive cooling when using the system.
• Do NOT place anything on the seat that insulates against heat or cooling, such as a blanket or cushion. These items
may cause the seat heating or cooling system to overheat and cause a heat-induced burn to the seat occupant, or
damage to the seat itself.
