215922 182 Revision A

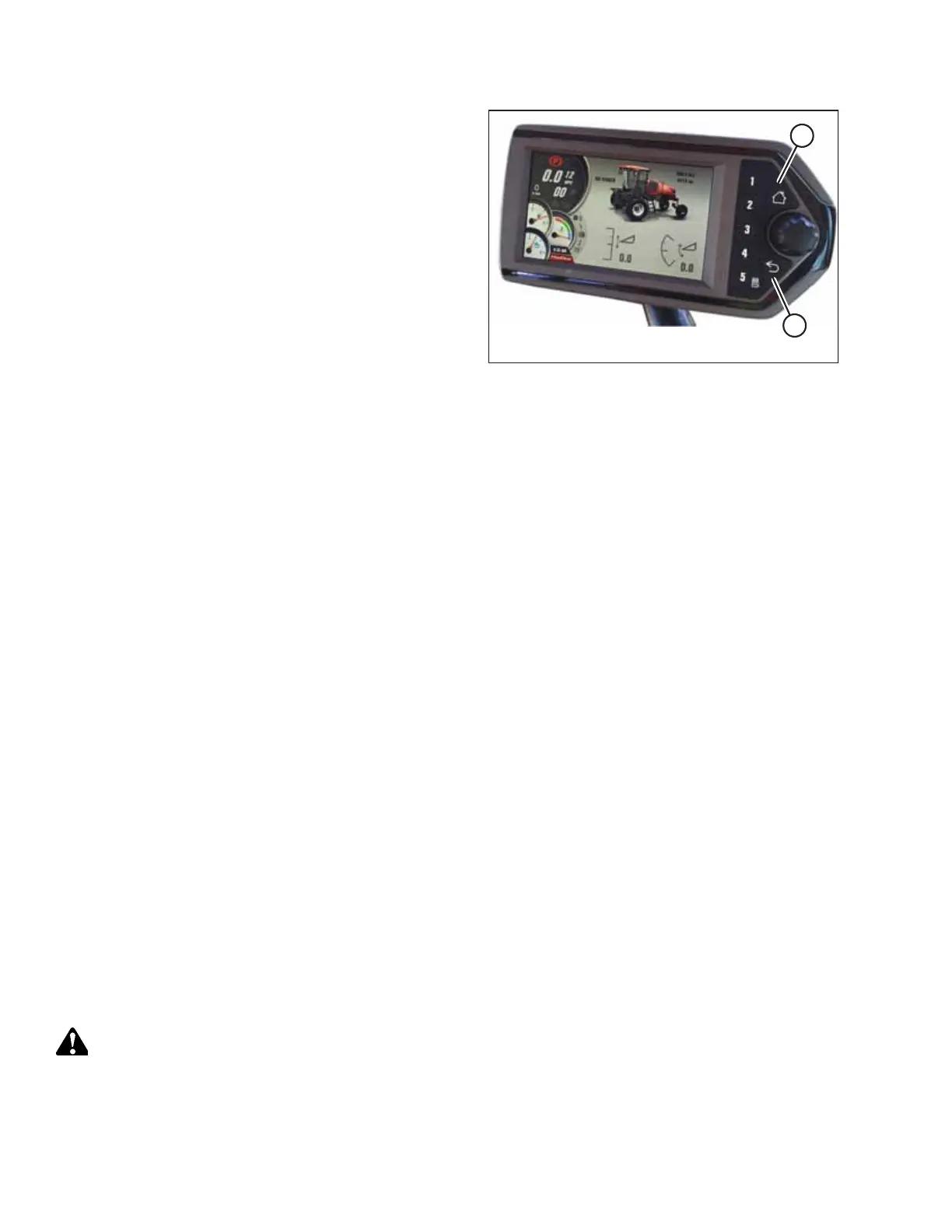

Figure 4.139: HPT Display
4. Press BACK button (A) on the HPT to return to the previous
level within the menu structure.
5. Press HOME button (B) on the HPT to return to the last
selected run screen (or header disengaged screen).
4.5.3 Header System Calibration
The Harvest Performance Tracker (HPT) recognizes when a header is attached to the windrower and determines which
systems will require calibration.
The following sensors may require calibration, depending on the type of header attached to the windrower:
• Header height
• Header angle
• Header float left
• Header float right
• Reel height
• Reel fore-aft
• Swath compressor
• Knife drive
Recalibration is required in the following circumstances:
• The HPT is replaced
• A position sensor is replaced
• Sensor readouts are erratic
• A pump has been replaced
• A new header type or attachment is connected to the windrower
Refer to following topics for information on calibrating header systems:
• Calibrating Knife Drive on Harvest Performance Tracker Display, page 182
• Calibrating Header Position Sensors on Harvest Performance Tracker Display, page 185
Calibrating Knife Drive on Harvest Performance Tracker Display
When a header is attached to a windrower, the Harvest Performance Tracker (HPT) will recognize the header ID and
configure the windrower accordingly. The header must be calibrated to ensure that the knife drive pump output is
accurate.
DANGER
Never start or move the machine until you are sure that all bystanders have cleared the area.
OPERATION
