1. Start the engine.
1016140
A
B
C

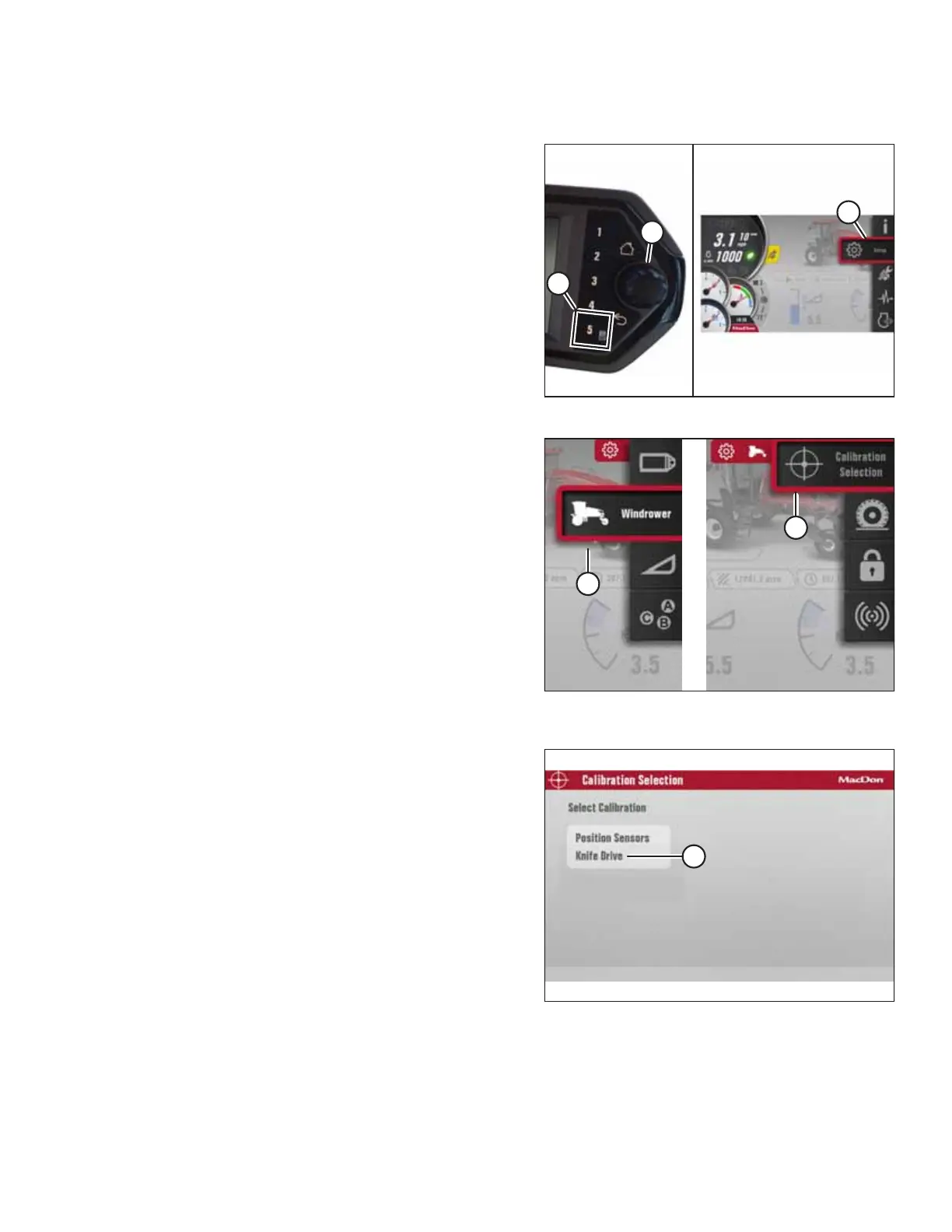

Figure 4.140: Opening the Main Menu
2. Press soft key 5 (A) to open the Harvest Performance
Tracker (HPT) main menu.
NOTE:
Calibrations MUST be performed with the engine
running. Some calibrations will not be available with the
engine off.
3. Use HPT scroll knob (B) or the ground speed lever (GSL)
scroll wheel (not shown) to highlight SETTINGS icon (C).
4. Press HPT scroll knob (B) or the GSL SELECT button (not
shown) to activate the settings menu options.
1016143
A
B
Figure 4.141: Windrower Settings Icon and Calibration
Submenu Icon
5. Scroll to WINDROWER SETTINGS icon (A) and press SELECT.
6. Scroll to CALIBRATION icon (B), and press SELECT to open
the Calibration Selection screen.
NOTE:
The F3 shortcut button on the operator’s console will also
open the WINDROWER SETTINGS menu.
1036869
A
Figure 4.142: Calibration Selection Screen
7. In the Calibration Selection screen, scroll to KNIFE DRIVE (A)
and press SELECT.
8. Engage the header.
