MacDon M1170NT5 - Armrest Angle; Suspension and Height

215922 43 Revision A
3.3.2 Armrest Angle
Use the controls on the armrest to adjust the angle of the armrest.
1012787
A

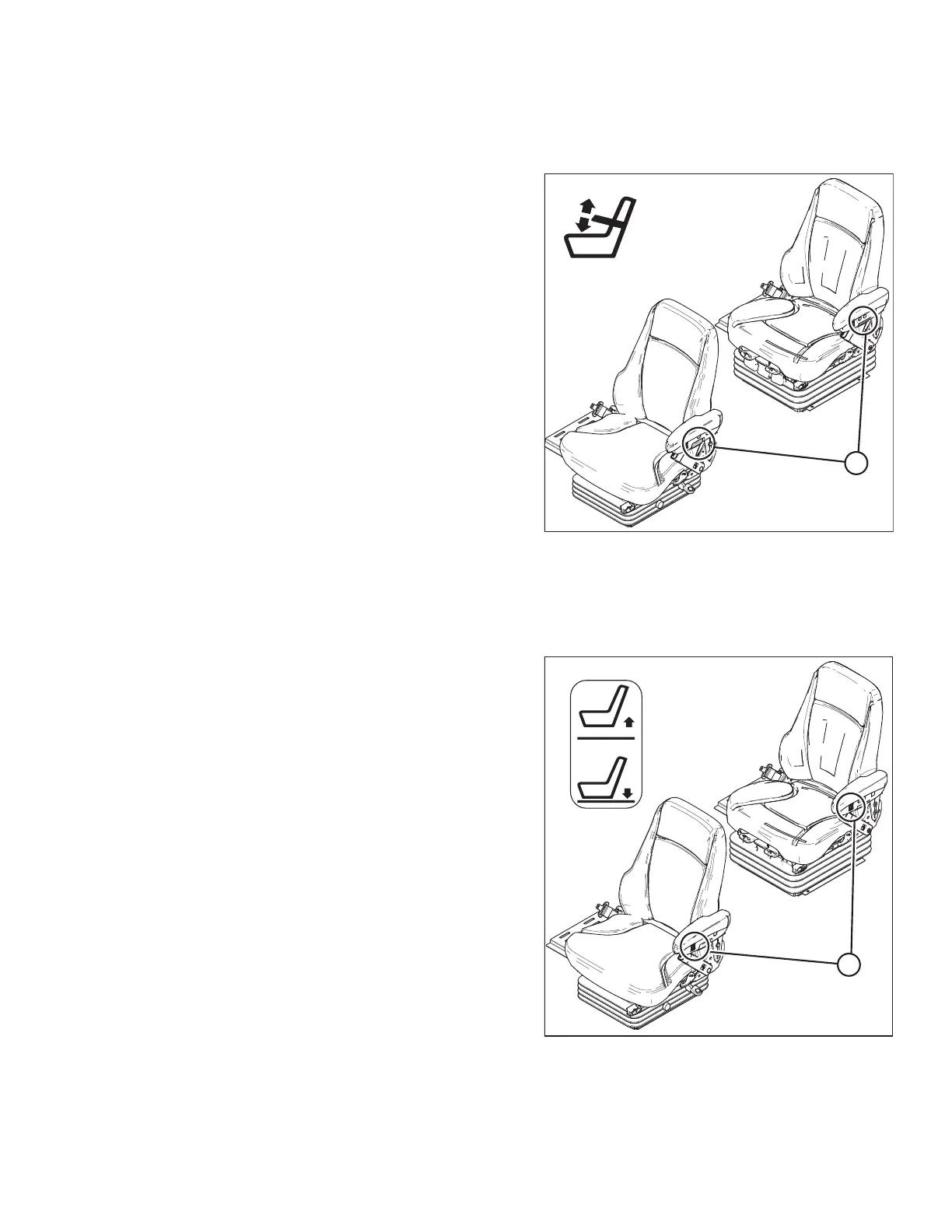

Figure 3.5: Operator’s Seat Armrest Angle Controls
• Rotate knob (A) clockwise to increase the armrest angle.
• Rotate knob (A) counterclockwise to decrease the
armrest angle.
3.3.3 Suspension and Height
Use the controls on the side of the seat to adjust the height and stiffness of the seat suspension.
1012782
A
Figure 3.6: Operator’s Seat Suspension and Height
Controls
• Press upper switch (A) to increase the seat stiffness and
height.
• Press lower switch (A) to decrease the seat stiffness and
height.
OPERATOR’S STATION
