MacDon M1170NT5 - Setting Reel Speed in Manual Mode

215922 209 Revision A
1019567
A
B

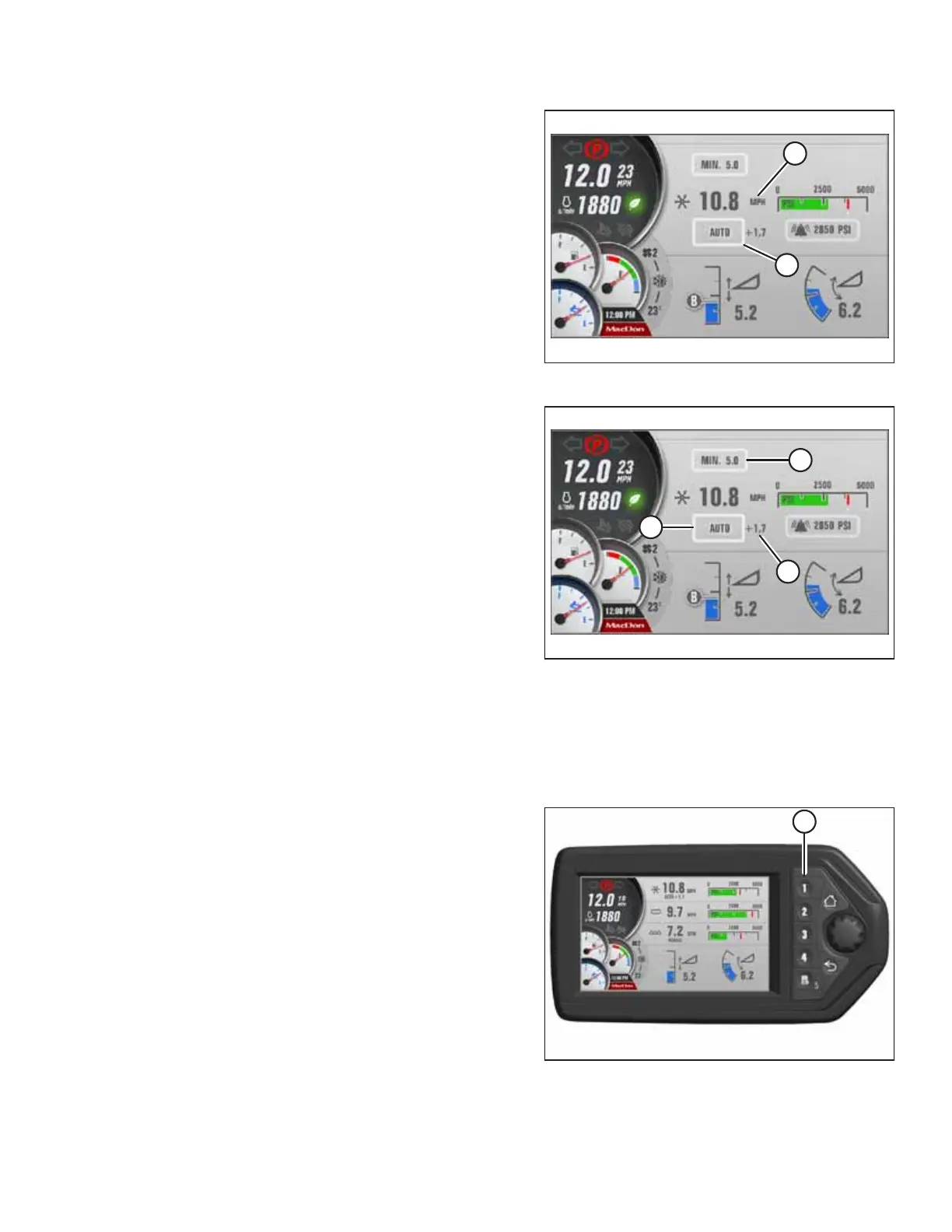

Figure 4.198: Draper Header Reel Page
4. Scroll to mode field (A) and select it.
5. Scroll in the pop-up window to AUTO and select it.
NOTE:
In AUTO mode, the speed is displayed in km/h or mph (B)
and cannot be changed.
1019568
B
A
C
Figure 4.199: Draper Header Reel Page
6. Scroll to and select MINIMUM REEL SPEED setting (A) (this
setting is grayed out in manual mode).
7. Turn the scroll knob to adjust the reel minimum speed to
1.6–8 km/h (1–5 mph) with 5 km/h (3.0 mph) as the
default. Press the scroll knob to select the desired setting.
8. Scroll to INDEX value (C) and select it.
9. Turn the scroll knob to set the index value. The index range
is +/- 8 km/h (5 mph) (zero, that is equal to ground speed,
is the default). Press the scroll knob to select the desired
setting.
NOTE:
The reel operates at the reel minimum speed when the
ground speed is less than the set minimum speed. The
minimum reel speed is displayed (A) and MIN will replace AUTO (B) +1.7 (C).
Setting Reel Speed in Manual Mode
This adjustment requires the header to be in operation.
1019554
A
Figure 4.200: Header Run Screen 1
1. If RUN SCREEN 1 is not already displayed, press soft key
1 (A) on the Harvest Performance Tracker (HPT) to display
draper RUN SCREEN 1.
OPERATION
