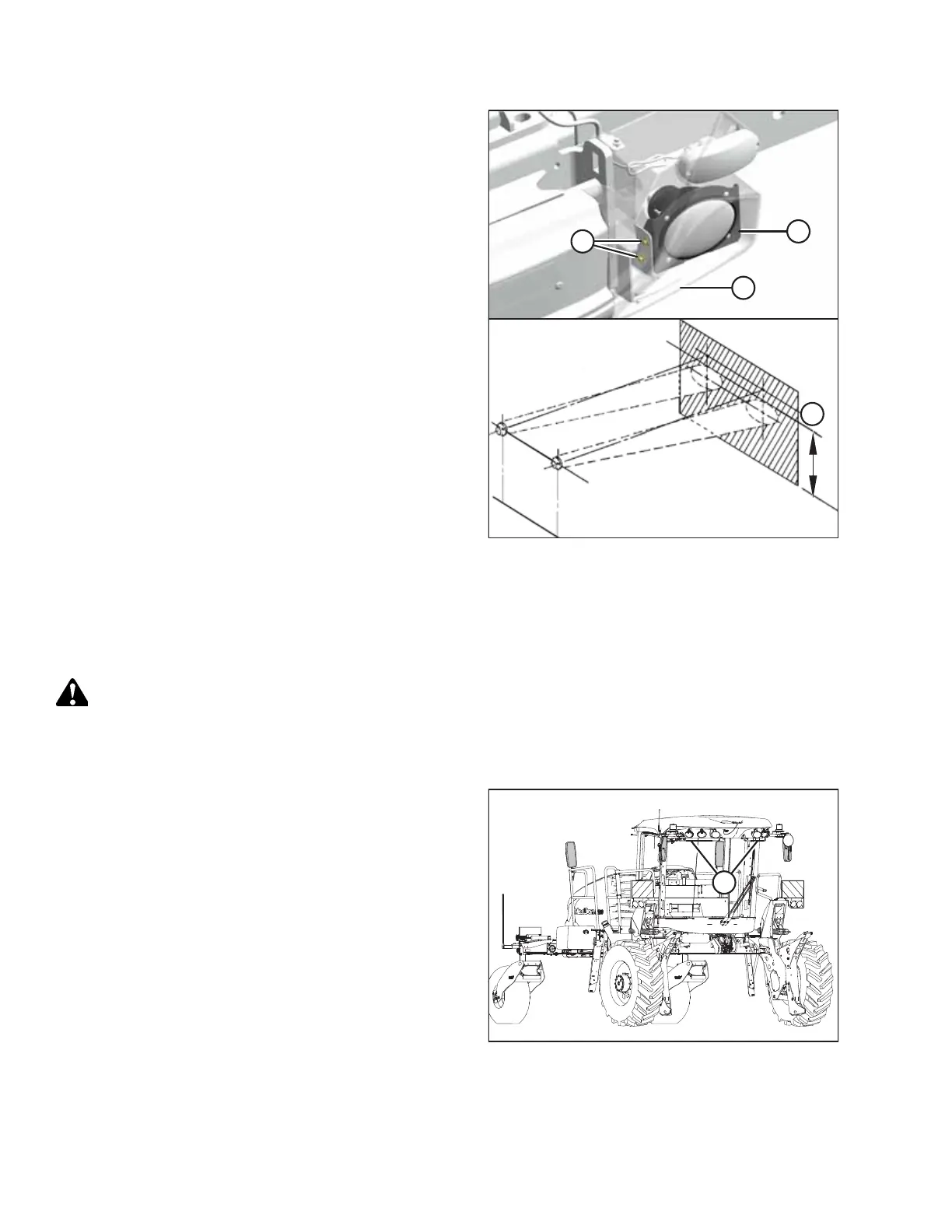

Figure 5.175: Left Engine-Forward Headlight – Right
Opposite
4. Adjust headlight (A) with adjusting bolts (B) so that the
beam’s maximum height above the ground does not exceed
1263 mm (49 3/4 in.) (C). Access the bolts by reaching
under the headlight bezel (D).
Aligning Headlights – Cab-Forward
Adjust field lights when in the field (or equivalent) to suit Operator preference.
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
1. Shut down the engine, and remove the key from the ignition.
1034226
A
Figure 5.176: Windrower in Cab-Forward
2. Hold onto handholds (A) on the cab front corners, and
stand on the header anti-slip strips.
NOTE:
The header is not shown in the illustration.
