MacDon M1170NT5 - Lowering Caster Wheel; Raising Caster Wheel

215922 374 Revision A
1019261
A
B
C

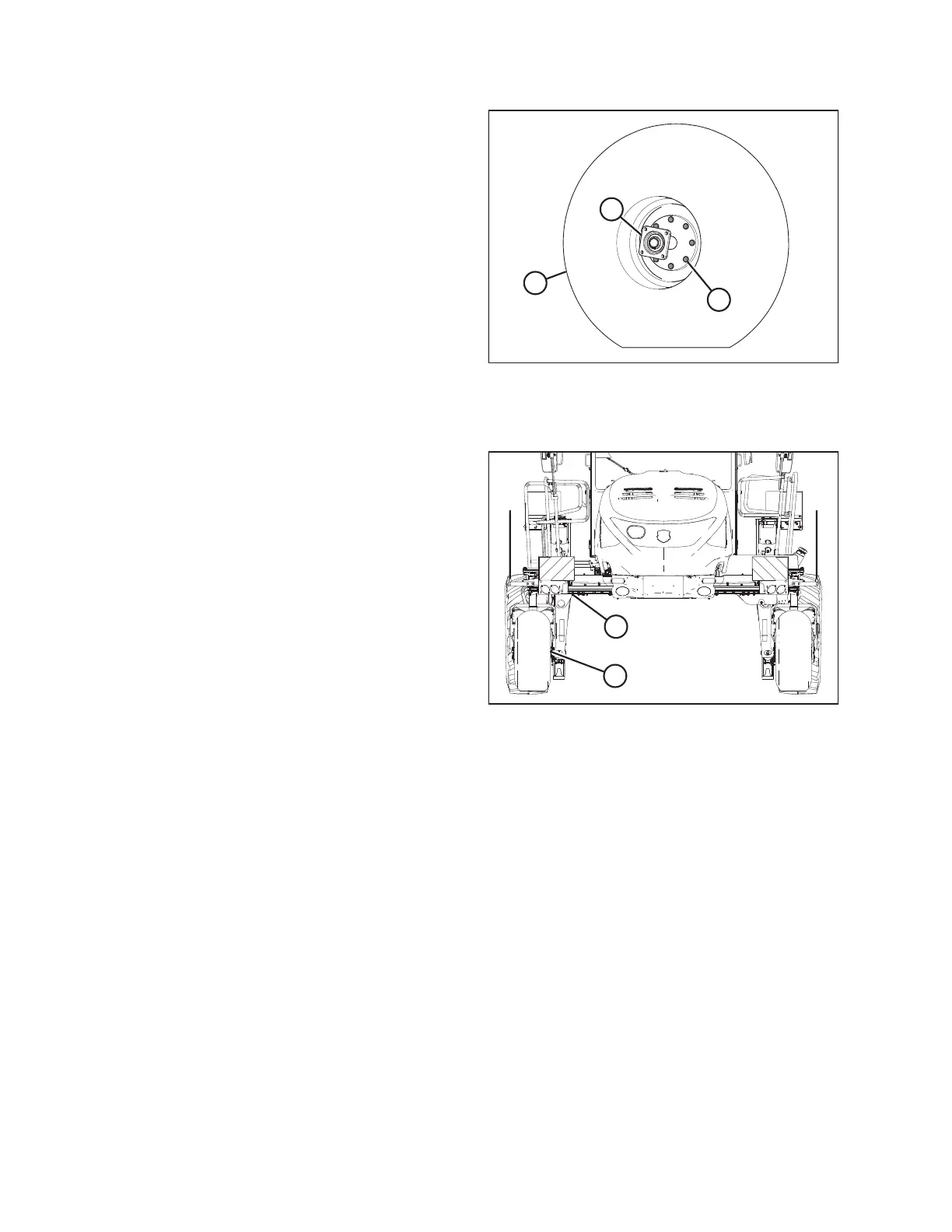

Figure 5.233: Caster Wheel Assembly
3. Remove eight wheel nuts (A) that secure axle (B) to
wheel (C).
4. Separate axle (B) and wheel (C).
Lowering Caster Wheel
1034229
A
B
Figure 5.234: Caster Wheel Assembly
1. Raise the end of walking beam (A) slightly, using a suitable
lifting device capable of lifting minimum 2268 kg (5000 lb.).
2. Remove the jack stand, and lower the end of the walking
beam until caster wheel assembly (B) is on the ground.
3. Remove the blocks from the drive tires.
Raising Caster Wheel
This procedure is for raising the caster wheel. This procedure applies to both caster wheels.
1. Park the windrower on a level surface.
2. Block the wheels.
MAINTENANCE AND SERVICING
