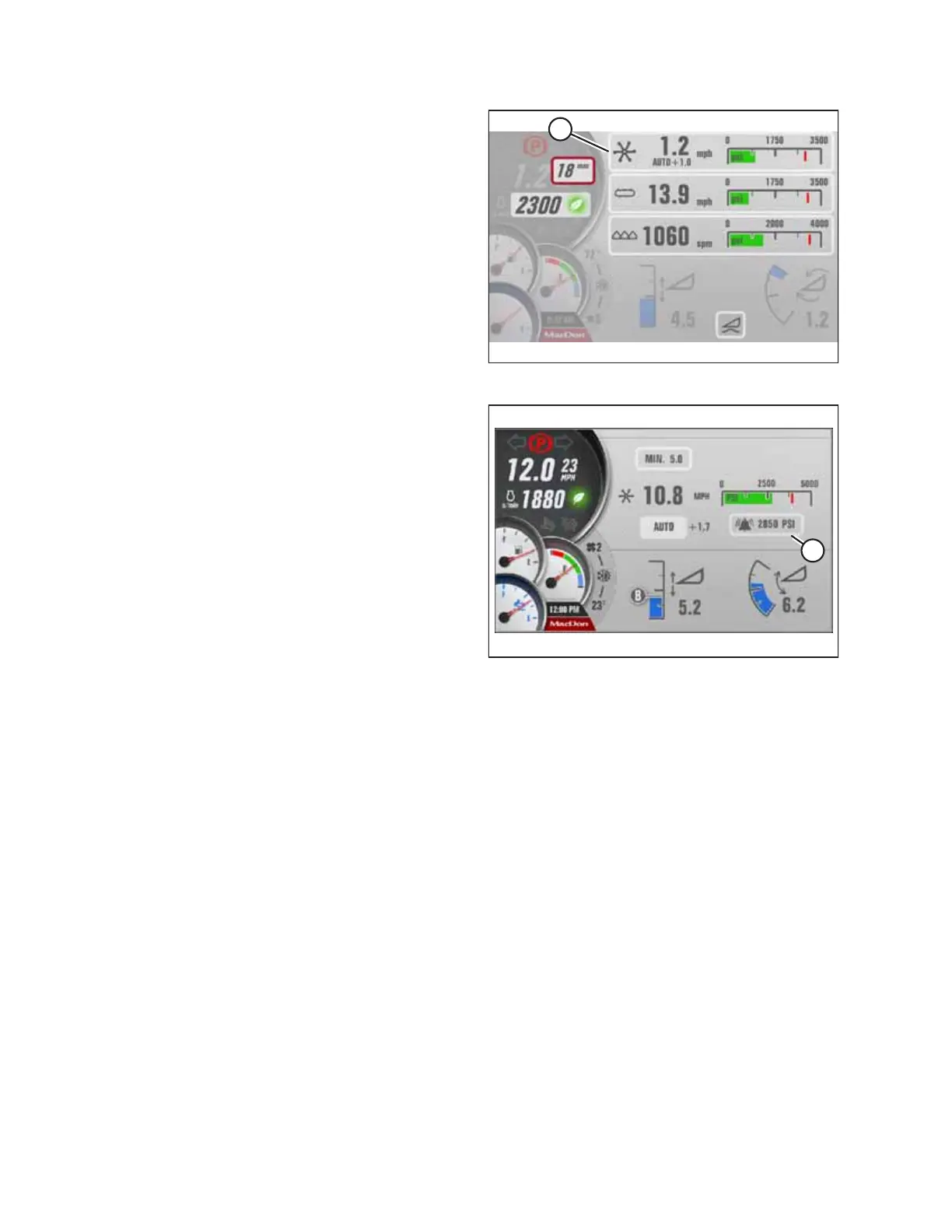

Figure 4.207: Header QuickMenu
3. Turn the knob to scroll to REEL setting (A) on QuickMenu,
and press the knob to select it. The next page opens.
Figure 4.208: Draper Header Reel Page
4. Turn the scroll knob to highlight reel pressure ALARM (A),
and press the knob to select it.
5. Turn the knob to change the ALARM set-point in
window (A). Scrolling past the highest setting turns the
alarm off. When the alarm point is off, the digital value is
replaced with three dashed lines.
6. Adjust the reel alarm pressure set-point to the
desired value, and press the knob to select it.
NOTE:
The factory setting is 19,995 kpa (2900 psi).
4.7.6 Adjusting Draper Speed
Draper speed is displayed in mph or km/h (depending on the global units selection); the default is rpm, and can be set to
auto or manual mode.
• AUTO mode: Draper speed is maintained relative to ground speed. For instructions, refer to Setting Draper Speed in
Auto Mode, page 213.
• MANUAL mode: Draper speed is manually set and is maintained independently of ground speed. For instructions, refer
to Setting Draper Speed in Manual Mode, page 214.
NOTE:
Both speed modes work with the One-Touch-Return feature. For example, button A on the GSL can be set for MANUAL
mode and button B can be set for AUTO mode. For instructions, refer to One-Touch-Return Buttons, page 77.
