MacDon M1170NT5 - Using Electronic Maintenance Tool

215922 238 Revision A
5.2.3 Using Electronic Maintenance Tool
The Electronic Maintenance Tool contains a list of items requiring service after 250 hours or more of windrower operation.
1016058
A
B
C

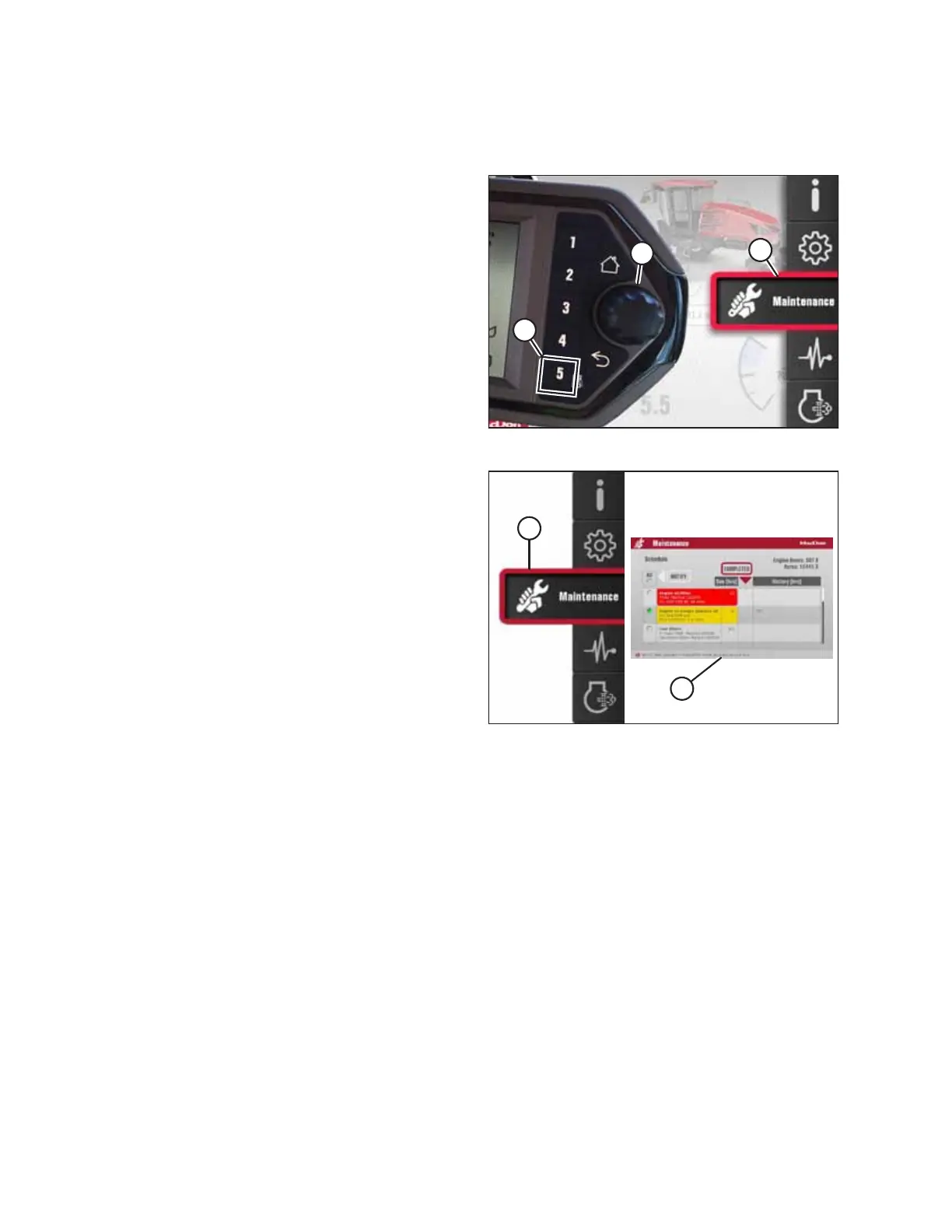

Figure 5.1: Opening the Main Menu
1. Press soft key 5 (A) to display the main menu.
2. To select MAINTENANCE icon (C), use Harvest Performance
Tracker (HPT) scroll knob (B) or the ground speed lever
(GSL) scroll wheel (not shown).
3. Press HPT scroll knob (B) or the GSL SELECT button (not
shown) to select the icon.
1016133
A
B
Figure 5.2: Maintenance Icon and Menu
4. Select MAINTENANCE icon (A) to open maintenance
menu (B). The following information can be viewed:
• Completed maintenance
• Selected maintenance notifications
• Maintenance log
MAINTENANCE AND SERVICING
