MacDon M1170NT5 - Harvest Performance Tracker Screen Layout - German Export Only

215922 163 Revision A
4.4.3 Harvest Performance Tracker Screen Layout – German Export Only
The appearance and functions of the Harvest Performance Tracker (HPT) depend on the type of header attached.
1022069
A
B
C
D

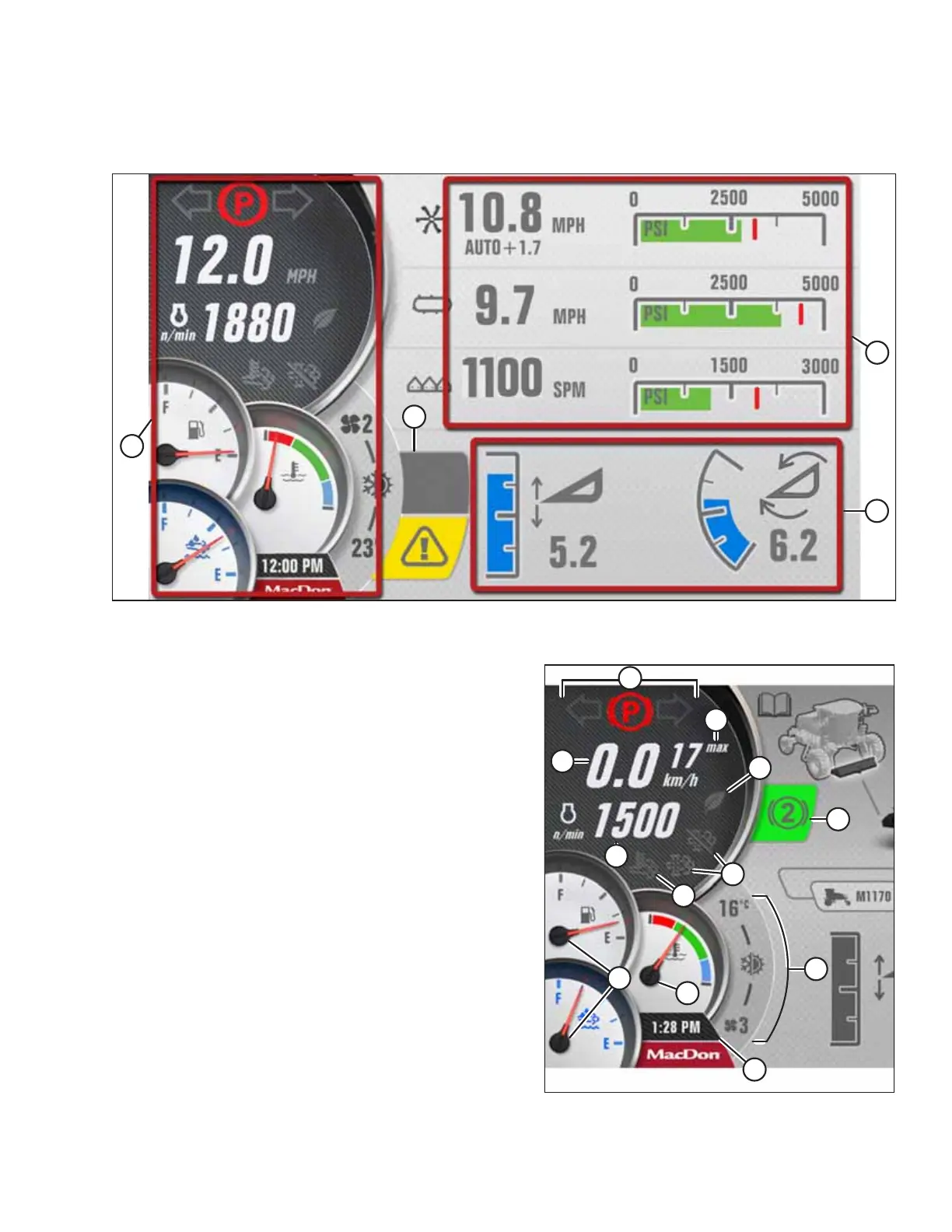

Figure 4.92: Run Screen 1 – Draper Header Shown
A - Left Gauge Cluster B - Header Information C - Current Header Position D - Telltales
ϭϬϯϳϱϮϭ
A
B
C
D
E
F
H
J
K
M
G
L
Figure 4.93: Left Gauge Cluster
The HPT display is separated into the following zones:
Left gauge cluster:
• Ground speed (A)
• Maximum ground speed (B)
• Engine rpm (C)
• Eco engine control (EEC) active/inactive (D)
• High exhaust system temperature (HEST) light (E)
• Inhibit status (F)
• Park and turn signal status (G)
• Secondary brake system (H)
• Level gauges for fuel and diesel exhaust fluid (DEF) (J)
• Coolant temperature gauge (K)
• Climate control temperature and blower speed (L)
• Current time (M)
