4.4 M1170NT5 German Export Only – Features and Operation
M1170NT5 windrowers that are exported for sale in Germany have features required to comply with German regulations.
4.4.1 Emergency Stopping - German Export Only
A secondary braking system is fitted to M1170NT5 Windrowers exported to Germany. The system can only be engaged with
the windrower in the engine-forward mode.
ϭϬϯϳϰϯϯ
A

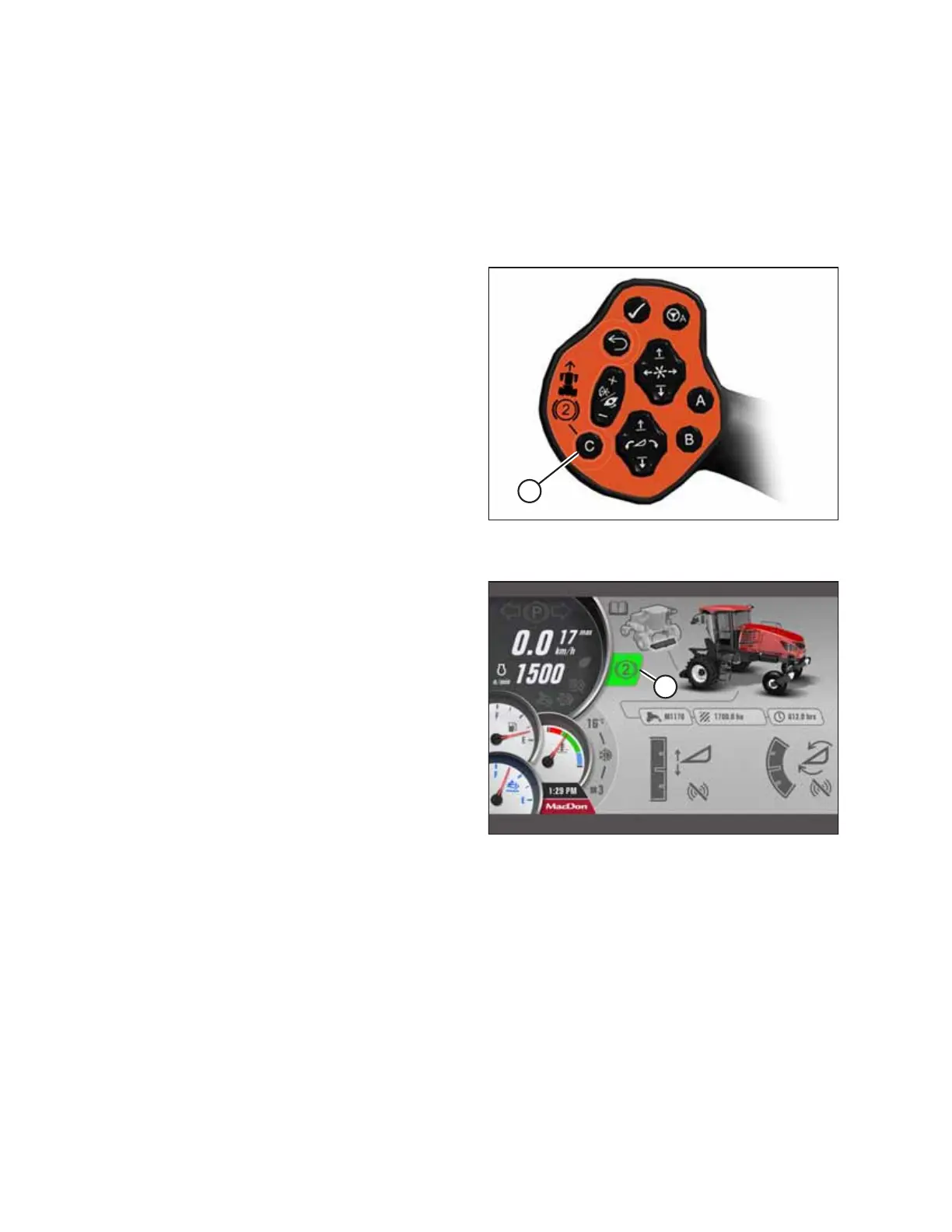

Figure 4.86: Secondary Brake System Enable Button –
German Export Only
1. In the unlikely event of a primary braking system failure
while operating in engine-forward mode, enable the
secondary disc brake system by pressing BUTTON C (A) on
the ground speed lever (GSL) and then gradually moving
the GSL back to the neutral position.
NOTE:
• Once the secondary brake system is enabled, the disc
brakes will actuate in proportion to the movement of
the GSL back to neutral.
• If the GSL is moved forward with the secondary brake
enabled, the brakes will release.
• The secondary brakes will remain on until the GSL is
moved to PARK and the secondary brake button (A) is
pressed to deactivate the system.
ϭϬϯϳϰϯϲ
A
Figure 4.87: Secondary Brake System Icon – German
Export Only
NOTE:
When enabled, secondary brake system icon (A) appears on
the Harvest Performance Tracker (HPT) display.
OPERATION
