215922 260 Revision A
Relay Modules
Relay modules contain electronic switches that are turned on/off by the master controller.

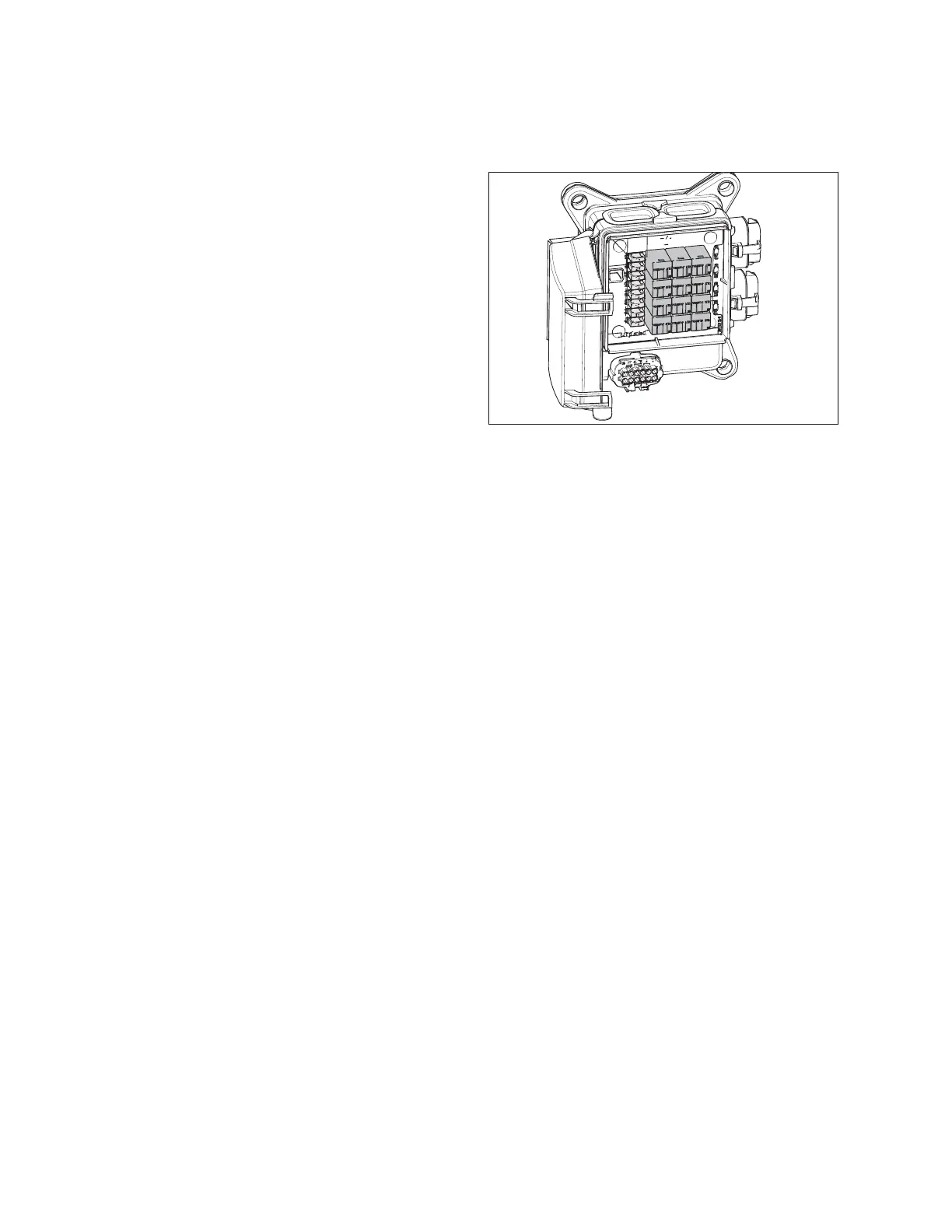

Figure 5.30: Chassis Relay Module
The M1170NT5 Windrower has two relay modules. One is
located on the chassis and the other inside the cab headliner.
There are fuses and relays located in both relay modules.
The chassis relay module is located on the left (cab-forward)
frame rail.
MAINTENANCE AND SERVICING
