MacDon M1170NT5 - Setting Draper Speed in Auto Mode

215922 213 Revision A
Setting Draper Speed in Auto Mode
This adjustment requires the header to be in operation.
1019554
A

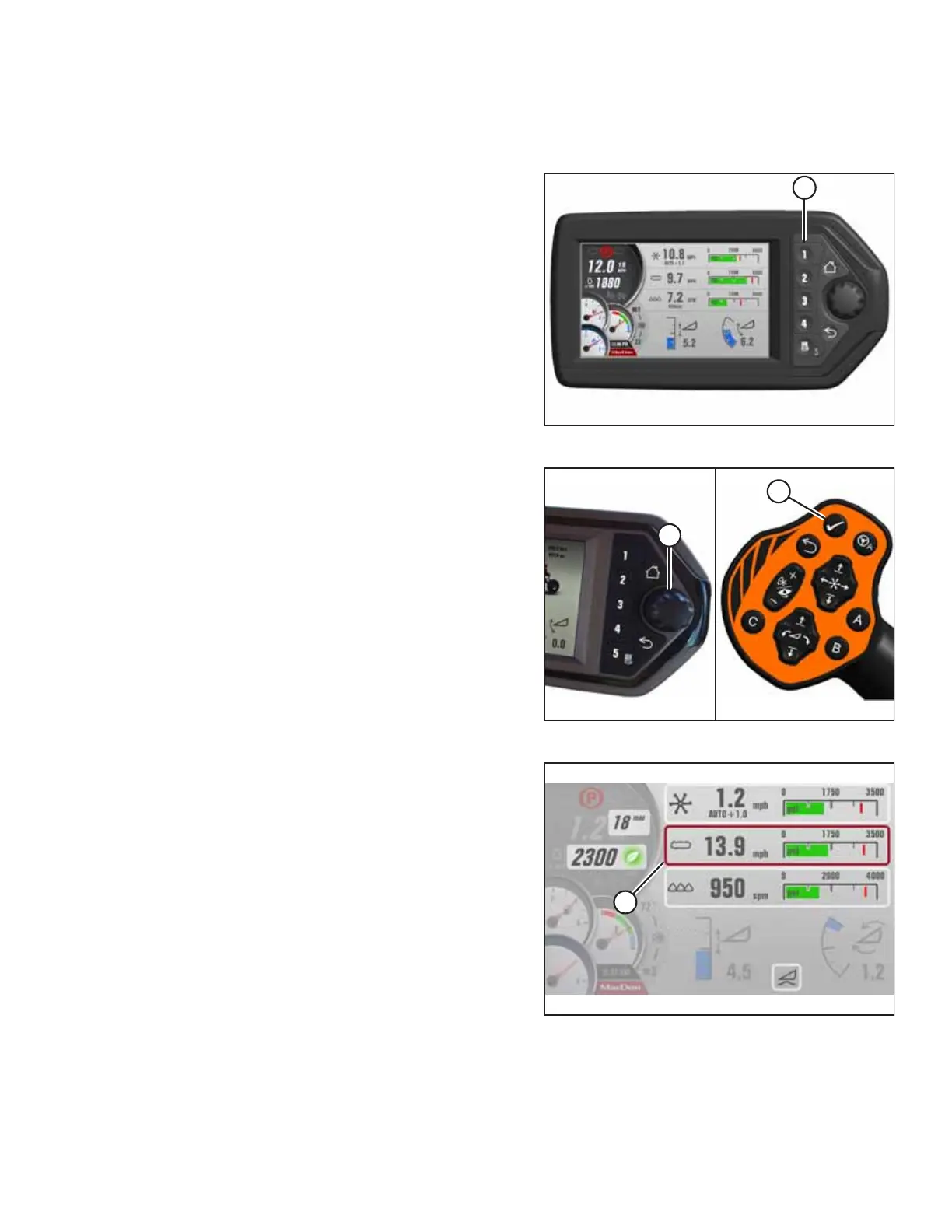

Figure 4.209: Header Run Screen 1
1. If RUN SCREEN 1 is not already displayed, press soft
key 1 (A) on the Harvest Performance Tracker (HPT) to
display draper RUN SCREEN 1.
1019523
A
B
Figure 4.210: HPT Scroll Knob and GSL Select Button
2. Press scroll knob (A) on the Harvest Performance Tracker
(HPT) or SELECT button (B) on the ground speed lever (GSL)
while in any run screen to display the QuickMenu system.
1019596
A
Figure 4.211: Header QuickMenu
3. Turn knob and scroll to DRAPER setting (A) on the
QuickMenu, and press the knob to select it. The next
page opens.
