IMPORTANT:
• Keep hydraulic coupler tips and connectors clean. Dust, dirt, water, and foreign material are the major causes of
hydraulic system damage.
• DO NOT attempt to service hydraulic system in the field. Make every effort to prevent the hydraulic system from being
contaminated during overhaul.
5.7.7 Checking Engine Gearbox Lubricant Level and Adding Lubricant
Ensure that the gearbox lubricant level is correct in order to maximize the service life of its components. Check the
lubricant level daily.
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
CAUTION
Park on a flat, level surface with the header on the ground, the ground speed lever (GSL) in the PARK position, and the
steering wheel in the locked position (centered). To confirm that the parking brake is engaged, wait for the HPT to beep
and display a red P symbol.
1. Park the windrower on a level surface.
2. Shut down the engine, and remove the key from the ignition.
NOTE:
If the engine is hot, wait 10 minutes before checking the gearbox lubricant level to allow the lubricant to cool and
settle in the gearbox’s sump.
3. Open the hood. Refer to the operator’s manual for instructions.

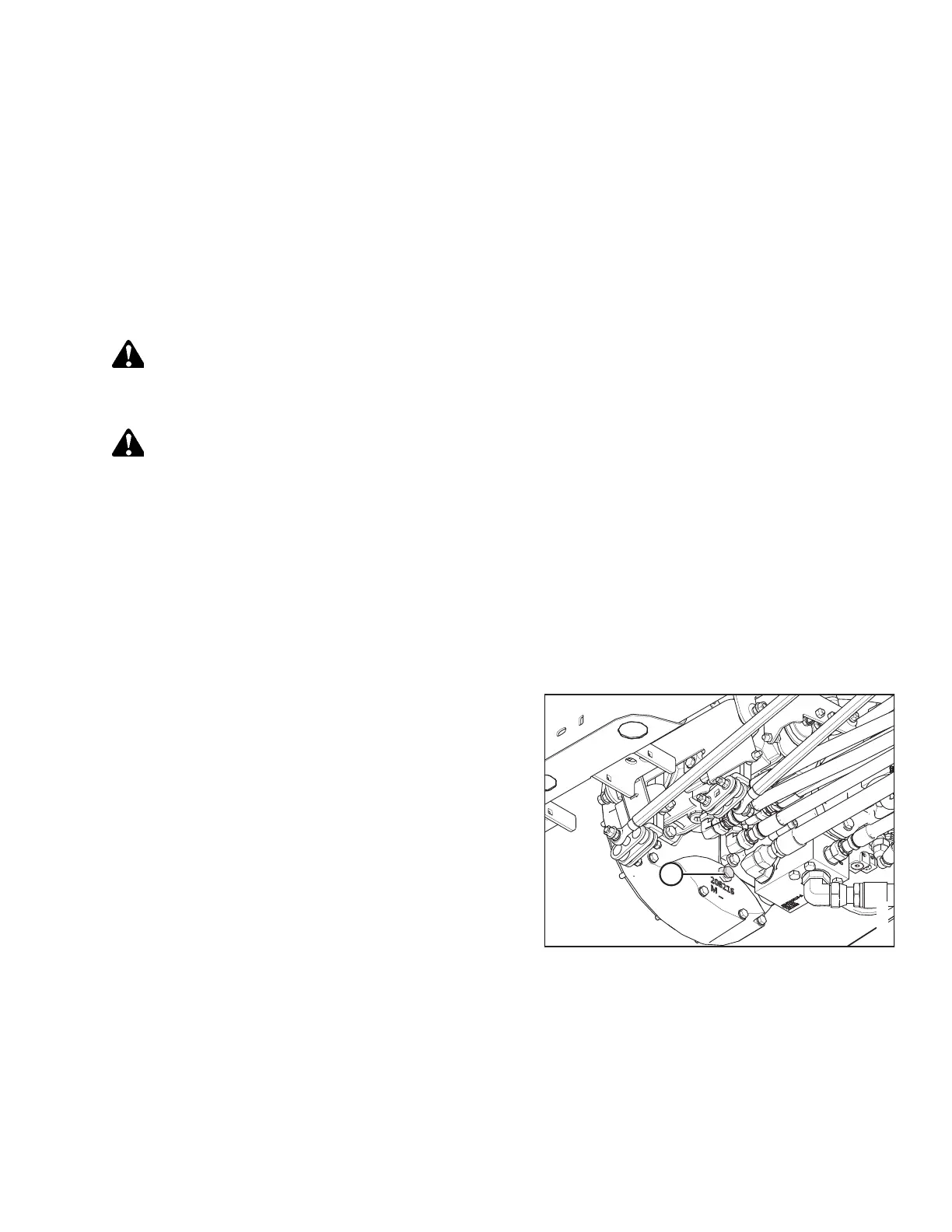

Figure 5.56: Gearbox Lubricant Check Plug
4. Locate gearbox oil level check plug (A) under the
windrower.
5. Remove oil level check plug (A). The lubricant should be
visible through the hole. Some lubricant may leak from the
level check port.
