3.16.4 Console Header Buttons
Buttons to control header functions are located on the console.
1016209
A

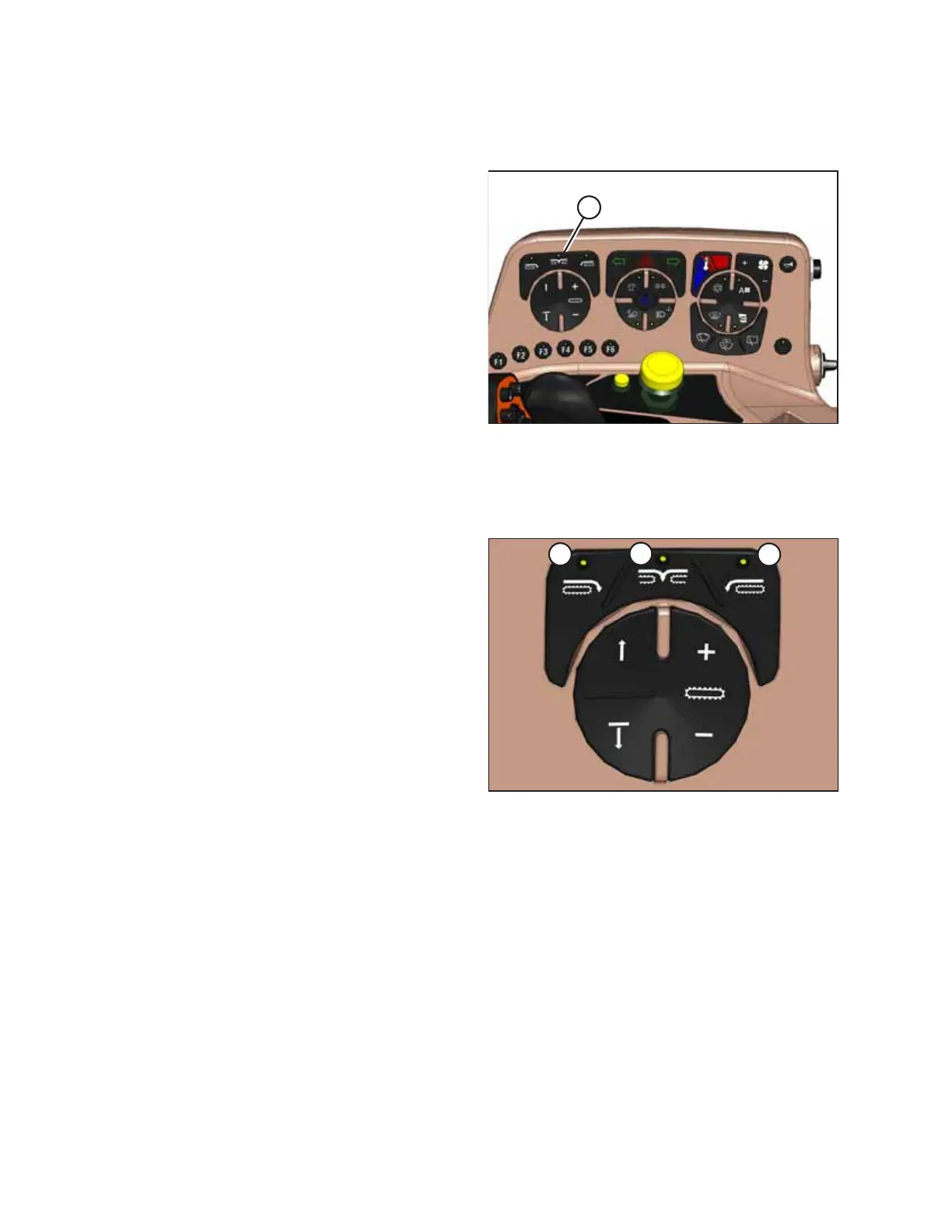

Figure 3.65: Console Header Buttons
Console header buttons (A) adjust the following header
functions:
• Deck shift/float preset
• Draper speed
• Double windrow attachment (DWA) or swath compressor lift
functions
Deck Shift / Float Presets
Buttons to control header functions are located on the console.
1014967
A
B
C
Figure 3.66: Header Deck Shift Buttons
A - Right-Side Delivery B - Center Delivery
C - Left-Side Delivery
Draper header with deck shift option:
• Controls the draper deck position for double windrowing
with a draper header.
• Set header float for each deck position. For instructions,
refer to Setting Float, page 191.
NOTE:
The last float setting used in any deck shift position will be stored
into memory automatically.
