MacDon M1170NT5 - Header Position Six-Way Switch

215922 75 Revision A
1016093
A
B

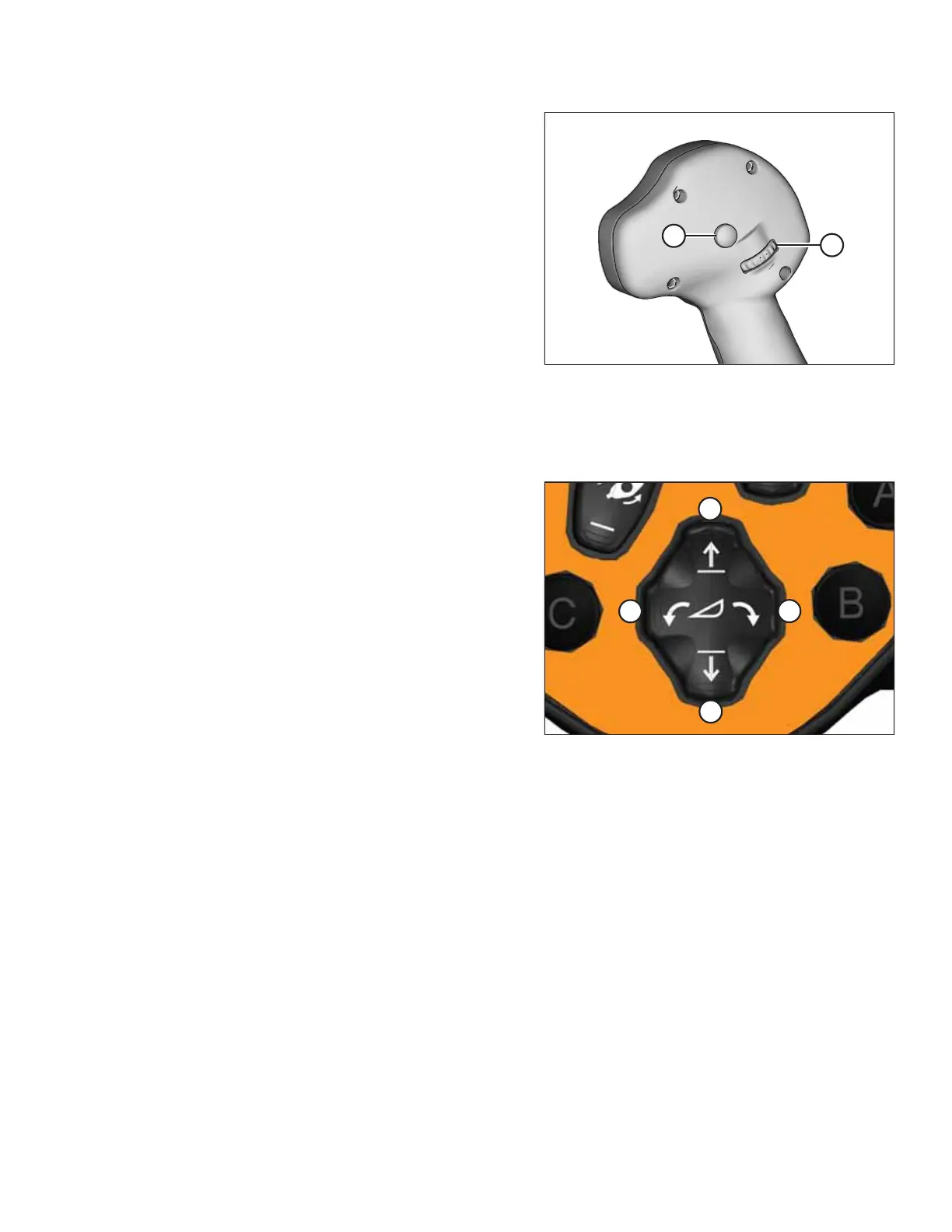

Figure 3.59: GSL Function Groups
GSL controls — rear
• Shift switch (A)
• Scroll wheel (B)
NOTE:
When the shift switch is used with another button it performs
the following shortcut functions:
• SHIFT + BACK – Home page
• SHIFT + SELECT – Main menu access
• SHIFT + SCROLL – Adjust maximum ground speed
Header Position Six-Way Switch
The six-way switch on the ground speed lever (GSL) raises, lowers, and tilts the header.
1012760
A
B
C
D
Figure 3.60: Ground Speed Lever
• To lower the header slowly, press (A) lightly
• To lower the header quickly, press (A) fully
• To raise the header slowly, press (C) lightly
• To raise the header quickly, press (C) fully
• To tilt the header downward, press (B)
• To tilt the header upward, press (D)
Release the switch when the header is at the desired position.
NOTE:
The header raise and lower rates are adjustable on the harvest
performance tracker (HPT) display. For instructions, refer to 4.6.8
Adjusting Header Raise and Lower Rates, page 200 or header
setup in Menu Icons, page 88.
NOTE:
For detailed switch operating modes, refer to the section in this manual that is specific to your header.
OPERATOR’S STATION
