MacDon M1170NT5 - Windrower Dimensions

215922 35 Revision A
2.3 Windrower Dimensions
When transporting a windrower, it is sometimes important to know that windrower’s outside dimensions.
G
H
K
J
D
E
F
A
B
C
1016012

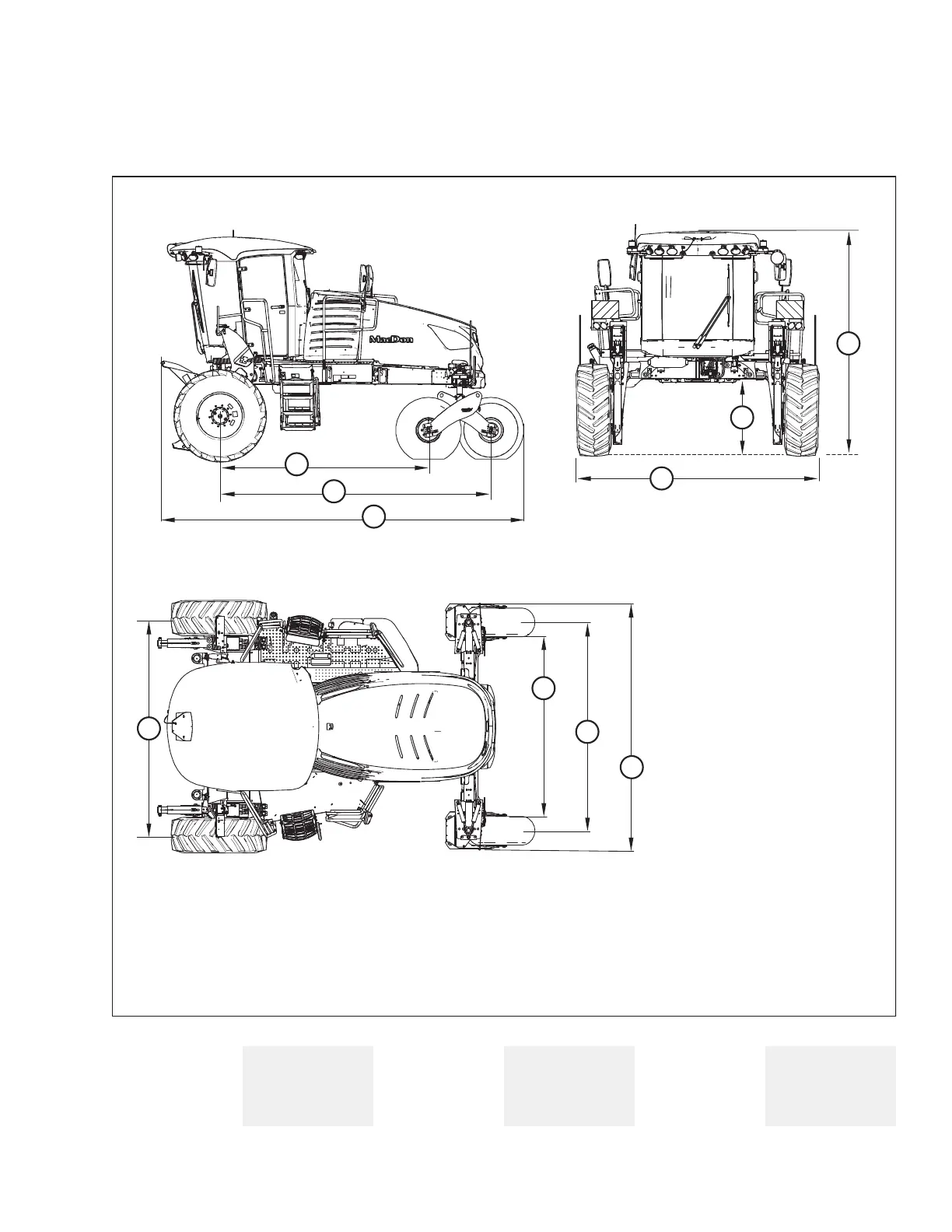

Figure 2.2: Windrower Dimensions
Field Road Field Road Field Road
— A - 3300 mm (130 in.) B - 4290 mm (168 7/8 in.) — C - 5752 mm (226 7/16 in.) C - 5140 mm (202 3/8 in.)
D - 3834 mm (150 15/16 in.) D - 3489 mm (137 23/64 in.) E - 1150 mm (45 9/32 in.) — F - 3480 mm (137 1/32 in.) —
G - 3294 mm (129 11/16 in.) G - 2934 mm (115 1/2 in.) H - 3412 mm (134 1/3 in.) H - 2170 mm (85 7/16 in.) J - 3846 mm (151 7/16 in.)
(Max)
—
K - 4403 mm (173 11/32 in.) K - 3162 m m (124 1/2 in.) ————
