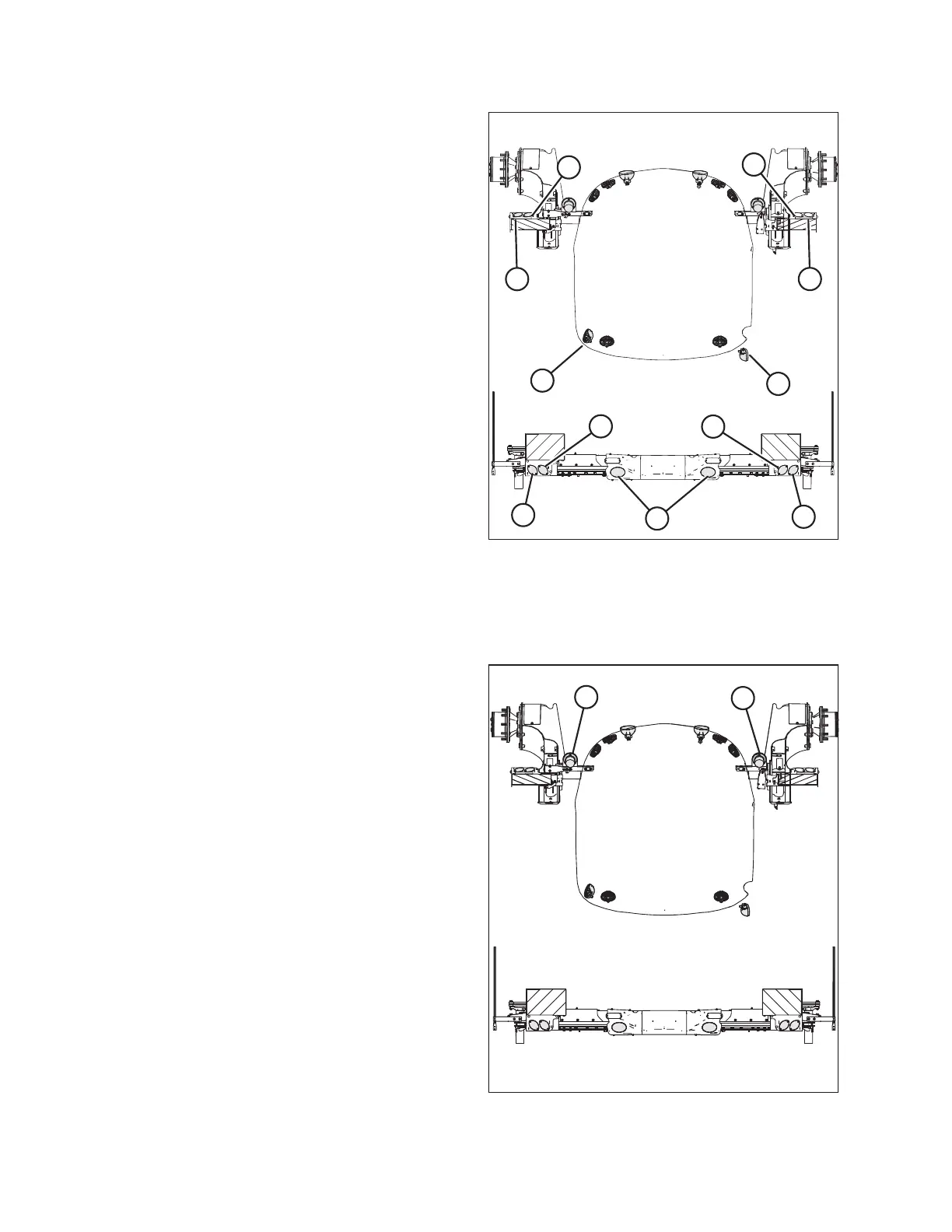

Figure 3.27: Windrower Lighting – Top View
• Engine-forward headlights (A) with low/high beams
• Red taillights (B) on front and rear placards
• Amber turn signals and hazard lights (C) on front and
rear placards
• Work lights (D) turn on only when high beams are
activated in engine-forward mode
• Marker Lights (E)
NOTE:
To align headlights (A), refer to Aligning Headlights –
Engine-Forward, page 340.
3.7.4 Tail/Beacon Lighting
Beacons and tail lights are used in road travel to alert other drivers.
1034162
A
A
Figure 3.28: Windrower Lighting – Top View
Beacons (A) are activated when the IGNITION is ON and
BEACON button (B) is selected.
NOTE:
In some areas, the law requires the use of beacon lights when
driving on the road.
OPERATOR’S STATION
