3.14 Engine Controls
1016204
A
B
C
D

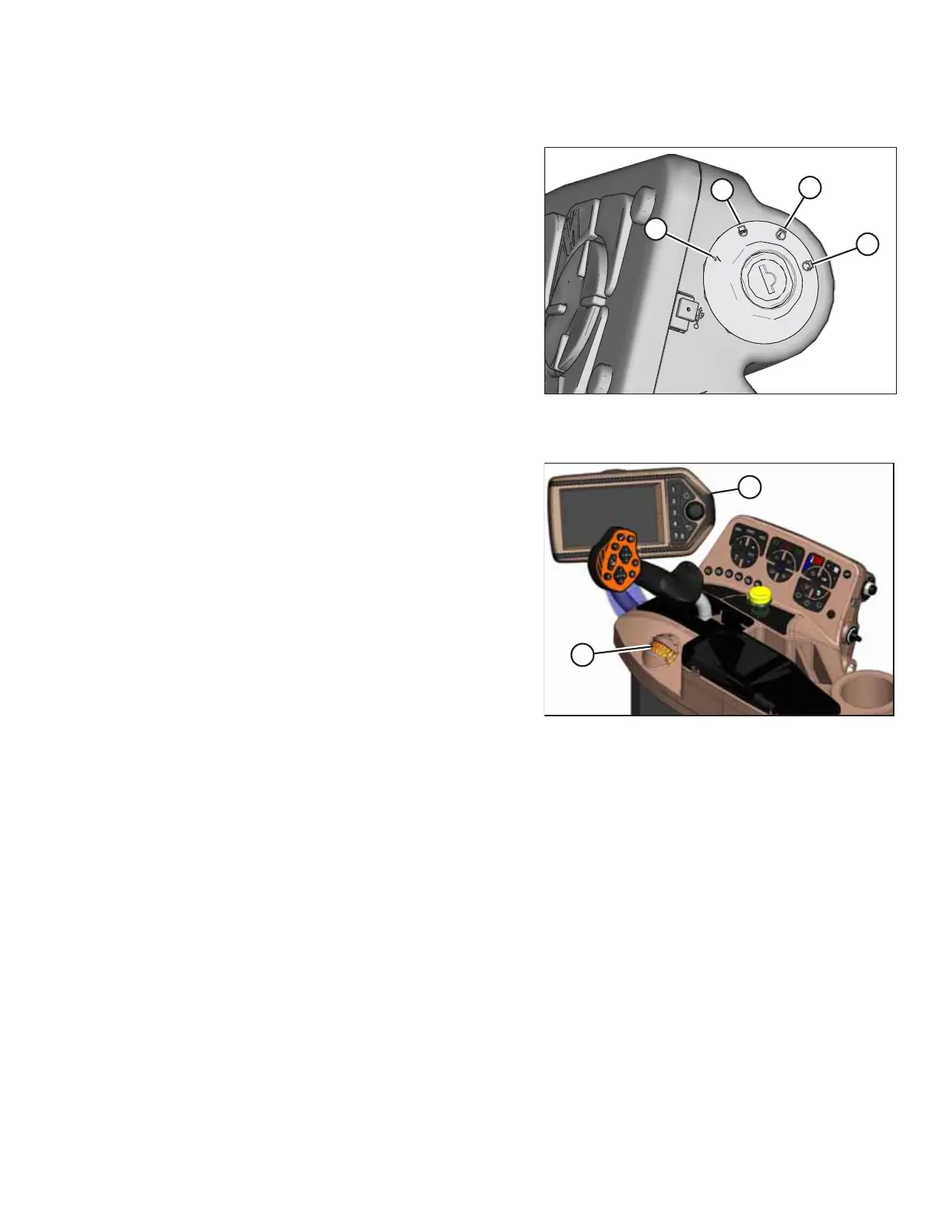

Figure 3.50: Ignition Switch on Operator’s Console
The following engine controls are located on the operator’s
console.
Ignition switch
• ACC (A): The windrower’s electrical accessories are
turned ON without starting the engine
• OFF (B): All electrical systems are OFF
• RUN (C): Engine run position
• START (D): Turn fully clockwise to crank the engine, and
release to return the switch to RUN position
IMPORTANT:
Remove the ignition key when the windrower is not in use. The
ignition key also locks the doors and the tool box in the left
platform.
1012732
A
B
Figure 3.51: Engine Controls
Throttle (A)
Controls the engine speed range
• MAX: Push the lever forward
• MIN: Pull the lever back
Harvest Performance Tracker display (B)
• Fuel level monitoring
• DEF level monitoring
• High exhaust system temperature (HEST) indicator
• Exhaust system cleaning inhibit and forced indicator
• Speed monitoring (ground, engine, knife/disc, reel,
conveyor, and cooling fan)
• Pressure monitoring (knife, reel, conveyor, and supercharge)
• Engine parameters (coolant temperature, fuel consumption, and engine load)
• Header position
For more information on the Harvest Performance Tracker, refer to 3.17 Harvest Performance Tracker Display, page 81.
