MacDon M1170NT5 - Replacing Headlight Bulb - Engine-Forward

215922 347 Revision A
1015861
B
A

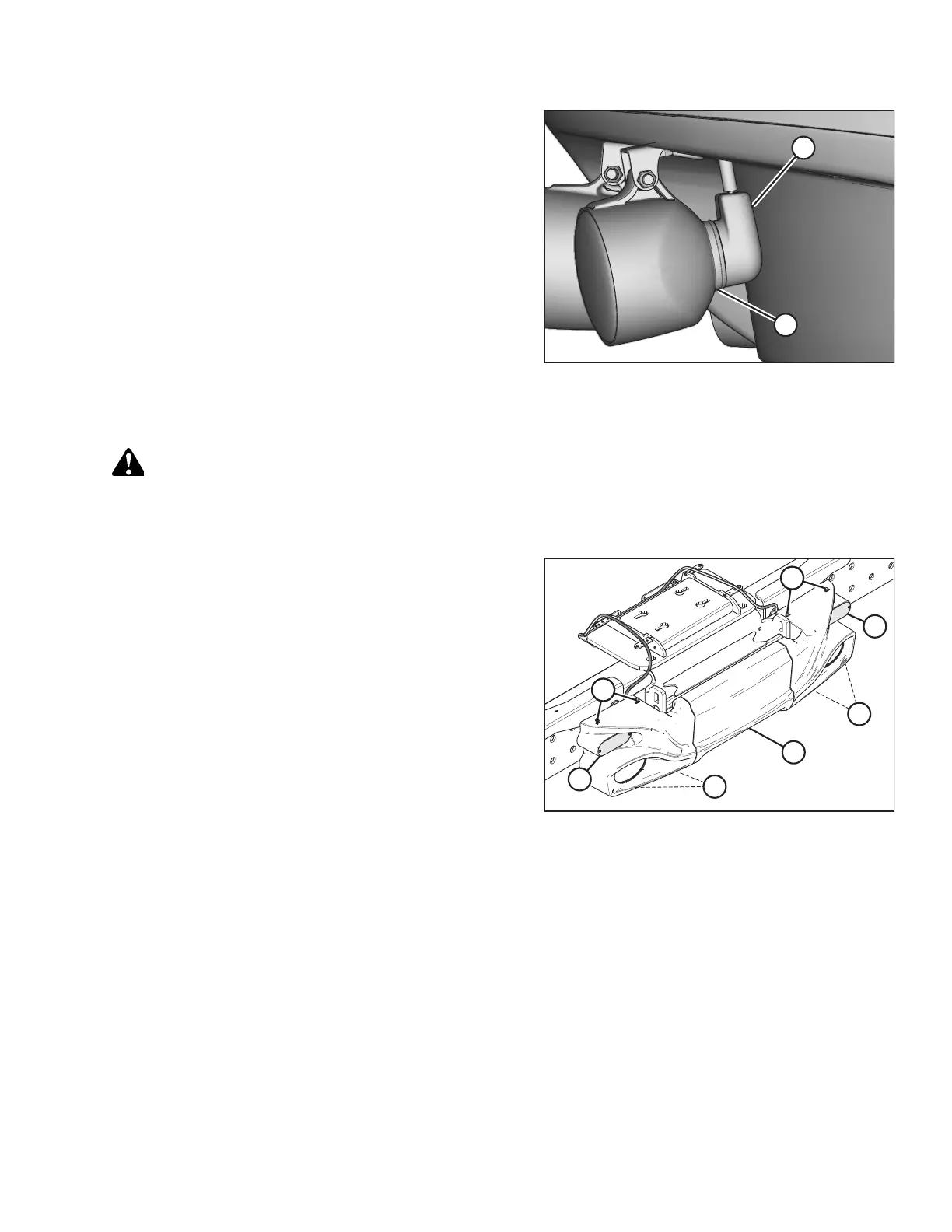

Figure 5.185: Front Work Light
2. Disconnect wiring harness (A).
3. Remove rubber insulator boot (B).
4. Remove the bulb from the body.
IMPORTANT:
Do NOT touch the glass of the halogen bulb as the oils or
other chemicals from your skin will cause the bulb to fail
prematurely.
5. Align the lugs on the new bulb with the slots in the housing
and push the bulb into place.
6. Install insulator boot (B) and wiring harness (A).
Replacing Headlight Bulb – Engine-Forward
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
1. Shut down the engine, and remove the key from the ignition.
1015802
AA
AA
B
C
C
A
A
Figure 5.186: Headlight Bezel Assembly
2. Remove eight hex flange bolts (A), then remove headlight
bezel assembly (B). Retain the hardware.
3. Remove the electrical connectors from red tail lights (C) to
fully remove bezel (B).
NOTE:
Not applicable to the M1170NT5 bezel configuration.
