MacDon M1170NT5 - Page 302

215922 282 Revision A
Walking Beam and Drive Wheel Leg Extensions
1034200
A
A
B
B
C
D
E
F
E
F

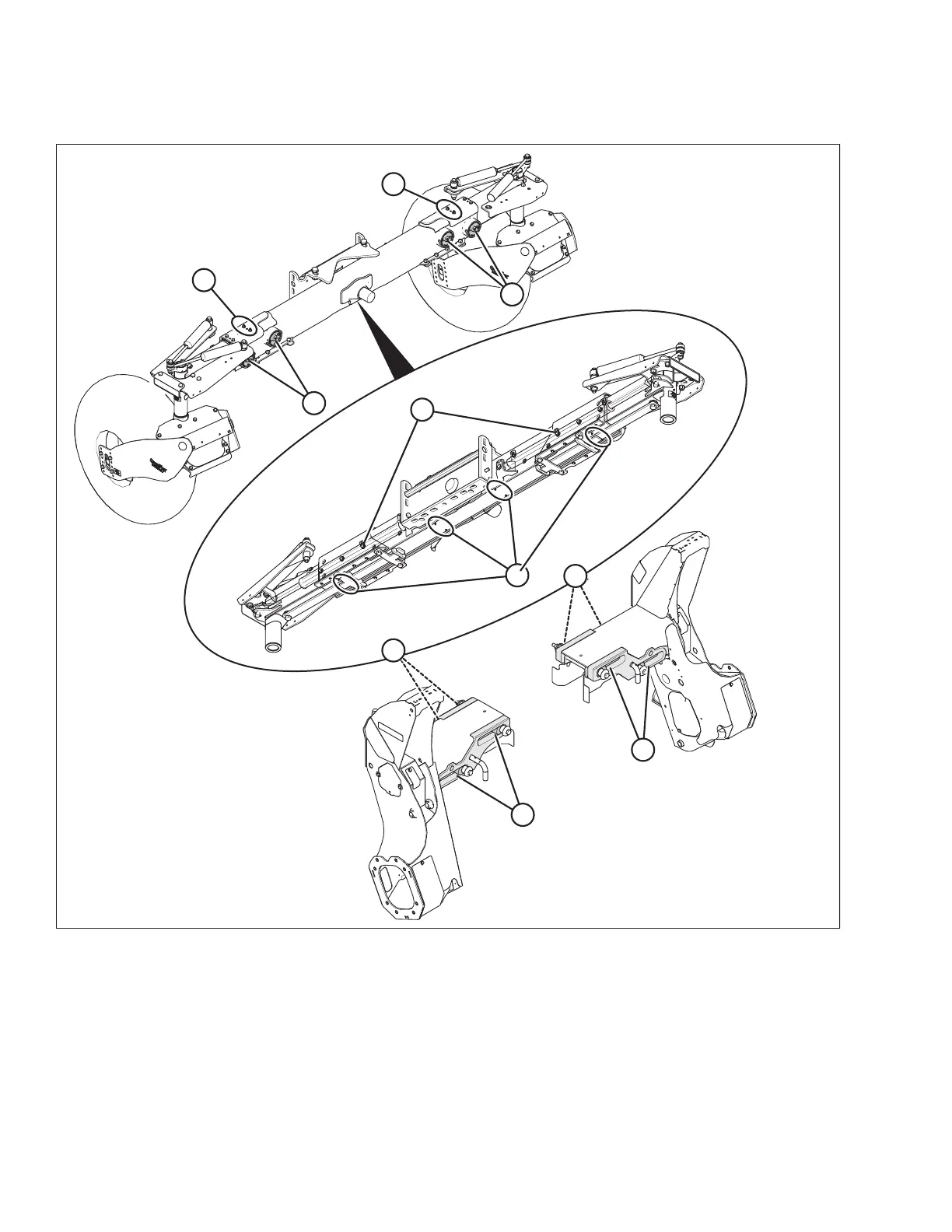

Figure 5.68: Wheel Extension Grease Points
A - Walking Beam – Top Side (2 Places) (Both Sides) B - Walking Beam – Inward Facing (2 Places) (Both Sides)
C - Walking Beam – Outward Facing (2 Places) D - Walking Beam – Underside (8 places)
E - Drive Wheel Legs – Inboard Bushings, Top Surfaces (2 Places) (Both Sides) F - Outboard Front Bushings, Bottom Surfaces – Drive Wheel Legs (2 Places)
(Both Sides)
IMPORTANT:
Grease the sliding drive wheel legs in the narrow position every 250 hours or annually. For moly grease specification, refer
to the inside back cover.
MAINTENANCE AND SERVICING
